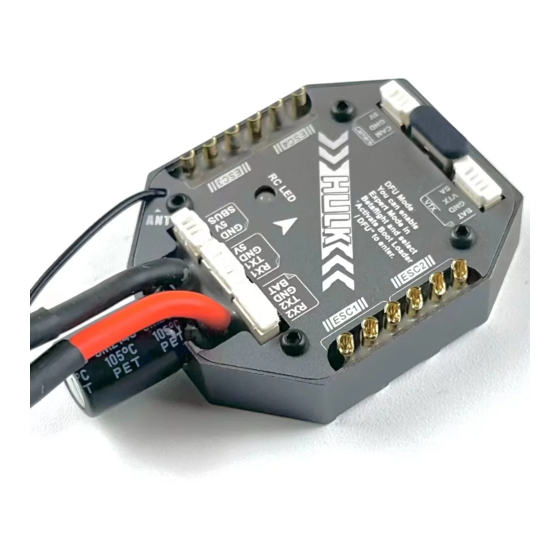

Summary of Contents for Darwin HULKAIO
- Page 1 DARWIN HULK AIO 使用说明书 DARWINFPV 官网：https://www.darwinfpv.com...
- Page 2 感谢您购买 DarwinFPV 的产品。操纵穿越机需要一定专业性技能，会有一定危险性，请 您务必确保周边环境和自身安全的情况下谨慎使用。我们对于产品使用不当、未注意安全或因 违法飞行导致的损失或伤害不承担任何责任。祝您有一个愉快的飞行体验！...
- Page 3 基 本 配 置 参 数 EFM8BB21F16G DARWIN_HULK_AIO FC MCU ESC MCU STM32F411CEU6(100MHz) 3-6S LiPo Input MPU6500 Voltage Continuous Betafight OSD AT7456E Current SX1281(2.4GHz) MAX Current RF Chip (5 Seconds) J_H_40 Firmware Betaflight__DARWINF4SX12 ESC Target Target BEC Output 5V/0.5A x 3 & BAT/0.75A x 2 2x Uarts(1,2) 1x SOFTSERIAL Port Resources...
- Page 6 产 品 尺 寸 注 意 事 项 ①海水具有很强的腐蚀性，此 AIO 不推荐用于海水环境，一旦落入海水中请立即使用淡水清洗。 ②AIO 支持 3-6S 电池，切记不得将电池接反，否则会烧坏 AIO。 ③收到产品后先进入 Betaflight 查看是否有检测陀螺仪和加速度计，以及陀螺仪姿态是否正常。 ④在 Betaflight 中拉动油门，确保四个电机正常转动包括电机转向正确，再装桨试飞；拉油门时务必卸桨，以免发生重大 事故。 确认以上注意事项无任何产品问题即可装桨开始爽飞!
- Page 7 对 频 将 AIO 接入电脑连接 Betafight ，进 指示灯状态 含义 入接收机配置页面，在页面右下角点击 绿灯常亮 连接成功 “接收机对频”，此时 AIO 的接收机绿 绿灯快闪 已进入对频模式 色指示灯会从慢闪变成快闪， 代表已进入 无 TX 模块信号连接 绿灯慢闪 接收机对频模式。 注意： 对频成功后接收机指示灯会由 快闪变为慢闪， 表示对频成功， 稍等片刻 指示灯会变为常亮， 代表连接成功， 对频 成功后接收机会记住对频信息， 以后重启 会自动连接，无需重新对频； Betafight 4.3 固件仅支持 ELRS_V2.x 版本高频头。...
- Page 8 故 障 快 速 排 查 故障现象 可能造成的原因 故障判定方法 解决方法 上电无任何 电池没电 更换电池后能正常启动飞行 更换确定没问题的电池 反映 1 、电机摔坏 1 、用手转动电机，能明显感觉卡顿 1 、更换电机 电机抖动，无 2、电机线未焊接牢靠 2、重新焊接电机线 2、重新焊接电机线 法正常旋转 1 、未设置解锁通道 1、通过 Betaflight 进入模式查看通道 1、设置解锁通道 （接收机已对频） 2、通过 Betaflight 进入接收机界面 无法解锁 2 、遥控器与接收机未 2 、接收机对频 检查拨杆有无反应...
- Page 9 更多有关 AIO 的固件、CLI、配置文件、最新的说明书等及更详细的配置教程，请到 DARWINFPV 官网支持下获取。 DARWINFPV 官网：https://www.darwinfpv.com 售 后 服 务 关于退款：直接从 DarwinFPV 购买得新/未开封/未使用的产品可在 20 天内无条件退回，客户需自己 承担退回运费，如退回产品丢失或已打开使用、损坏或缺少配件，则不会无条件退款。 关于保修：如果 DarwinFPV 确定相关问题不在保修范围内，我们将提供折扣服务用于订购新产品的 更换，不支持免费换新。 不支持保修的情况： 1. 飞行员的失误导致的炸机或火灾损坏； 2. 因焊接失误、安装和使用不当而造成的损坏； 3. 擅自修改电路以及电池和充电器不匹配造成的损坏； 4. 长期使用导致的组件老化或碰撞造成的损坏； 5. 由于进海水导致的飞机故障。 联 系 方 式 support@darwinfpv.com @DarwinFPV sales@darwinfpv.com...
- Page 10 DARWIN HULK AIO USER MANUAL DarwinFPV official website: https://www.darwinfpv.com...
- Page 11 Thank you for purchasing DarwinFPV products. Flying an fpv racing drone requires certain professional skills and will be dangerous. Please use it with caution while ensuring the surrounding environment and your own safety. We are not responsible for any loss or injury caused by improper use of the product, failure to pay attention to safety or illegal flying.
-
Page 12: Specifications
SPECIFICATIONS DARWIN HULK AIO FC MCU ESC MCU STM32F411CEU6 (100MHz) EFM8BB21F16G MPU6500 Input Voltage 3-6S LiPo Continuous Betaflight OSD AT7456E Current MAX Current RF Chip SX1281 (2.4GHz) (5 Seconds) FirmwareTarget Betaflight_DARWINF4SX1280 ESC Target J_H_40 BEC Output 5V/0.5A x 3 & BAT/0.75A x 2... - Page 15 DIMENSIONS...
- Page 16 CAUTIONS Seawater is highly corrosive, it is not recommended for use in ① seawater. Please wash with fresh water immediately and then dry it once drone touched seawater. ② Support 3-6S battery, remember not to plug the battery positive and negative interface in reverse, otherwise it will burn out.
- Page 17 PAIRING RC LED Status Receiver Mode Connect to computer by USB-C cable, open the Betafight software and click “connect” button, Green Light Stays On Paired enter the receiver configure page, and click "Bind Receiver" button. At the same time, the green Green Light Fast Flashing In Pairing Mode receiver led indicator (I.E.
-
Page 18: Troubleshooting
TROUBLE SHOOTING Phenomenon Troubleshooting Possible Reason Solutions Methods after replacing the new power battery is No response after battery, drone can be replace battery power on dead started normally 1.turn the motor by hand, 1. the motor is you can obviously feel 1.replace the motor The motor vibrates broken... - Page 19 incorrectly to AIO or camera to the AIO connecting the camera loose joint to the AIO on page 4 of the manual Video transmitter OSD is not set up set up OSD set up OSD without OSD, but has image 1.
-
Page 20: After Sales Service
AFTER-SALES SERVICE About Refunds: new/unopened/unused products purchased directly from DarwinFPV can be returned unconditionally within 20 workdays, and the customer is responsible for the return shipping cost. If the returned product is lost or opened for use, damaged or missing accessories, it will not be unconditional Refund. About Warranty: If DarwinFPV determines that the problem is not covered by warranty, we will provide a discount for ordering new product replacement, and do not support free replacement.
