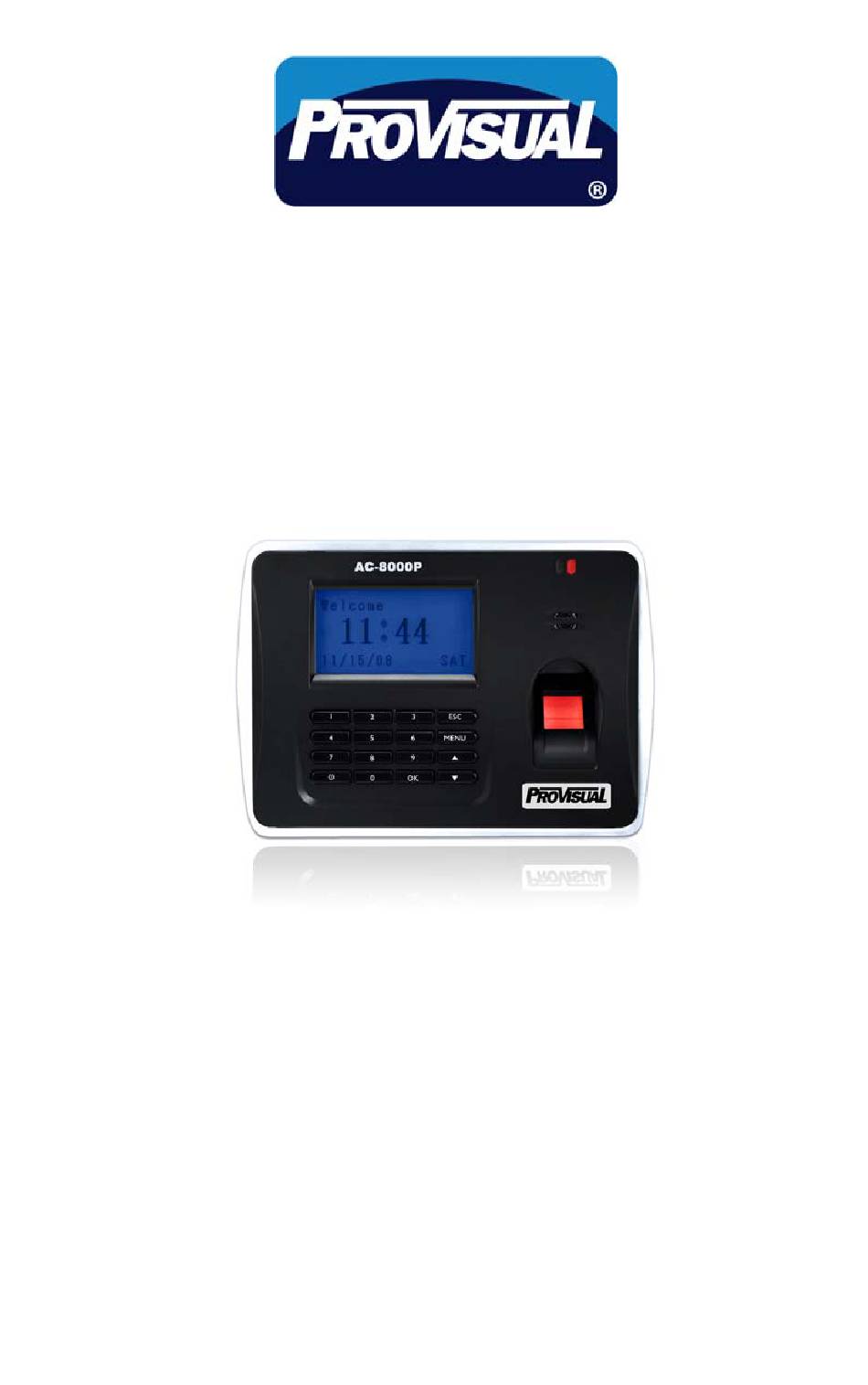

  • Page 1 ProVisual AC-8000P User Manual For the optimal use and maintenance of the product, Please read the manual carefully before using it.

  • Page 2: Table Of Contents

    Fingerprint Time Attendance Terminal Manual Table of Content Chapter One Handling Instruction ............... 3 1.1 Operation Environment ..................3 1.2 A Brief Introduction for the System ..............3 1.3 Press Method ....................3 Chapter Two Basic Functions ................5 2.1 Keyboard ......................5 2.2 Menu ........................

  • Page 3: Chapter One Handling Instruction

    Fingerprint Time Attendance Terminal Manual Chapter One: Handling Instructions 1.1 - Operation Environment Dear Customers, First of all thank you for purchasing our product, the Fingerprint Time Attendance Machine! For the optimal use and maintenance of the product, please read the manual carefully before using it. Do not please leave the machine under the strong sunshine.
  • Page 4 Fingerprint Time Attendance Terminal Manual Correct  Too deflective  Too perpendicular  Tilting  Too Low  - 4 -...

  • Page 5: Chapter Two Basic Functions

    Fingerprint Time Attendance Terminal Manual Chapter Two: Basic Functions 2.1 - Keyboard The configuration of the keyboard is demonstrated by Figure 2-1. MENU ▲ ▼ Figure 2‐1  The function is illustrated as Figure 2-2. Figure 2‐2 2.2 - Menu The terminal is convenient to operate, with function keys and numerical keys to perform flexible menu selection, keyboard input and various settings.
  • Page 6 Fingerprint Time Attendance Terminal Manual 2.2.1 - The Constitution of Menu The constitutions of the level 1 menu are: Data Management: To register and delete the fingerprints, passwords and data on inductive card of the users or the administrators, and to perform the functions such as examining records, setting arithmetic, security and downloading records etc..
  • Page 7 Fingerprint Time Attendance Terminal Manual 2.2.1.1 - Enroll Menu Finger  Card  User  Password  Sup Manager  Enroll  Manager  Level‐1 Menu  Gen Manager  Delete  GLog  All Log Delete  ALL GLog  SLog  Download  All SLog  Level‐2 Menu  All Enroll Down  If the machine does not have U  All Enroll Up  Disk function then this menu  will not be available.  Level‐3 Menu  - 7 -...
  • Page 8 Fingerprint Time Attendance Terminal Manual 2.2.1.2 - Set up Manager    Language  Voice Out  Time      Time Fmt  Setup    System      Level Setting  Level‐1 Menu  Bri Adjust  LCD Contrast  Lock Ctrl  Shutdown Key  Auto Shutdown  Glog Wrn  Slog Wrn  Log Setup    Level‐2 Menu  Re‐Verify  （continue to the next page） - 8 -...
  • Page 9 Fingerprint Time Attendance Terminal Manual Machine Number  Baud Ratio  Terminal Number  Subnet Mask  Communication    Level‐2 Menu IP Address  Password  Default Gateway  RS485  Ethernet  Level‐3 Menu  - 9 -...
  • Page 10 Fingerprint Time Attendance Terminal Manual 2.2.1.3 - System Information Menu Press OK when placing the cursor on the item of System Information in the level-1 menu to access the level-2 menu and three menu items will be displayed with six items of information available.

  • Page 11: Chapter Three Basic Usage Instructions

    Fingerprint Time Attendance Terminal Manual Chapter Three: Basic Usage Instructions 3.1- Basic Usage 3.1.1 - Installing finger print time attendance terminal A. Location: according to the place of the screw holes which are used to fixed the iron board, locate four holes on the wall district of hanging the finger print time attendance terminal B.

  • Page 12: Setup

    Fingerprint Time Attendance Terminal Manual Welcome    19：28        05 / 05 / 17        Tuesday  3.1.3 - Fingerprint Registration Under normal working status, press MENU to access Menu -> Record Management ->User Registration ->Fingerprint Registration ->New Registration -> Input ID Number ->Press with the finger for three times ->Save ->Exit.
  • Page 13 Fingerprint Time Attendance Terminal Manual Press OK button to display the following: Finger  New Enroll?  No ‐ESC                      Yes‐OK  Press OK to display the following Note:    New Enroll  Range of numbers 1‐ 65535.  ID                  00001  The ID number will be ...
  • Page 14 Fingerprint Time Attendance Terminal Manual Press OK to save it and the registration is successful, displayed as follows: Finger Enroll  Continue?  No‐ ESC                      Yes‐ OK  Press OK to continue registering new users while press ESC to register backup fingerprint.
  • Page 15 Fingerprint Time Attendance Terminal Manual 3.1.4 - Inductive card number registration Card    New Enroll?  No ‐ESC                      Yes‐ OK  Place the inductive card on the induction area and the following will be displayed: New Enroll ...
  • Page 16 Fingerprint Time Attendance Terminal Manual New Enroll    PWD IN  NO‐ESC                      SET‐ OK  Input password and then press OK to display the following: Note:    New Enroll  PWD IN                  ****  Four ...
  • Page 17 Fingerprint Time Attendance Terminal Manual 2> When in the registration, at the time of inputting ID, only to input the non-zero part and the latter numbers is ok. For example, the staff number is 00050 but the input number should be 50. 3>...

  • Page 18: Quick Connection Guidance

    Fingerprint Time Attendance Terminal Manual If the terminal sets repeat time validation and users repeat time record in the period of the setting time. A vocal message will notice “thank you”. The LCD of the terminal will illustrate “Auto adapt” and save the first time record. If the password is verified, users click their registration number on the keyboard then press “OK”...

  • Page 19: Communication Setting

    Fingerprint Time Attendance Terminal Manual 3.2.1 - Direct Connection through RS232 1> RS232 communication parameter setting: Press MENU to enter Menu ->Setting ->Communication Setting ->Machine Number Setting -> Baud Ratio Setting -> Press ESC ->Press OK -> Press ESC to exit. The default display of the communication setting menu is as follows：...
  • Page 20 Fingerprint Time Attendance Terminal Manual 3.2.2 Connection through RS485 1> In Communication Setting, press Scroll-down button and set RS485 communication to “Yes” and Ethernet to “No”, displayed as follows: Communication              ▼  Note:  Machine  number,  Baud  Ratio  and  Default Gateway ...
