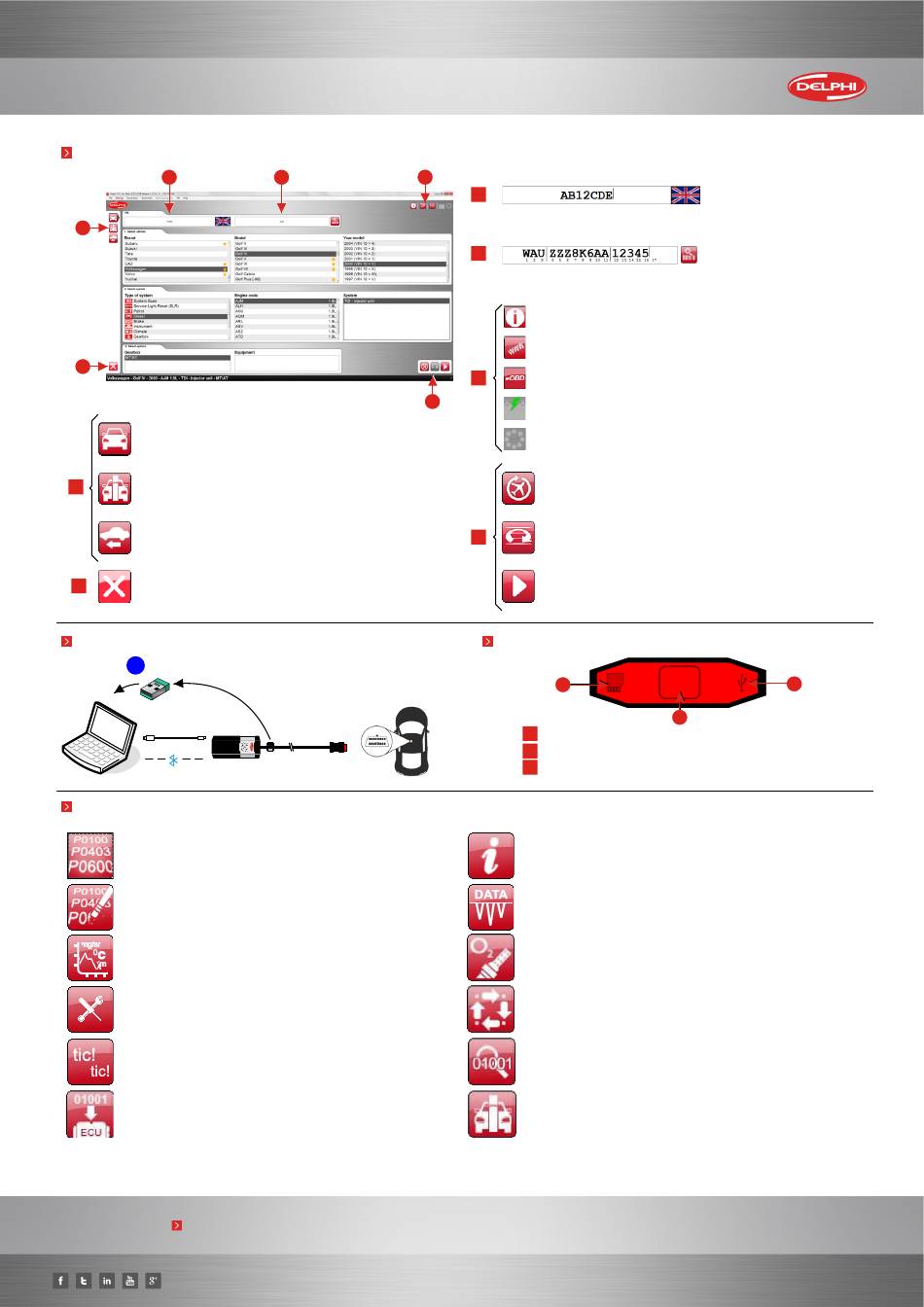

Delphi DS150e Quick Start Manual page 2

Software main menu
C
A
B
Classic view
Simple selection by make, model, year and system
Information/Tree structure
A
Selection by make, model, year and system with functions breakdown and information on
diagnostic socket and engine code location
History
Shows the history of the last diagnosed vehicles for quick selection
Quit Program
B
Connection to vehicle
!
Locate the USB dongle on the VCI lead and plug it to a USB port of the
computer.
or
VCI
Diagnostic functions
DTC reading (Diagnostic Trouble Codes)
Gives access to DTC stored in the selected ECU and associated freeze frame data when available.
DTC clearing (Diagnostic Trouble Codes)
Sends a DTC clearing request to the selected ECU.
Real-Time Data
Allows dynamic reading of ECU parameters, with the ability to select the parameters to be viewed
simultaneously, in either instantaneous or graphical way.
Adjustements
Give access to ECU ajustements such as injector coding, adaptation reset, pedal calibration, service
reset, actuator relearning etc.
Instructions are provided to guide the user in the use of the function.
Component Activation
Forces ECU to test its funtionality
ECU Coding
Allows to configure and code ECU for functions such as Tyre size configuration, key programming,
VIN programming etc.)
delphiautoparts.com
D E
F
Air Conditioning | Braking | Diagnostics | Diesel | Engine Management | Fuel | Ignition | Maintenance | Steering & Suspension
VRM lookup
C
Type the VRM of the vehicle and press « Enter » Key to lookup the vehicle. (Available in
United Kingdom only).
VIN lookup
D
Type the VIN or click on the button to retrieve the VIN from the vehicle (the VCI must be
connected to the vehicle and the VCI must be setup in the hardware settings)
Vehicle Technical Information
(maintenance schedule, Adjustement data, repair information, etc. Only available when online.)
Website links
Generic EOBD Scantool
E
Vehicle battery voltage level indicator
Activity Indicator
Flight Recorder
This functions records the selected parameters while driving the vehicle. Once the FR session is
configure press, the REC button at the rear of the VCI to start recording
ISS (Intelligent System Scan)
This function scans all ECU fitted on the vehicle and reports found Diagnostic Trouble Codes.
F
Select « System Scan » in « Type of System » list to enable this button.
Diagnostic
Access to all Diagnostic functions supported by the selected ECU
Rear VCI view
1
1 MicroSD slot for Flight Recorder
Flight recorder Trigger button
2
USB Port
3
Informations (EOBD)
Displays general information about the vehicle (communication protocol, available control units, number
of DTC, MIL Status etc.)
Freeze Frame Data (EOBD)
Displays to EOBD Freeze Frame (EOBD function only)
Oxygen Sensor tests result (EOBD)
Displays the Oxygen sensor(s) tests result
Non-continous tests result (EOBD)
Displays the EOBD Non-continuous tests result
Diagnostic check (EOBD)
Displays the EOBD tests result
Vehicle information (EOBD)
Displays vehicle identification numbers - Vehicle Identification Number (VIN), Calibration Identification
Number (CIN) and Calibration Verification Number (CVN)
2 / 2
REC
3
2
