ALI-NS1124VR 4.0 Megapixel IR Mini Dome
IP Camera Quick Installation Guide
The ALIBI ALI-NS1124VR dome camera includes 4.0 megapixel video performance in a small form factor
network camera. This camera features:
4.0 Megapixel video
•
Up to 30 ft (10 m) IR
•
120dB WDR / 3D DNR / BLC
•
Support on-board storage, microSD card up to 128GB
•
Built-in microphone
•
12 Vdc or Power over Ethernet (PoE)
•
Internal 3-axis adjustment
•
IP66 weather rated, IK08 impact resistant
•

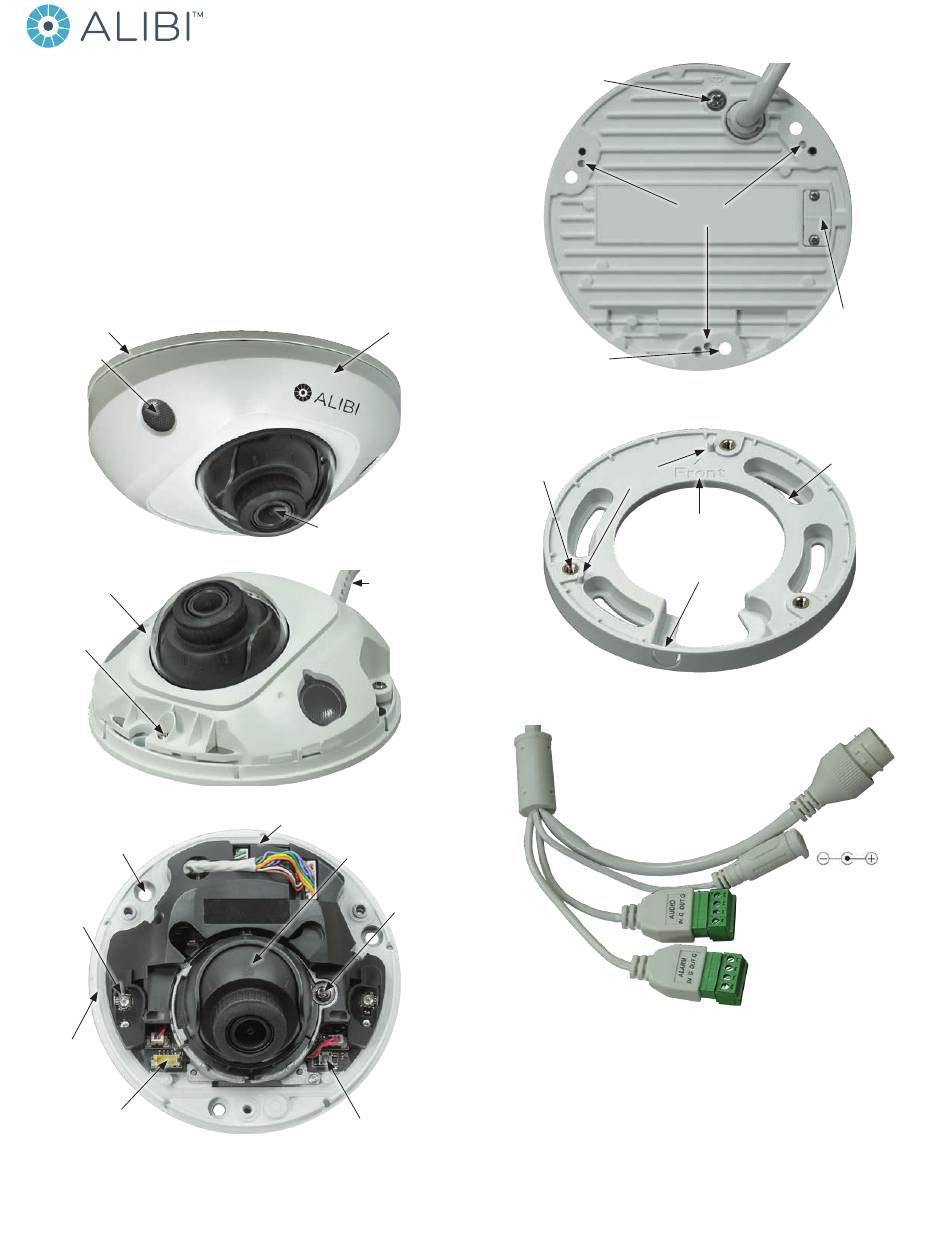

Camera assembly base
IR Lens
Dome cover
Dome cover
screw (3)
Screw
holes (3)
for base to
mounting
plate
IR LED (2)
Built-in
microphone
For factory
use only
*Reset restores factory settings. Press the reset button for 10 seconds while the camera is powering on or rebooting.
Camera base assembly
www.observint.com
1
Outer cover
Lens
Drop cable
microSD card slot
Camera
module
Camera
gimbal
hold
screw
Reset button*
Ground
terminal
Holes (3) for base to
mounting plate screws
Underside of camera base assembly
Holes (3)
for base to
mounting
Locator
plate screws
pins
Camera drop cable connectors
What's in the box
Camera assembly
•
Dome cleaning cloth
•
Machine screws (3)
•
Weatherproof Ethernet fitting
•
Mounting hardware - screws and wall inserts (3 each)
•
This document
•
Camera
drop cable
Holes for
locator pins (3)
Built-in
microphone
access cover
Holes (3) for
mounting
screws
Orient
toward FOV
Knockout for
cable routing
Adapter plate
Ethernet connector
supports PoE
12 Vdc Power
Connector
Audio IN / OUT out terminals
Alarm IN / OUT terminals
ALI-NS1124VR_CQ
180814
Advertisement
Related Manuals for ALIBI ALI-NS1124VR
Summary of Contents for ALIBI ALI-NS1124VR
- Page 1 Ground drop cable terminal IP Camera Quick Installation Guide The ALIBI ALI-NS1124VR dome camera includes 4.0 megapixel video performance in a small form factor network camera. This camera features: 4.0 Megapixel video • Up to 30 ft (10 m) IR •...
-
Page 2: Step 1. Install The Camera
4. Install audio input and out devices as needed, and then route cables from them to where the camera Dome cleaning cloth Weatherproof fitting for Ethernet cable will be installed. Audio terminations in the camera are 3.5 mm plugs. 5. Determine the method for mounting the camera considering: The camera lens adjustments allow a pan of ±30˚, tilt of 0˚... -
Page 3: Step 4. Modify Network Parameters
When an Alibi device is first installed, or reset to its factory configuration, it must be “Activated” before it can be used. In the Alibi Configuration Tool, “Inactive” devices have a Security status of Inactive, and an IPv4 address of 192.168.1.64. A device is “Activated” when a password is assigned to the admin Ethernet connector username of the device. - Page 4 You can change the network parameters of devices that are active. 2. Hold down the shift key, and then right-click on the IE icon. 1. In the list of devices discovered, click on the device you want to change the network settings for, and then click the select box to check it.
- Page 5 Step 6. Insert microSD card into the camera A microSD card installed in the provides local storage for video recordings, capture files, and log data. The camera supports microSD cards with capacities up to 128 GB. NOTE: If the camera is not managed by an NVR or other video management system (VMS), and doesn’t have a microSD card, video recordings, capture files, and log data are not saved.
- Page 6 maintenance cable to the connector on the maintenance panel, and then attach it to CVBS monitor to see a For cameras installed on a LAN live view video from the camera. 1. If necessary, open IE and log into the camera with administrative credentials. 1.
- Page 7 User / Host 3 levels: Administrator, Operator and User 9. Screw the lock nut onto the network cable end cap until it is Client Alibi Central Management Software (ACMS) fully seated. Rubber Web Browser Microsoft® Internet Explorer® version 8 or later...
- Page 8 Wire gauge standards Bare Wire Gauge(mm) American Wire Gauge Cross-sectional Area of (AWG) Bare Wire (mm 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080 3.000 7.0683 12 Vdc Wire Gauge and Transmission Distance The following table shows the recommended maximum distance adopted for the different wire sizes when the 12 Vdc voltage loss is less than 15%.
