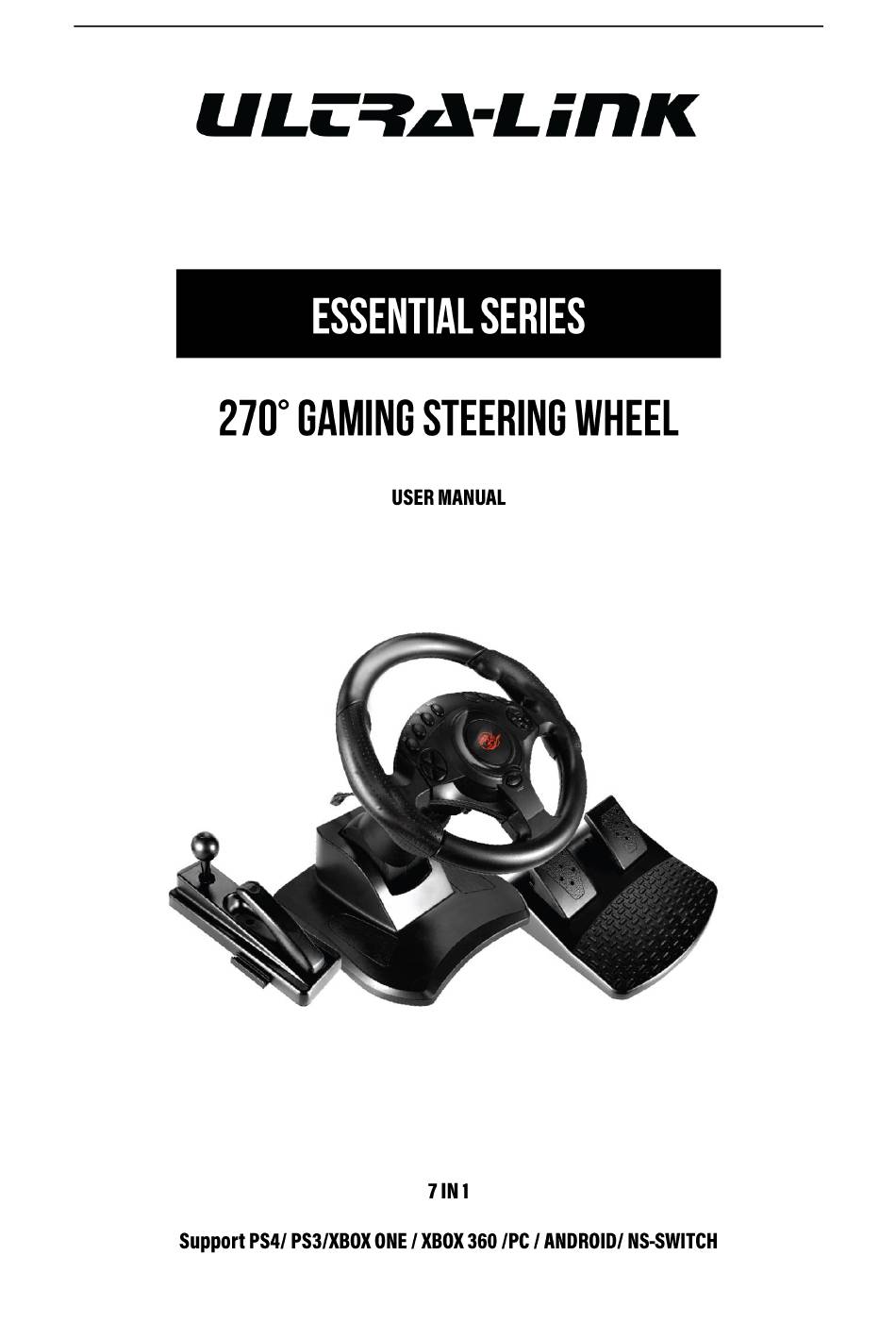

ULTRA-LINK ESSENTIAL Series User Manual

270 gaming steering wheel
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ESSENTIAL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ULTRA-LINK ESSENTIAL Series

  • Page 2 Introduction 1. 270-degree Game steering wheel is compatible with PS3 / PS4 / XBOX ONE / XBOX360 / PC / NS SWITCH / Android and other devices. For PS3/PC/NS SWITCH/ANDROID, you can directly use the game racing wheel to play games. 2.

  • Page 3: Function Key Introduction

    Function key introduction: 1. Function button RT. 2. Function button LT. 3. Function button X. 4. Function button Y. 5. Function button B. 6. Function button A, 7. Select / Back button. 8. Start /pause key START. 9. HOME key: X input mode and Direct input mode switch key, only for PC use. After power on, the default is X input mode.
  • Page 4 12. Function buttons LSB. 13. Mode LED (red)/programming LED (blue). 14. Arrow keys UP/Down/Left/Right. 15. Shift lever. 16. Handbrake Hand brake controller. 17. The accelerator pedal Right Pedal. 18. Left Pedal of the brake pedal. 19. Function button LB. 20. Function button RB. 21.

  • Page 5: Installation Instructions

    (Installation diagram) Installation instructions: 1. Choose a table that is convenient for you to operate the gaming steering wheel. The table surface should be smooth. First put a piece of A4 paper on the table, take out the steering wheel from the packing box, and put the steering wheel on the paper on the table.
  • Page 6 5. Take out the A4 paper at the bottom of the steering wheel. Press the four suction cups at the bottom of the steering wheel onto the table top. Press the three suction cups at the bottom of the shift lever / handbrake seat onto the table.

  • Page 7: Connecting An Android Device

    There are three steering wheel angles to choose from, which are 30 degrees / 75 degrees / 90 degrees. Push the steering wheel angle adjustment lock to the unlock position, adjust the steering wheel angle up or down, select a satisfactory angle, and push the angle adjustment lock to the lock position.
  • Page 8 Connect to Nintendo Switch Connect the steering wheel pedal and shift lever to the steering wheel correctly. Connect the steering wheel USB cable to the USB port of the Nintendo Switch. If the connection is successful, the mode led on the steering wheel will be on. (NS SWITCH connection diagram) Game recommendation NS SWITCH...
  • Page 9 Connect to PS4/Xbox one/Xbox 360 Connect to PS4 game console Connect the steering wheel pedal and shift lever to the steering wheel correctly. Connect the original PS4 controller to the steering wheel controller guide USB port. Connect the steering wheel USB cable to the USB port of the PS4 game console.
  • Page 10 (PS4 connection diagram) Connect to XBOX ONE Connect the game steering wheel pedal and shift lever to the steering wheel correctly. Connect the original XBOX ONE controller to the steering wheel controller guide USB port. Connect the steering wheel USB cable to the USB port of the XBOX ONE game console.
  • Page 11 XBOX ONE Need for Speed DiRT 4 Forza motorsport 7 DiRT 2 DiRT 3 Race Driver: GRID2 Porject Cars2 F1 2017 Forza Horizon 3 Assetto Corse Forza motorsport 6 Forza motorsport 5 ForzaHorizon 2 Presents Froza HOrizon 2 Porject Cars Fast&...
  • Page 12 Game recommendation list XBOX 360 GTI Racing TOCA Race Driver 3 Need for Speed INITIAL D:Mountain Hooligan police racing car Cross Racing Championship Vengeance Project Cars 3D Urban Madness Formula 1 Grand Prix Forza Motorsport 7 Forza Horizon 2 Connect to PS3 Connect the steering wheel pedal and shift lever to the steering wheel correctly.
  • Page 13 PC connection Connect the game steering wheel pedal and shift lever to the steering wheel correctly. Connect the USB cable of the steering wheel to the USB port of the PC. If the connection is successful, the mode led on the steering wheel will be on. (PC connection diagram) NEED FOR SPEED TOU 2...
  • Page 14 GAME STEERING WHEEL BUTTONS DEFINITION Wheel key Xbox360 X input XboxOne PC(DIPUT) Switch Android ▲ ▲ □ □ Back Select Share Back View Back Back Start Start Option Start Menu Start Start HOME XBOX Guide XBOX Guide HOME Right Right Right Right Right...
  • Page 15 Precautions: 1. Before connecting the steering wheel to the host device, you must first connect the pedal and shift lever to the steering wheel before connecting to the host. If the pedal or gear lever is disconnected from the steering wheel during the game, the steering wheel USB cable must be disconnected from the USB port of the host device.
