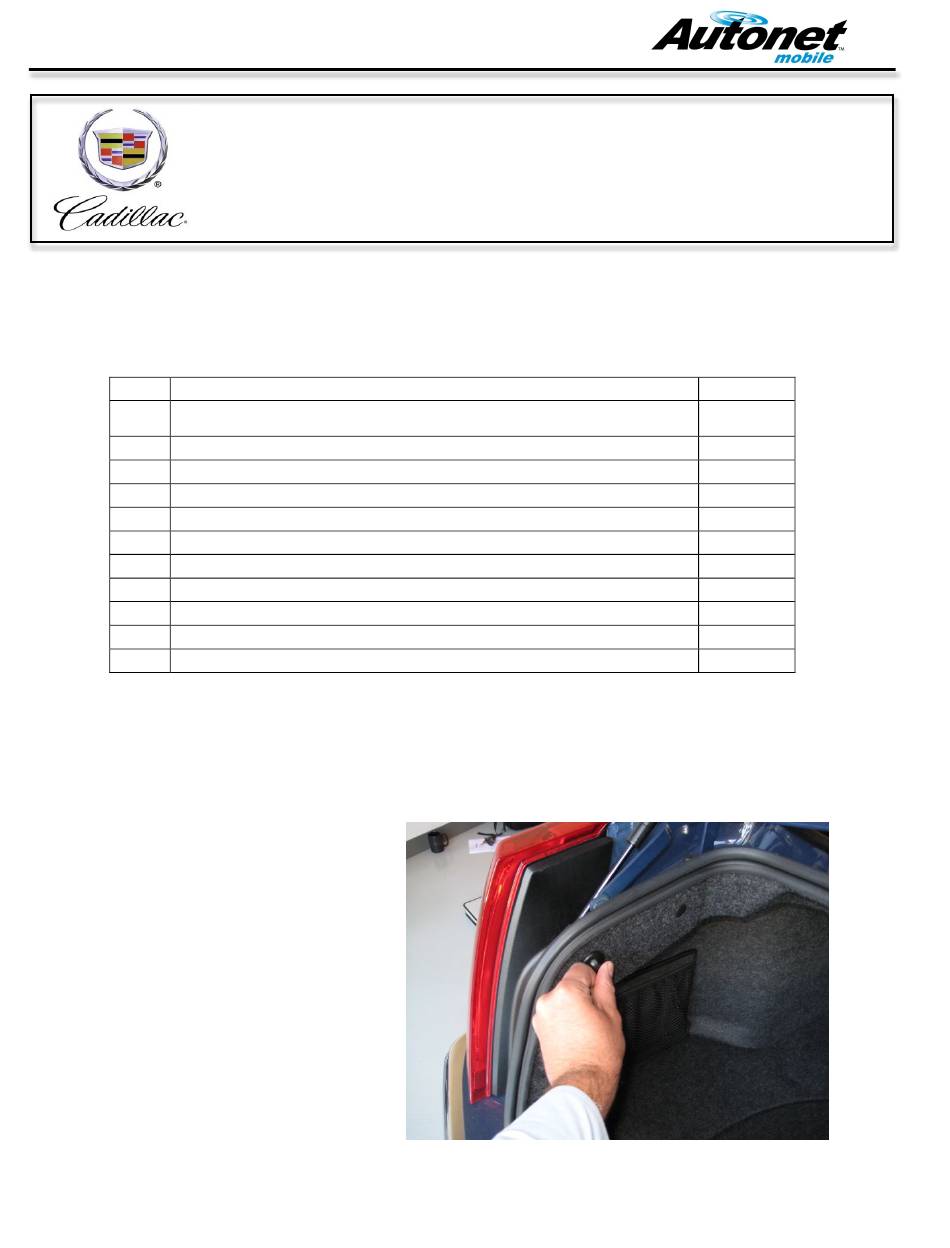

Installation Sheet
Installation Sheet
Installation Kit Contents:
Item
Description
1
Power Cable
2
Nylon Key-Hole Clip
3
Red Posi-Tap Connector
4
Black Posi-Tap Connector
5
8" Nylon Cable tie
6
2.8 terminal
7
1.5 terminal
8
M6 Nut
9
Dampening Tape
10
CTS Router Label
11
Window Decal
Installation Procedure:
1. On left wall of trunk,
remove the three
fasteners that secure
the trunk liner.
225-1100-01 V1.5
Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com
Cadillac CTS
2008-2011
Cadillac CTS Installation Sheet

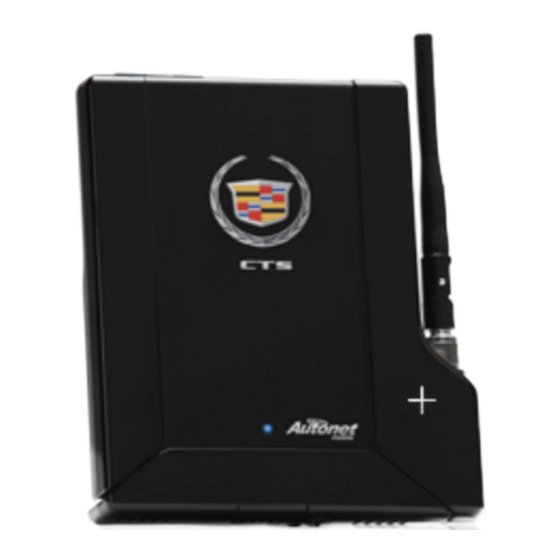

In-Car Router
Qty.
1
4
1
1
4
1
1
1
1
1
1
1
1
1
Advertisement
Summary of Contents for Autonet Mobile In-Car Router
- Page 1 Dampening Tape CTS Router Label Window Decal Installation Procedure: 1. On left wall of trunk, remove the three fasteners that secure the trunk liner. 1 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 2 3. Open left rear passenger door fold down seat and remove two remaining fasteners that secure trunk liner. 4. Remove trunk liner. 2 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 3 7. Drill a 3/8” hole directly below docking station for power wire. 8. Run power wire through hole in trunk liner. Secure in place with grommet. 3 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 4 10. Feed cable through seat frame into passenger cabin. 11. Run power cable under trim to left instrument panel access area on the driver’s side of dash. 4 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 5 1 Installation Sheet 12. Open left instrument power access area. 13. Locate and unplug 14 pin harness 5 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 6 15. Unscrew grooved cap from supplied Posi-Tap connector, slide Pink Wire as far is it will go into the groove in the cap. 6 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 7 Posi-tap connector and insert wire. 19. Brush exposed wire strands with thumbnail and insert wire strands into one side of the metal core. 7 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 8 23. Crimp the correct terminal (see table 1-1) onto end of lead. 24. Insert pin and lead into correct receptacle in connector (see table 1-1) 8 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 9 32. Insert router into docking station 33. Turn on Key power and observe blue light flash - this may take up to 30 seconds. 9 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
- Page 10 35. Happy Surfing! 36. Place the CTS Router Label on the router as shown. 37. Place the window decal on the driver’s side rear quarter window. 10 225-1100-01 V1.5 Cadillac CTS Installation Sheet Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
-
Page 11: Safety Precautions
• To prevent a short circuit never put Mobile Customer Service Center. or leave any metallic objects (such as • If the In-Car Router does not seem to coins or metal tools) inside the unit. be working right, consult the Autonet •... -
Page 12: Fcc Warning
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 225-1100-01 V1.5 Cadillac CTS Installation Sheet 2 Autonet Mobile Customer Service – 1-800-977-2107 or support@autonetmobile.com...
