Wireless Video Transmission System
ZOlink series
Item Model: ZO1000
Manual
Shenzhen ZO Video Technology Co., Ltd.
01
/Features
1000
FT
Transmit Range
UVC Live Streaming
Fanless
Ultra-Low-Power
Multiple Monitoring
02
/Packing List
Transmitter*1
2
Receiver*1
3
Antenna*5
4
Type-c power cable*1
UVC
80ms
Ultra Low Latency
App
NPF/TYPE-C
Multiple Power Supply
5
User Manual*1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZOlink Series and is the answer not in the manual?

Questions and answers

Related Manuals for himbol ZOlink Series

Summary of Contents for himbol ZOlink Series

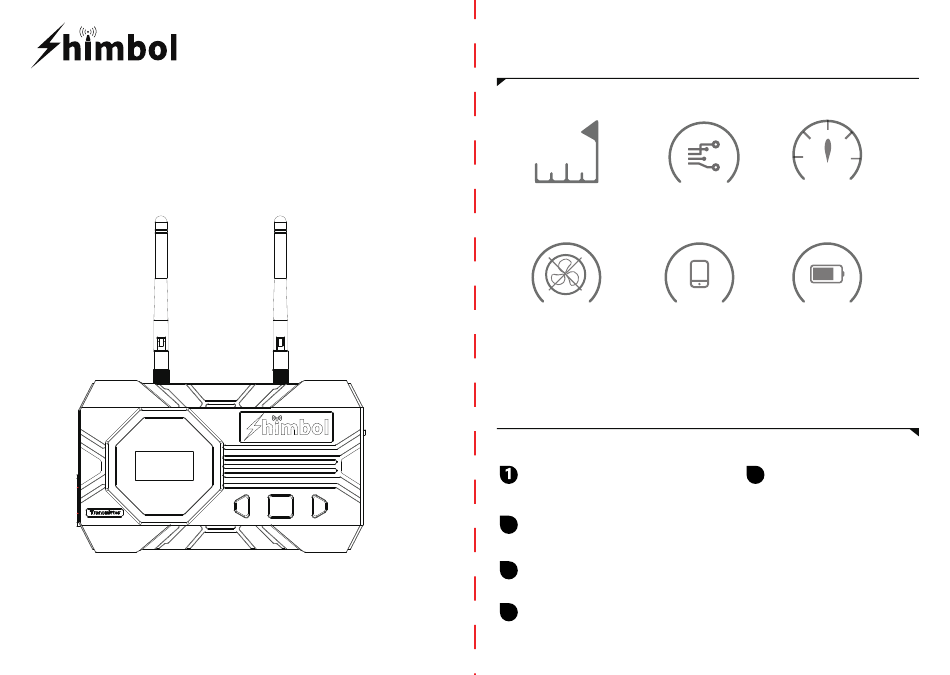

  • Page 1 /Features Wireless Video Transmission System 1000 ZOlink series Item Model: ZO1000 80ms Transmit Range UVC Live Streaming Ultra Low Latency Fanless NPF/TYPE-C Ultra-Low-Power Multiple Monitoring Multiple Power Supply /Packing List Transmitter*1 User Manual*1 Receiver*1 Antenna*5 Manual Type-c power cable*1 Shenzhen ZO Video Technology Co., Ltd.
  • Page 2 /Product Interfaces /Typical Setup iphone ipad 1 TX to 1 RX Mode iphone ipad Power switch Menu Button USB Type-c Port ( Power & Right Button UVC Live streaming（RX) ) OLED Screen HDMI Input( TX)/ Output(RX) Left Button SDI Input( TX)/ Output(RX) 1 TX to 2 RX Mode...

  • Page 3: Oled Display

    /Product Status 1 TX to 1 RX Mode After the transmitter is paired with one single receiver, an additional mobile device can be connected; 1 TX to 2 RX Mode 1080P60 1080P60 The transmitter can be paired with two receivers. After the pairing is completed, SHIMBOL SHIMBOL an additional mobile device can be connected.
  • Page 4 /Operation Guide PAIRING PAIRING: ON LANGUAGE BACK BACK SETTING Upgrade MESSAGE BACK Right Button Left Button 1. Copy the upgrade file into the root directory of the U disk; VERSION： SSID 2. Plug the U disk into the OTG cable (you need to bring your own) and connect VERSION V1.2.7 it to the USB Type-C upgrade port of the transmitter;...
  • Page 5 /Parameters Transmitter Receiver HDMI output/SDI output/TYPE-C HDMI input/SDI input Interfaces output （UVC） 5V-2A DC/NP-F Battery Power Supply Way Power <4W <4W Consumption 720P@50/60Hz 1080I@50/60Hz HDMI Input Format 1080P@24/25/30/50/60Hz 720P@50/60Hz HDMI Output 1080I@50/60Hz Format 1080P@24/25/30/50/60Hz 720P@50/60Hz 1080I@50/59.94/60Hz SDI Input 1080P@23.98/24/25/29.97/30 Format 50/59.94/60Hz 1080PSF23.98/24/25/29.97/30Hz 720P@50/60Hz...
