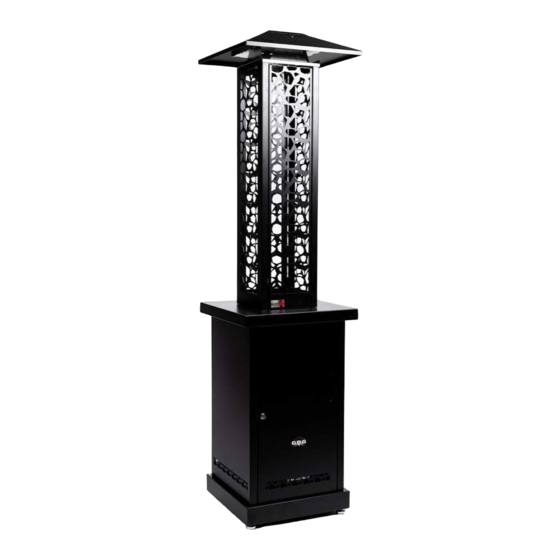

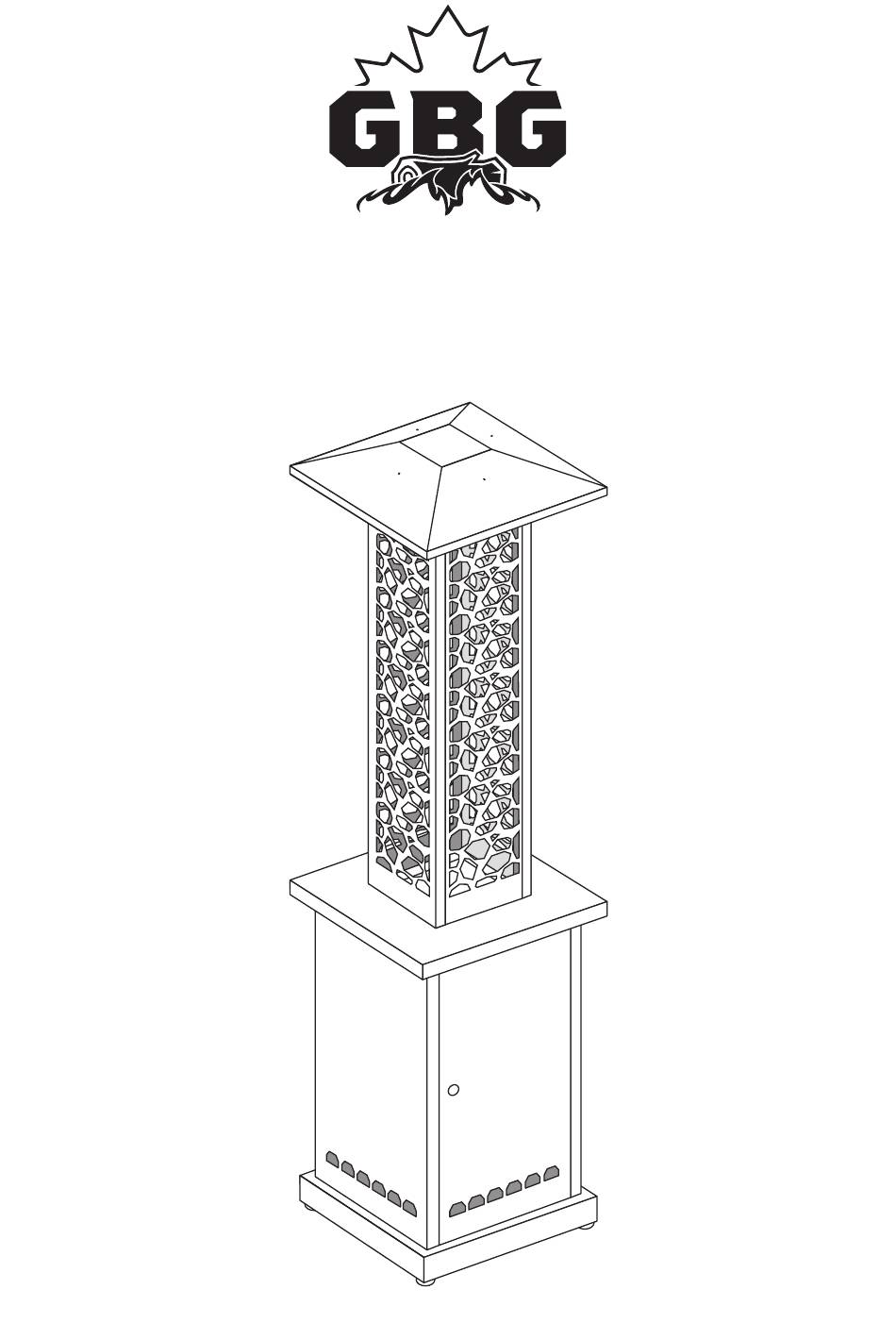

- Page 1 PREMIUM WOOD PELLET PATIO HEATER Model: GBG-PELHTR THIS PRODUCT IS FOR OUTDOOR USE ONLY...
- Page 2 PARTS ROOF Also included: POKER DIFFUSER PROTECTIVE GLOVES UPPER FRAME GLASS TUBE VIEWING TOWER TOWER DOOR BASE BASE DOOR HOPPER HOPPER COVER ASH DRAWER BOTTOM PLATE...
-
Page 3: Improper Use
WARNING This manual provides information on transport, installation, correct use and maintenance of the pellet heater. It is aimed at persons involved in the installation, use and maintenance of the equipment. Before carrying out any operation, please carefully read, understand, and implement these instructions. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS 1. The heater is intended for outdoor heating use only and should not be used for any other purpose. The heater should not be used as an incinerator. 2. Before using the heater, the operator must read and know all the safety precautions outlined herein. - Page 5 SAFETY PRECAUTIONS (continued) 12. Both the viewing tower and base doors must be kept closed during use of the heater. Make use of the key only to refill the hopper; do not leave the key in the door. 13. Never exceed a maximum pellet load of 9kg (20lbs). Do not fill the hopper with quantities of pellets lower or higher than those indicated.
- Page 6 ASSEMBLY 1. Remove all parts and hardware from the packaging with special care when handling the glass tube. 2. Attach the top frame to the viewing tower with four screws. Observe correct orientation: Downward facing lip of diffuser should face opening of viewing tower. 3.
- Page 7 8. Insert bottom plate into 9. Push hopper into base. rails on the bottom of Close the retention the hopper. Ensure that latches. Place ash drawer it is fully inserted such beneath the hopper on that pellets will not fall the floor of the base.
-
Page 8: How It Works
MOVING AND POSITIONING THE HEATER For lifting and moving the heater, please use appropriate equipment able to sustain its weight. Do not use a forklift to move the heater. Avoid positioning the heater on uneven or unlevel ground. Never move the heater during use. When moving the unit, remove the glass tube to prevent accidental damage. -
Page 9: Normal Operation
NORMAL OPERATION Loading and Firing: 1. Open the front door of the base and pull out the hopper. 2. Load with quantity of pellets for desired approximate duration: PELLET QUANTITY FLAME DURATION 1.5hr 2.5hr 3.5hr 4.5hr 3. Ignite the pellets using a natural fire starter block or fire starting gel (both are available at most hardware stores in the BBQ or fireplace sections). -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Use cleaning products recommended for glass and a soft cloth to clean the heater. Do not use abrasive, caustic, or corrosive products. After every use, remove any residual pellets and char inside the burner to avoid issues with the next firing. To ensure proper operation, lubricate the hopper’s sliding guides with oil or silicon-based lubricant spray after every second or third use of the heater. -
Page 11: Troubleshooting
TROUBLESHOOTING CONDITION POSSIBLE CAUSE SOLUTION Check that fire starter has not extinguished. If so, add more, re-ignite, Pyrolysis has not and ensure that combustion is well started correctly. underway before closing the hopper. Change the wood pellets. Open bags of Heater Wet or damp pellets can sometimes become too... -
Page 12: Warranty
WARRANTY This unit is warranted for a period of 90 days from the date of purchase against manufacturer defects. Proof of purchase required. This warranty is applicable to the original purchaser and cannot be transferred. Repair or replacement of defective parts is at the discretion of the manufacturer/distributor.
