Wave wifi Rogue Series Quick Start Manual

ROGUE FAMILY
QUICK START GUIDE

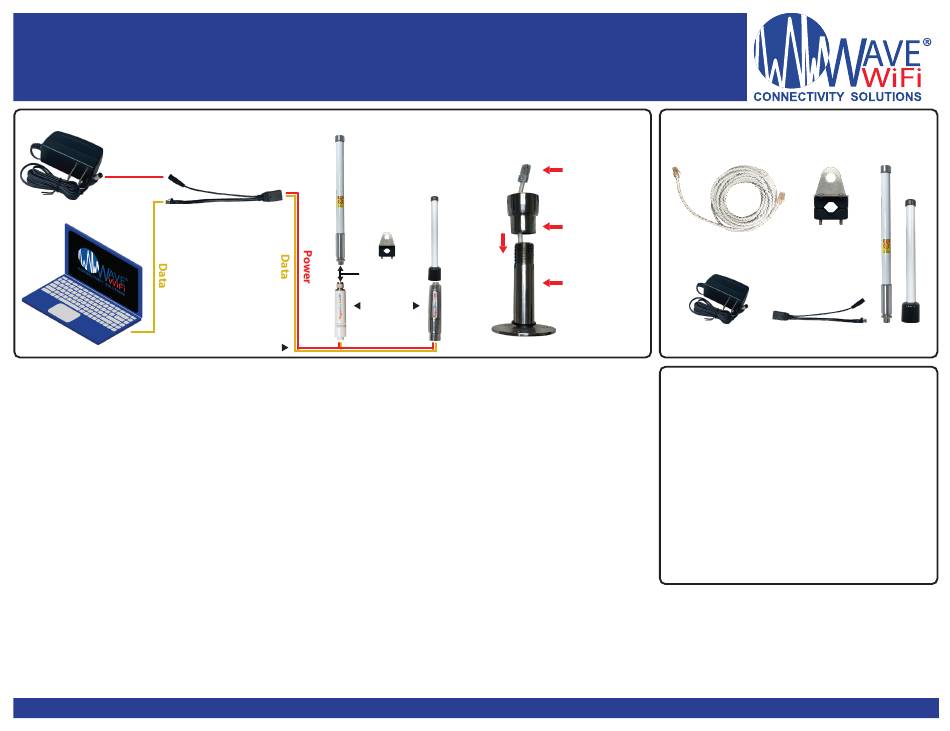

Power
CAT 5e cable plugs into base
HOW TO CONFIGURE / OPERATE
1. Plug one end of the ethernet cable provided into the base of the Rogue unit.
*Rogue Wave Only - Seal the ethernet hole with the white rubber grommet provided*
2. Plug the other end of the ethernet cable into the PoE (Power Over Ethernet) injector.
3. Plug the power supply into the PoE injector (Both lights on the PoE should show solid green).
4. Plug the PoE injector into the ethernet port of a laptop, computer, or router.
*When plugging into a router it will be the Internet or WAN port*
Connecting to Internet via physical connection
1. Connect the PoE injector into the ethernet port of a laptop or PC
2. Turn off the wireless capability of the laptop or PC.
3. Open a web browser and type in 192.168.89.1 in the URL bar at the top.
4. From the network scan page, connect to a network that you are familiar with.
5. The connection should read, "(Three dots)..., Checking IP, Got Internet".
Connecting to Internet via wireless connection
1. Connect wirelessly to the router that your Rogue unit is PHYSICALLY connected to via laptop, tablet, or smartphone.
2. Open a web browser and type in 192.168.89.1 in the URL bar at the top.
3. From the network scan page, connect to a network that you are familiar with.
4. The connection should read, "(Three dots)..., Checking IP, Got Internet".
4828 NE 12th Avenue, Oakland Park, Florida 33334-4804 • 1.954.928.1310 • support@wavewifi.com
Rogue Wave
Rogue Wave Pro
Rogue Wave Pro DB
Rogue Wave
Rail Mount
Rogue Unit
*Deck mount not included*
Accessories
(1st) Run the ether-
net cable through
the deck mount
and Rogue Pro
base and plug into
the ethernet port
of the Rogue Pro.
(2nd) Screw the
Rogue Pro base
to the Rogue Pro
Cat 5e Ethernet Cable
and onto the 1"-14
thread deck mount.
(3rd) Fasten the
deck mount.
12V Power Supply
Be sure when mounting the Rogue that it is
between 15 - 25ft off the water.
Ensure that the cable run is no longer than 60ft.
If you go beyond 60ft the Rogue may not function
correctly.
The Rogue must be mounted vertically with the
antenna up.
Do not mount next to Radar.
Rail Mount for
Rogue Wave
PoE Injector Antenna
Quick Tips
Page 1
