Summary of Contents for LAIA TPOD AIR PRO QUAD
- Page 1 TPOD AIR PRO QUAD Network education recording and broadcasting system Operating Manual Please read this manual carefully before use Copyright © 2021 Laia · www.laiatech.com All rights reserved...
-

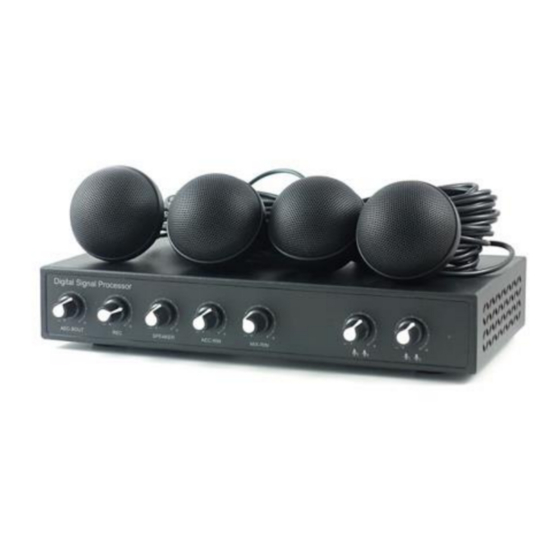

Page 2: Product Overview
(17) B type USB data interface (12) AEC audio input interface (18) DC 12V po wer input interface (13) SPEAKER audio output interface (19) DC power switch (14) REC audio output interface All rights reserved Copyright © 2021 Laia · www.laiatech.com... -
Page 3: Packing List
3.5 audio interface to Phoenix USB·B to USB·A USB RCA plug to Phoenix terminal cable x3 cable xl terminal cable xl Phoenlx terminal (spare part) xlO User Manual xl Power adapter x1 ( 2 ) Copyright © 2021 Laia · www.laiatech.com All rights reserved... -
Page 4: Product Installation
4. The mounting distance between four microphones is greater than 2m and the height is 2-2.Sm. S. The mounting distance between the speaker and the microphone is greater than 2m to achieve the best effect. ( 3 ) Copyright © 2021 Laia · www.laiatech.com All rights reserved... - Page 5 Operation i nstructions 1. .Main application scenario 1 of remote education and netmeeting: Networked computar 2#microphone 2. Main application scenario 2 of remote education and netmeeting: Copyright © 2021 Laia · www.laiatech.com All rights reserved...
- Page 6 3. Application scenario 3 of amplifier of local classroom and conference room: 4. Application scenario 4 of sound console of local classroom and conference room: Copyright © 2021 Laia · www.laiatech.com All rights reserved...
- Page 7 When the host is connected using USB cable, it can be used in computer of Microsoft Windows or Apple MAC operating systems. The USB cable is plug-and-play cable and extra driver is not required. ( 6 ) Copyright © 2021 Laia · www.laiatech.com All rights reserved...
- Page 8 " built-in loudspeaker" is " Device model and name" by default; otherwise, reselect "Device model and name". 4. Please do not try to repair this device, or electric shock may be caused. Please contact the dealer about maintenance. ( 7 ) Copyright © 2021 Laia · www.laiatech.com All rights reserved...
