INSTALLATION AND OPERATING INSTRUCTIONS
Read all instructions carefully before installation. Please leave all
instructions and warranty with the owner.
IT IS UNLAWFUL TO INSTALL THIS UNIT WITHOUT FIRST
OBTAINING A PERMIT FROM THE LOCAL ELECTRICAL
INSPECTION AUTHORITY.
WARING
Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature
of the body reaches several degrees above the normal body
temperature of 98.6
increase in the normal temperature of the body, dizziness,
lethargy,drowsiness, and fainting. The effects of the hyperthermia
include failure to perceive heat, failure to recognize the need to exit
the room, unawareness of impending hazard,fetal damage in
pregnant women, physical inability to exit the room and
unconsciousness.
WARING
The use of alcohol, drugs, or medication is capable of greatly
increasing the risk of fatal hyperthermia.
NTSA3/9 171130

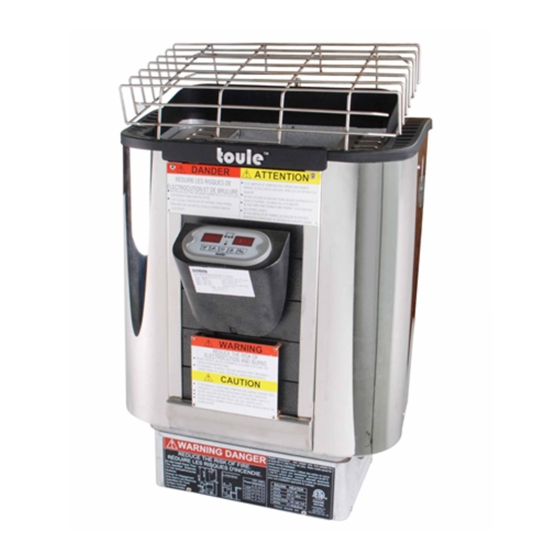

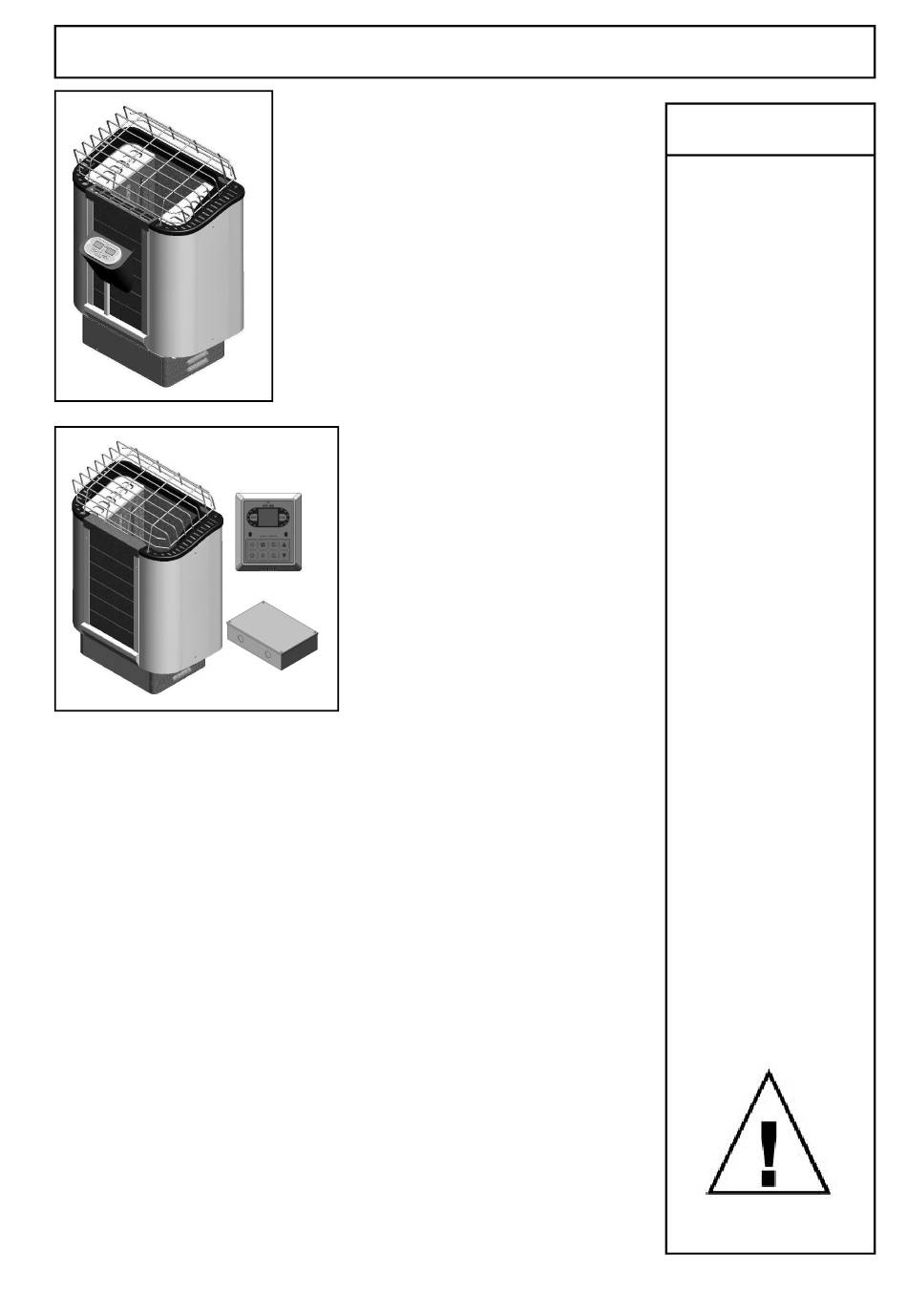

NTSA SERIES SAUNA HEATER
MODELS:
NTSA-30, NTSA-45
NTSA-60, NTSA-90
With
NTS-100
control.
NTSC SERIES SAUNA HEATER
MODELS:
With
digital control.
F. The symptoms of hyperthermia include an
0
on-heater
digital
NTSC-30, NTSC-45
NTSC-60, NTSC-90
NTS-300
wall-mounted
WARNING
Do not take a sauna if
using alcohol, drugs or
medications.
Pregnant women or
persons with poor
health should consult
their physician before
using any sauna.
Caution fire hazard: Do
not use the sauna room
for drying clothes,
bathing suits,etc. Do not
hang towels above
heater or place any
object other than the
rocks supplied on the
heater. If any darkening
of the wall around the
heater is noticed
discontinue sauna use
immediately.
Inspect sauna regularly
for required
maintenance to
heater,control and
benches. Replace wood
surfaces which show
any signs of
deterioration.
The heater gets
extremely hot during
operation and should
not be touched or burns
may result.
Minors should be
adequately supervised
whenever near a hot or
warming sauna.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTSA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aleko NTSA Series

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS NTSA SERIES SAUNA HEATER WARNING MODELS: NTSA-30, NTSA-45 Do not take a sauna if NTSA-60, NTSA-90 using alcohol, drugs or medications. Pregnant women or With NTS-100 on-heater digital persons with poor control. health should consult their physician before using any sauna.
  • Page 2: Section 1: General Information

    See Diagram 2 for wire and room size requirements. These heaters are wall mounted Thank for choosing NTSA and NTSC series 3~9kw sauna heater. The NTSA series sauna heater is equipped with NTS-100 on-heater digital control panel while the NTSC series sauna heater is equipped with NTS-300 wall-mounted digital control panel.
  • Page 3 INSTALLATION AND OPERATING INSTRUCTIONS Page 3 DIAGRAM 2 Power (kW) Sauna Room 240VAC60Hz Light Model (CuFt) Power wire Fuse Heating 120VAC60Hz 120VAC60Hz Height≮76 ” Copper NTSA-30 70~140 4#12AGW NTSA-45 105~210 4#10AGW NTSA-60 175~320 4#8AGW ≤40W Connect to NTSA-90 265~460 4#6AGW Connection NTSC-30 70~140...
  • Page 4: Section 2: Mounting Of Sauna Heater

    INSTALLATION AND OPERATING INSTRUCTIONS Page 4 SECTION 2: MOUNTING OF SAUNA HEATER WARNING Refer to diagram 1, hanging the heater on the wall. Drill four 9/64” The use of accessory holes to fasten the heater to the wall. Install two 1/4”X1/2” hex head attachments not recommended by the lag screws (supplied with the heater ) into the upper two holes.
  • Page 5: Section 5: Temperature Sensor Box

    INSTALLATION AND OPERATING INSTRUCTIONS Page 5 To determine the correct wire size, refer to Diagram 2. Use copper supply wire only, suitable for minimum 221℉. The heater must be grounded! See Diagram 4, 5, 6 and 7 for proper connections. SECTION 5: TEMPERATURE SENSOR BOX Mount sensor to finished wall 2”...
  • Page 6 INSTALLATION AND OPERATING INSTRUCTIONS Page 6 DIAGRAM 4 DIAGRAM 5 NTSA3/9 171130...
  • Page 7 INSTALLATION AND OPERATING INSTRUCTIONS Page 7 DIAGRAM 6 NTSA3/9 171130...
  • Page 8 INSTALLATION AND OPERATING INSTRUCTIONS Page 8 DIAGRAM 7 NTSA3/9 171130...
  • Page 9: Section 8: Control Installation

    INSTALLATION AND OPERATING INSTRUCTIONS Page 9 SECTION 8: CONTROL INSTALLATION It is recommended that the wall-mounted digital control panel NTS-300 to be installed near the sauna door or other easy access location outside the sauna room, about 4 feet above ground. Please drill a 2’’...
  • Page 10: Section 9: Nts-300 Control Operation

    INSTALLATION AND OPERATING INSTRUCTIONS Page 10 SECTION 9: NTS-300 CONTROL OPERATION WARNING The control for this a NTS 300 thermostat to adjust the sauna temperature and HEAT CONT a timer to control when the heater starts and stops. The maximum SAUNA CONTROL the timer of the heater to TEMP...
  • Page 11 INSTALLATION AND OPERATING INSTRUCTIONS Page 11 SET TEMP: Press this button to change temperature setting, the upper screen blinks and TEM P ▲ ▼ displays the current setting, press “ ” or “ ” to adjust the setting, then press “ ”...
  • Page 12: Section 10: Nts-100 Control Operation

    INSTALLATION AND OPERATING INSTRUCTIONS Page 12 SECTION 10: NTS-100 CONTROL OPERATION 1.Temperature display 2.Heating indicator 3.Temperature-preserving indicator 4.Light indicator 5.Time display 6.Sauna START/STOP 7.Temperature and Time setting 8.Light ON/OFF 9.Adjusting button 1. Display Temperature: Left display window , display range: 43-221℉. Setting temperature: Adjustable range 158-194℉,Ex-factory value is 167℉.
  • Page 13 time is 10 hours (0:00~9:59), press to adjust hour value, press to adjust the minute INSTALLATION AND OPERATING INSTRUCTIONS Page 13 Press again to confirm your setting and then enters the heating-time setting, the maximum heating-time is 60 minutes (1-60), press to adjust the minute, press again to confirm your setting.
  • Page 14: Section 11: High Limit Control (Reset Button)

    INSTALLATION AND OPERATING INSTRUCTIONS Page 14 SECTION 11: HIGH LIMIT CONTROL (RESET BUTTON) The sauna heater has a built-in manual reset thermostat (KT2), when abnormal high temperature inside the sauna heater, the heating elements are cut off by the manual reset thermostat KT2 control equipment, sauna heater stop heating under this hazard circumstance.
  • Page 15 INSTALLATION AND OPERATING INSTRUCTIONS Page 15 DIAGRAM 10 DIAGRAM 11 TYPICAL PRE-CUT WALL CONSTRUCTION VENTILAYION Ventilation hole needs to be drilled Use all four long screws provided to fix the sauna heater securely on the wall. If the sauna room wall panel is less than 1/2", add extra wood frame with thickness more than 1/2"...
  • Page 16: Section 13: Warning Placards

    INSTALLATION AND OPERATING INSTRUCTIONS Page 16 SECTION 13: WARNING PLACARDS WARNING Two metal placards are included in the Installation Instruction Envelope packaged with every Sauna Heater. The “CAUTION” and using the screws or nails provided in the intended location, “WARNING” placards must at eye level.The CAUTION placard must be attached to the be mounted in accordance interior wall of the sauna room directly above the heater...
  • Page 17: Section 15: Ventilation

    INSTALLATION AND OPERATING INSTRUCTIONS Page 17 SECTION 15: VENTILATION VENTILATION In a sauna, the air should be changed about 6 times an hour. This can be achieved by making a vent opening (fresh air inlet )in the sauna wall directly below the heater. The air outlet must be lower than the upper benches, as far as possible from the heater and about two feet higher than the fresh air inlet went, See Diagram 11.
  • Page 18 INSTALLATION AND OPERATING INSTRUCTIONS Page 18 To clean and remove perspiration stains, use soap or detergent in warm water, best applied with a scrub brush. Badly soiled surfaces may require sanding. Sand paper wrapped around a wooden block works well. Benches and supporting structure must be inspected annually for potential deterioration due to age, dry rot or abuse.
  • Page 19: Section 17: Troubleshooting

    INSTALLATION AND OPERATING INSTRUCTIONS Page 19 SECTION 17: TROUBLESHOOTING Intelligent self-diagnose function Please check the following hint message for quick trouble shooting.  Room temperature is lower than 6℃(43℉) :displays “-L ”.  Room temperature exceeds 105℃ (221℉): Displays“-H ”. Sauna heater will not heat any more.
