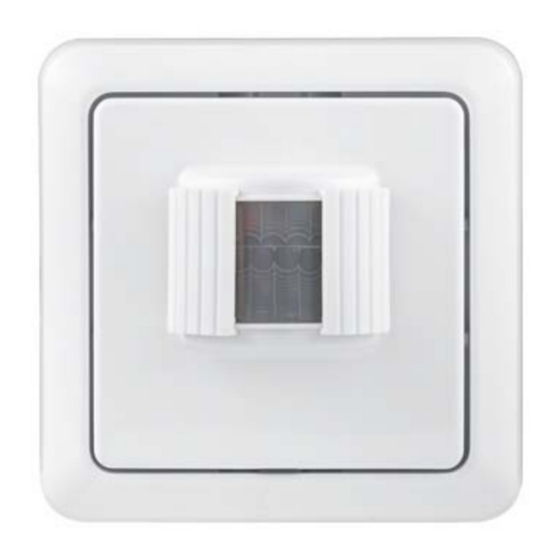

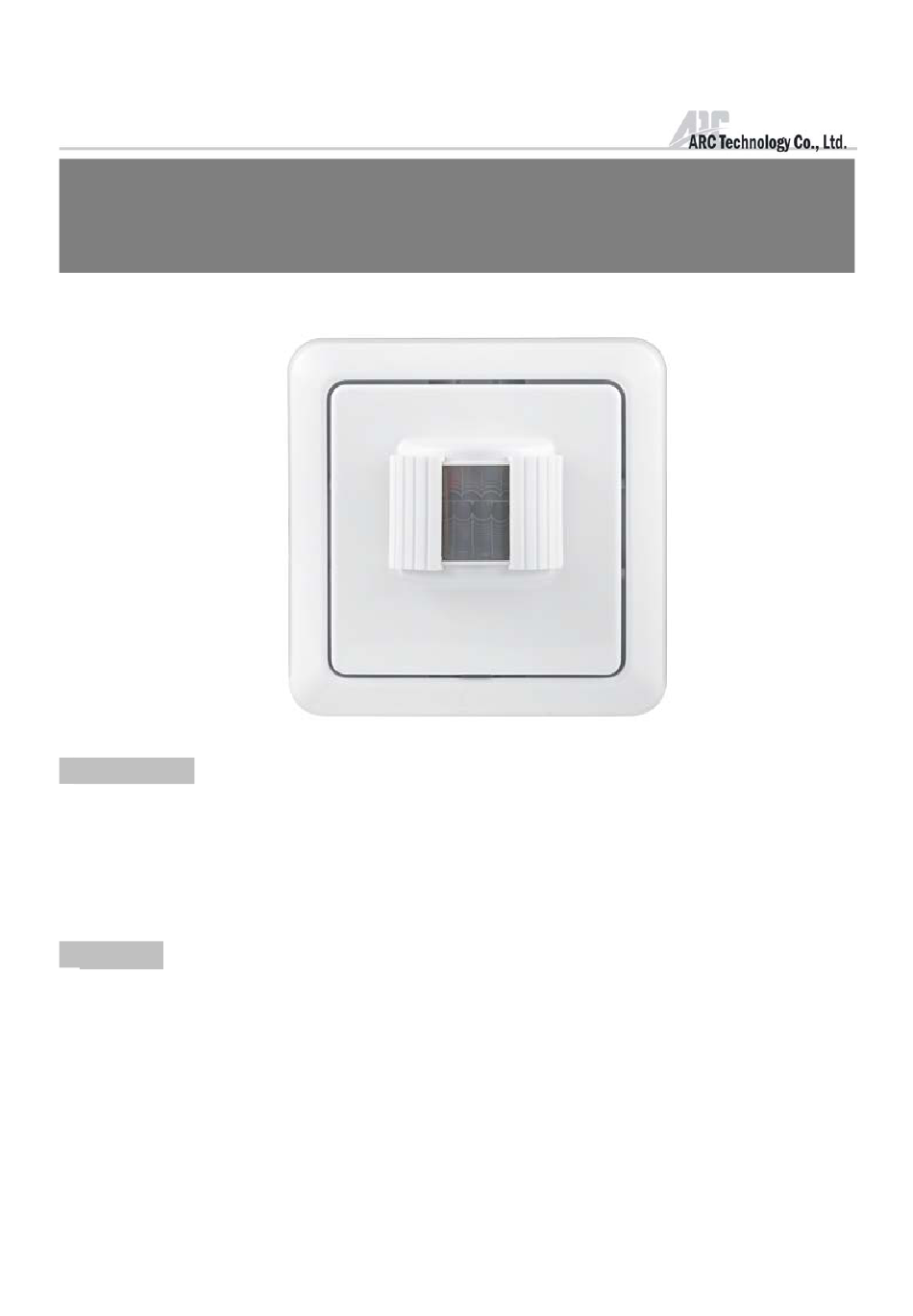

Indoor Motion Sensor
S
pecification:
Function:
Motion Detector
Frequency:
433.92MHz
Battery:
2 x 1.5V (AAA) Alkaline Battery
O
verview:
Wireless DC battery operated indoor motion sensor with adjustable detection angel.
Automatically triggers the receiver device upon detecting movements.
Selection of 'Auto off' for 5sec. / 1min. / 5min. / 10min.
Easy installations with either screw fix or affix any location with adhesive tape.
Object detection range from 1 ~ 6M
Detection angle:
Horizontal – max. 20 with lens-cover ~ 110 degree without lens-cover.
LMDT-609
Version 1.
Advertisement
Summary of Contents for ARC Technology LMDT-609
- Page 1 Indoor Motion Sensor LMDT-609 pecification: Function: Motion Detector Frequency: 433.92MHz Battery: 2 x 1.5V (AAA) Alkaline Battery verview: Wireless DC battery operated indoor motion sensor with adjustable detection angel. Automatically triggers the receiver device upon detecting movements. Selection of ‘Auto off’ for 5sec. / 1min. / 5min. / 10min.
-
Page 2: Button Definition
Motion sensor can further adjust the detection angel by moving Left / Right and Up / Down to maximum 90 degree Ambient light level setup. (High / Medium / Low) Battery Low indicator. utton Definition: A) Learn Switch. ‘SET’ means pairing a device. ‘DEL’... - Page 3 etup: 1. Remove main part from bracket stand. 2. Unscrew the 2 screws with a ＋ headed screw driver. Version 1.
- Page 4 3. Insert a small － headed screw driver and twist open. 4. Affix 2 x AAA 1.5V Alkaline battery . airing: Version 1.
- Page 5 Pairing using LEARNING MODE: 1. First choose the desired receiver(s) that you wish to control. 2. On the receiver press the ‘Learn’ button once (LED will flash), this will now enter learning mode. 3. On motion detector, slide the button from “DEL” to “SET” position. 4.
- Page 6 3. On motion detector, slide the button from “SET” to “DEL” position. 4. The load will flash twice to confirm the motion detector is now un-paired. ！ Make sure the code is learnt properly before you slide the button to any position, this may cause the code being deleted accidently.
- Page 7 The narrower of lens cover, the wider the detecting angle. older Base Angle: Motion detector can further adjust the detection angel by moving Left / Right and Up / Down to maximum 90 degree. et Timer: Slide switch must be positioned in ‘DEL’ in order for the timer to work. ...
- Page 8 Motion detector will only trigger with the lux level lower than the initial lux setting. It will not trigger any movement at a higher lux level. It is not recommended to position the motion detector with other light source surround. This may cause incorrect lux detection.
-
Page 9: B Attery Low Indication
attery Low Indication: Once battery is low, LED inside sensor lens will blink to inform battery low. Please replace with a fresh battery. nstall Battery: 1. Insert a small flat headed screw driver and twist open. 2. Change 2 x AAA 1.5V Alkaline battery making sure the ‘＋/－’ terminal is correct 3.
