Summary of Contents for SKILLQUBE qubeAVgo V2

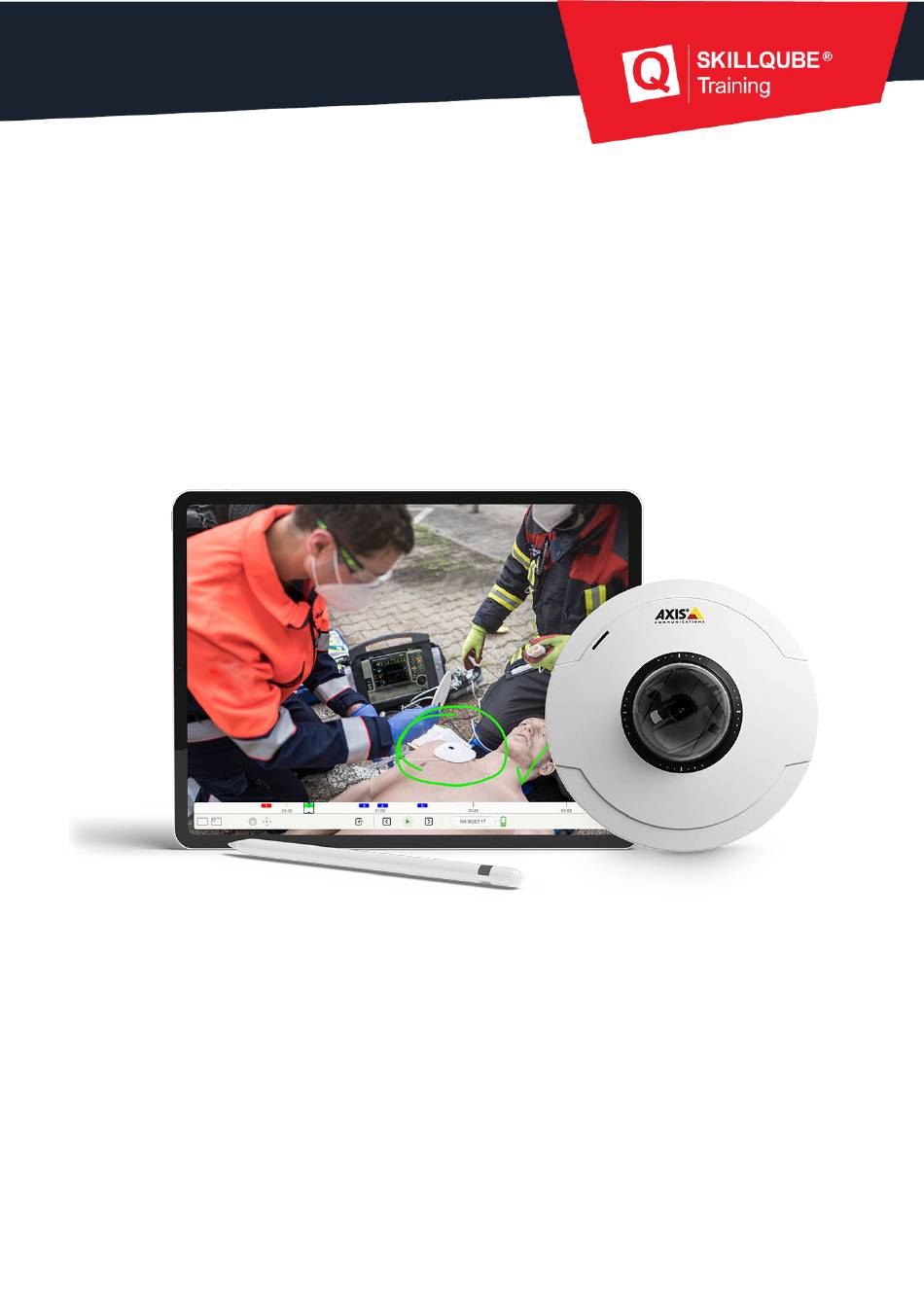

  • Page 1 User Guide qubeAVgo V2...
  • Page 2 Date: 10/2022 Allgemeines Lieferumfang Aufbau des qubeAVgo V2 Systems Übersicht des Aufbaus Starten der Applikation Öffnen der Applikation Icons und Einstellungen (Allgemein) Icons und Einstellungen im Aufnahmemodus Icons und Einstellungen des Markers Icons und Einstellungen im Wiedergabe-Modus Impressum...

  • Page 3: Items Supplied

    Thanks in advance for your support – we wish you every success in your training and hope you enjoy it. Items supplied The qubeAVgo V2 system was delivered to you with the following components: ● qubeAVgo V2 bag ●...
  • Page 4 Apple ID is required to load the software onto the iPad. Video guide: 2. Once you have connected your device to your Apple ID, go to the App Store and search for SKILLQUBE. Download the qubeAVgo app. (Fig.: qubeAVgo app icon) 3.
  • Page 5 the sound quality, you can connect the boundary microphone: a. Connect the boundary microphone to the preamplifier using the XLR cable. For greater flexibility, you can insert the yellow XLR extension between them. b. Connect the preamplifier to the iPad using the USB-C to micro USB cable.

  • Page 6: Launching The Application

    Setup overview Launching the application If all the components are on the same network, open the application on the iPad by pressing the app icon. Opening the application After you tap the qubeAVgo icon, the application opens and starts loading. This takes about seven seconds.
  • Page 7 2. Select “Picture in Picture (PiP)”: Where necessary, you can set a “Picture in Picture” (PiP) image. You can use a stream to connect to the SKILLQUBE patient monitor without any cables. When doing so, make sure that the monitor is on the same network as the qubeAVgo. In the main view and PiP view, you can choose between the IP camera, iPad camera, and patient monitor.
  • Page 8 5. Camera control: when using the supplied external camera, you can adjust the image as required; you can control the viewing direction and viewing angle. Drag the digital joystick (dot) to the left, right, top or bottom to get the desired image setting. The magnifying glass icon on the left lets you zoom in or out.
  • Page 9 Icons and settings in recording mode 10. Stop: Pressing the “Stop” button opens a dialog with the following options “Continue recording” – the recording continues “Quit” - the recording is stopped. The application automatically switches to REPLAY mode 11. Status indicator: Indicates which mode the application is in (LIVE, REC, REPLAY).
  • Page 10 Icons and settings in replay mode Once the recording is complete, the application switches to replay mode. 21. Live mode: You can press the “Exit” button to stop the debriefing and start again in live mode. A system prompt asks whether you want to store the recording in the archive.

  • Page 11: Legal Notice

    Legal notice SKILLQUBE GmbH Schafäckerweg 24, 69168 Wiesloch, Germany District Court – Registration Court – Mannheim HRB 716968 Head office: Wiesloch – Managing director: Julia Wallburg, authorized signatories: Georg Hirsch, Thorben Schreyer E-mail: info@skillqube.com Homepage: www.skillqube.com Phone: +49 (0) 6222 / 38 62 65 Fax: +49 (0) 6222 / 38 63 65 VAT ID no.
