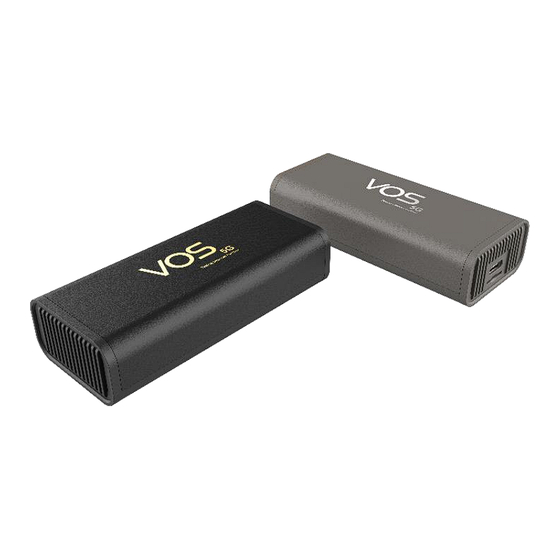

VOS 5G Dongle User Manual
5G Dongle
User manual
Draft Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5G and is the answer not in the manual?

Questions and answers

Related Manuals for VOS 5G

Summary of Contents for VOS 5G

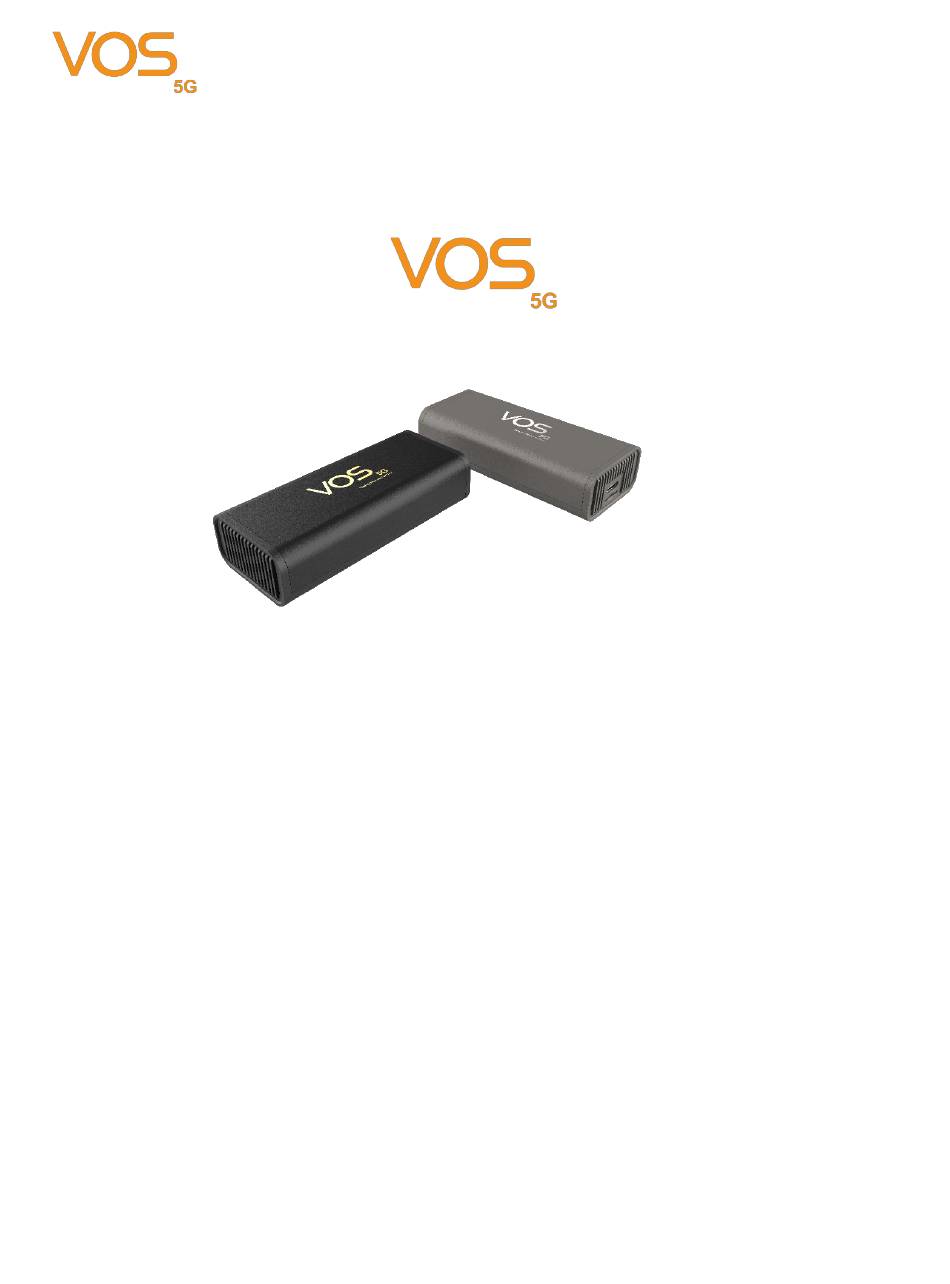

  • Page 1 VOS 5G Dongle User Manual 5G Dongle User manual Draft Version...

  • Page 2: Table Of Contents

    VOS 5G Dongle User Manual Content Foreword ......................1 Introduction ......................... 3 Safety Information ....................... 3 Device information ....................... 5 Device ID & IO Positions ..................7 Device LED Status ...................... 7 Connectivity ......................8 Host OS by Windows....................9 Windows UI &...

  • Page 3: Foreword

    1.2 Safety Information The following safety precautions must be observed during all phases of operation, such as usage, service or repair of any cellular terminal or mobile incorporating with 5G Dongle. Manufacturers of the cellular terminal should send the following safety information to users and operating personnel, and incorporate these guidelines into all manuals supplied with the product.
  • Page 4 VOS 5G Dongle User Manual The cellular terminal or mobile contains a transmitter and receiver. When it is ON, it receives and transmits radio frequency signals. RF interference can occur if it is used close to TV set, radio, computer or other electric equipment.

  • Page 5: Device Information

    VOS 5G Dongle User Manual 1.3 Device information 5G Dongle embedded with TRITOM SG500M2-X 5G Module is a highly integrated 5G NR FR1 wireless communication module that adopts standard USB 3.1 Type-C interface as the dongle device and backward supports with LTE/WCDMA system. It is applicable to most broadband communication networks of the mobile operator across the world.
  • Page 6 VOS 5G Dongle User Manual SRS antenna n77/n78/n79 : 1T2R(NSA) + 2T4R(SA) switching Power Supply 5V ±5% Operating temperature :-10°C ～+50°C Temperature Storage temperature: -40°C ～+85°C Physical Interface: USB Type C, Nano-Sim characteristics Dimension: 87.5 x 38.9 x 21 mm...

  • Page 7: Device Id & Io Positions

    VOS 5G Dongle User Manual 2. Device ID & IO Positions 2.1 Device LED Status Dongle have 2 LEDs for below connection situations shows by tow. Green Green Situations Green Power On Keep On Search Network Slow Flash OFF, Network...

  • Page 8: Connectivity

    VOS 5G Dongle User Manual 3. Connectivity VOS 5G Dongle uses USB 3.1 Type C to Type C cable to link dongle & various host. Need to use the certified cable in box to retrieve the best performance. Note: Please do not use any other type of cable with Type C adapter to link the dongle and various host.
  • Page 9 VOS 5G Dongle User Manual Notice: If the Nano SIM card is hard to push-in and push-out, users can use the SIM card adapter enclosed with the nano SIM card or credit card corner to push the nano SIM card in and out.

  • Page 10: Host Os By Windows

    VOS 5G Dongle User Manual 3.1 Host OS by Windows 3.1.1 Windows UI & Setting Dongle will boot and register to network automatically after connect to host. You can check the network status by click “internet access” icon.
  • Page 11 VOS 5G Dongle User Manual In the Network & Internet Settings, you can see the overview of network status. If you want to create a new APN setting, you can go to “Mobile” -> “Advanced options” to see APN settings.
  • Page 12 VOS 5G Dongle User Manual If you want to add a new APN profile, click “Add an APN” and enter profile data. Remember to “Save” when finished input.

  • Page 13: Firmware Update

    VOS 5G Dongle User Manual 3.1.2 Firmware update You can use “Windows Update” to find latest firmware for update. Or manually find fota package from https://www.tricascadeinc.com/vos-5g follow SOP below (see page 15). 3.1.2.1 Find your dongle firmware Open command prompt by typing cmd in the search window and open as...
  • Page 14 VOS 5G Dongle User Manual...
  • Page 15 VOS 5G Dongle User Manual Use “netsh mbn show int” for current module firmware information...
  • Page 16 VOS 5G Dongle User Manual 3.1.2.2 Download fota package You can find firmware update driver package from https://www.tricascadeinc.com/vos-5g e.g. latest firmware is v69. Download and unzip it to local directory.
  • Page 17 VOS 5G Dongle User Manual 3.1.2.3 Setup firmware update driver package Open Device Manager, click “View” to select “Devices by type ”and click“ Show hidden devices” Go to “Software devices” session, right click on the “Mobile Broadband Firmware Device” and select “Update driver”.
  • Page 18 VOS 5G Dongle User Manual If “Mobile Broadband Firmware Device” doesn’t exist, please go to “Firmware” session, right click on the “Qualcomm Mobile Broadband Update Device” and select “Update driver”. Select “Browse my computer for driver software”...
  • Page 19 VOS 5G Dongle User Manual Select “Let me pick from a list of available drivers on my computer” Select “Have Disk”...
  • Page 20 VOS 5G Dongle User Manual Select “Browse…” to Firmware Update Driver package path Select “Qualcomm Mobile Broadband Update Device” and click Next. Wait for firmware update process to finish...
  • Page 21 VOS 5G Dongle User Manual Open Device Manager, click “Network adapters”. Wait for Generic Mobile Broadband Adapter becomes hidden device. Wait around 120s Generic Mobile Broadband Adapter will back to normal device and then please reboot PC. During firmware update, you can find red led on and green led blinking.
  • Page 22 VOS 5G Dongle User Manual...

  • Page 23: Host Os By Linux

    VOS 5G Dongle User Manual 3.2 Host OS by Linux Dongle will boot and register to network automatically after connect to host. You can see “Connection Established” after dongle boot up and see the connection detail by checking “Connection Information”.

  • Page 24: Configuration Utility

    VOS 5G Dongle User Manual onfiguration Utility 3.2.1 For connection management, we provide a WEB based configuration utility for users to customize connection configuration. To access the configuration utility, open a web browser (such as Internet Explorer) and enter the IP address of the router, which is 192.168.225.1 by default.
  • Page 25 VOS 5G Dongle User Manual Click Login to continue...
  • Page 26 VOS 5G Dongle User Manual 3.2.1.1 APN Settings APN: Enter your service provider’s APN. User Name/Password: Enter the username and password provided by your service provider. PDP Type: Select PDP type (IPV4/IPV6/IPV4 & IPV6) that provided by your service provider.
  • Page 27 VOS 5G Dongle User Manual 3.2.1.3 WWAN Settings Airplane Mode: Move the toggle to enable airplane mode. Preference Networks: Select network type (3G/4G/5G) combination that you prefer to use.
  • Page 28 VOS 5G Dongle User Manual 3.2.1.4 NAT Settings IP Pass-Through: Please keep the IP Pass-Through as the “Disabled” for static IP address. If you need to set as dynamic IP, please move the toggle to “enable” IP Pass- Through. Dongle will reboot after enabled IP pass-through.
  • Page 29 VOS 5G Dongle User Manual irmware Upgrade 3.2.1.5 Current Version: Current Firmware version. Upgrade From Local: Select a firmware update package from local. Upgrade From Network: Checking server if there is new Firmware to upgrade. It will start to upgrade Firmware if there has a new version.

  • Page 30: Host Os By Mac Os

    VOS 5G Dongle User Manual 3.2.2 Host OS by Mac OS VOS 5G Dongle will boot and register to network automatically after connect to host. You can see connection detail by checking “Network”, and check network configuration on “Advance”.
  • Page 31 VOS 5G Dongle User Manual We provide WEB based configuration utility for Mac OS, you can refer to configuration utility section on Linux chapter for detail.
  • Page 32 VOS 5G Dongle User Manual FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
