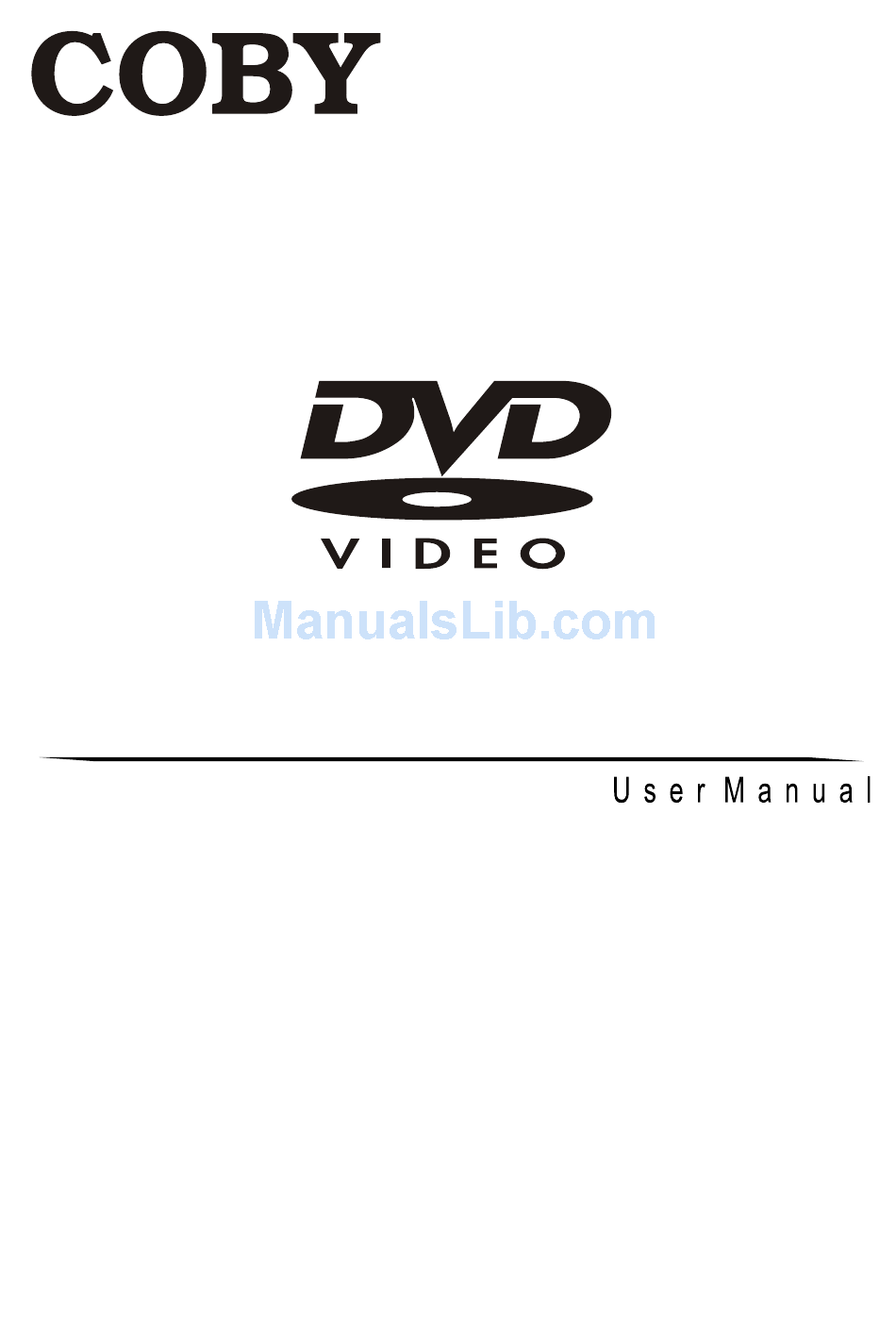

- Page 1 DVD 5.1 HOME THEATER SYSTEM DVD-958...
-
Page 2: Table Of Contents
Contents Features & Package Contents...2 For your Attention...3-4 Panel...5 Connections...6-7 System Setup...8-14 Remote Control...15 Remote Control Function...16-18 Playback...19 Troubleshooting...20 Specifications...21... -
Page 3: Features &Package Contents
Features &Package Contents Thank you for purchasing our product. Please read this manual carefully before connection and operation and keep it for future reference. This DVD player is a next generation home player that can produce high quality video and audio for your continued enjoyment. Built in Dolby D igital HiFi, 96kHz/24bit audio digital processor... -
Page 4: For Your Attention
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Page 5 For Your Attention This symbol indicates important instructions accompanying the product. Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside, Refer servicing to qualified service personnel. This symbol indicates that this product incorporates double insulation between hazardous maims voltage are user accessible parts.
-
Page 6: Panel
FRONT PANEL: FRONT PANEL: POWER 1. POWER BUTTON 2. STOP BUTTON 3. PLAY/PAUSE BUTTON 4. DISC DOOR REAR PANEL: 1. SPEAKER OUTPUT 2. LINE INPUT 3. HDMI OUTPUT 4. S-VIDEO OUTPUT 5. 2-CH AUDIO OUTPUT 6. COMPONENT VIDEO OUTPUT 5. DISPLAY SCREEN 6. -
Page 7: Connections
Connections Connections Connections Connections Connections Connections Connections Connections Connections Connections 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION 1 VIDEO SYSTEM CONNECTION The following video outputs are available for this unit . -
Page 8: Connections
2 AUDIO SYSTEM CONNECTION (OPTIONAL) 2 AUDIO SYSTEM CONNECTION (OPTIONAL) 2 AUDIO SYSTEM CONNECTION (OPTIONAL) 2 AUDIO SYSTEM CONNECTION (OPTIONAL) In addition to the 5.1-channel sound provided by this unit, the following optional In addition to the 5.1-channel sound provided by this unit, the following optional In addition to the 5.1-channel sound provided by this unit, the following optional In addition to the 5.1-channel sound provided by this unit, the following optional audio outputs are available (2.1 - 2.3). -
Page 9: System Setup
System Setup MENU OPERATION: 1. In DVD mode, press [SETUP] on the remote control to display the setup menu. 2. Press [ ]/[ ] to select an item. The submenu of the selected item will be displayed below instantly. 3. Press [ ]/[ ] to select an item you desire to set in the submenu, then press [ENTER] /[ ]to enter. -
Page 10: Last Memory
System Setup 1.6 LAST MEMORY ON: Each time you turn off the unit or stop the disc, it will memorize the last play time. Next time you turn on the unit and play the same disc, the unit will play from that memorized point. -
Page 11: Bass Boost
System Setup 2.2.2 LPCM OUTPUT When DIGITAL OUTPUT is set to PCM ONLY, this item is available. Select a sample rating for the analog audio output. There are two options, 48KHz and 96KHz. NOTE: Some amplifiers don't support 96KHz sampling which will affect the coaxial output. -
Page 12: Super Bass
System Setup 2.5.3 SUPER BASS Set it to ON to get the super bass sound effect. 2.5.4 TREBLE BOOST Set it to ON to boost the treble sound. 2.6 3D PROCESSING 2.6.1 PRO LOGIC II Pro Logic II: This unit allows you to configure Dolby Pro Logic II to expand 2-channel source audio into full 5.1-channel surround sound. -
Page 13: Video Output
System Setup VIDEO SETUP PAGE There are five items in the VIDEO SETUP PAGE. They are VIDEO OUTPUT, TV MODE, HD MODE, COLOR SETTING, and HDMI SETUP. 3.1 VIDEO OUTPUT OFF: Set video output to the CVBS (composite video). YUV: Set video output in analog component video format when the component video outputs are used. -
Page 14: Hdmi Setup
3.5 HDMI SETUP About HDMI HDMI (High-Definition Multimedia Interface) is the newest interface for audiovisual equipment such as high-definition television and home theater systems. With 19 wires wrapped in a single cable that resembles a USB wire, HDMI is able to carry a bandwidth of 5 Gbps (gigabits per second). - Page 15 System Setup NTSC: If the connected TV is NTSC system which is used in Taiwan, America and Canada, etc, select this mode. It will change the video signal of a PAL disc and output in NTSC format. PAL : If the connected TV is PAL system which is used in China, Hongkong and Europe, etc, select this mode.
-
Page 16: Remote Control
OPEN/ STANDBY CLOSE 0/10 SOURCE SEARCH RADIO TITLE MENU AM/FM AUTO ENTER AUDIO SUBTITLE MEMORY MO/ST VOL+ A-MODE V-MODE VOL- S.EFFECT PROG MUTE ANGLE TONE STEP ZOOM CH-LEVEL REPEAT DVD-958 Remote Control Operation Install two AAA/1.5V batteries into the remote control. Point the remote control at the remote sensor on the front panel. -
Page 17: Remote Control Function
Remote Control Function STANDBY Press to switch on the unit. Press it again to put the unit in standby mode. Press repeatedly to select a video/audio source among TUNER, LINE 1, SOURCE LINE 2 and DVD. SETUP Press to enter/exit the setup menu. OPEN/CLOSE Press to open /close the disc tray. - Page 18 REPEAT Press repeatedly to switch the repeat modes. (Note: This function is invalid when the PBC function is activated.) DVD: CHAPTER(chapter repeat) TITLE(title repeat) ALL(repeat all) (cancel repeat) CD: TRACK(track repeat) ALL(repeat all) MP3: SINGLE REPEAT ONE REPEAT FOLDER FOLDER (cancel repeat) MPEG4: SINGLE REPEAT ONE REPEAT ALL REPEAT OFF(cancel repeat)
- Page 19 Remote Control Function ANGLE Press to switch the viewing angles. (Note: This function only works with the discs encoded with multiple camera angles.) V-MODE Press repeatedly to switch the video output modes between CVBS (OFF) and YUV. A-MODE Press repeatedly to switch the audio output modes between 5.1 CHANNELS OUTPUT and STEREO OUTPUT.
-
Page 20: Playback
JPEG PICTURE PLAYBACK Place a JPEG picture CD in the disc tray, then the unit will load the disc automatically. Press [ ] to enter the thumbnail mode to preview the pictures. In the thumbnail mode, use the direction keys to select a picture, then press [ENTER] to start the playback from the selected picture. -
Page 21: Troubleshooting
Troubleshooting If you have a problem with this device, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. Address COBY Electronics Technical Support 56-65 Rust Street... -
Page 22: Specifications
Power supply Power consumption Temperature Working Relative humidity environment TV System Frequency Range Disc output S/N(A weight) Dynamic Range THD+NOISE WOW FLUTTER AM frequency Range Tuner FM band Range Power output (Max) Frequency response Specifications AC ~110-120V/60Hz 210W -10~+40 5%~90% PAL/NTSC 20Hz~20KHz 80dB(...
