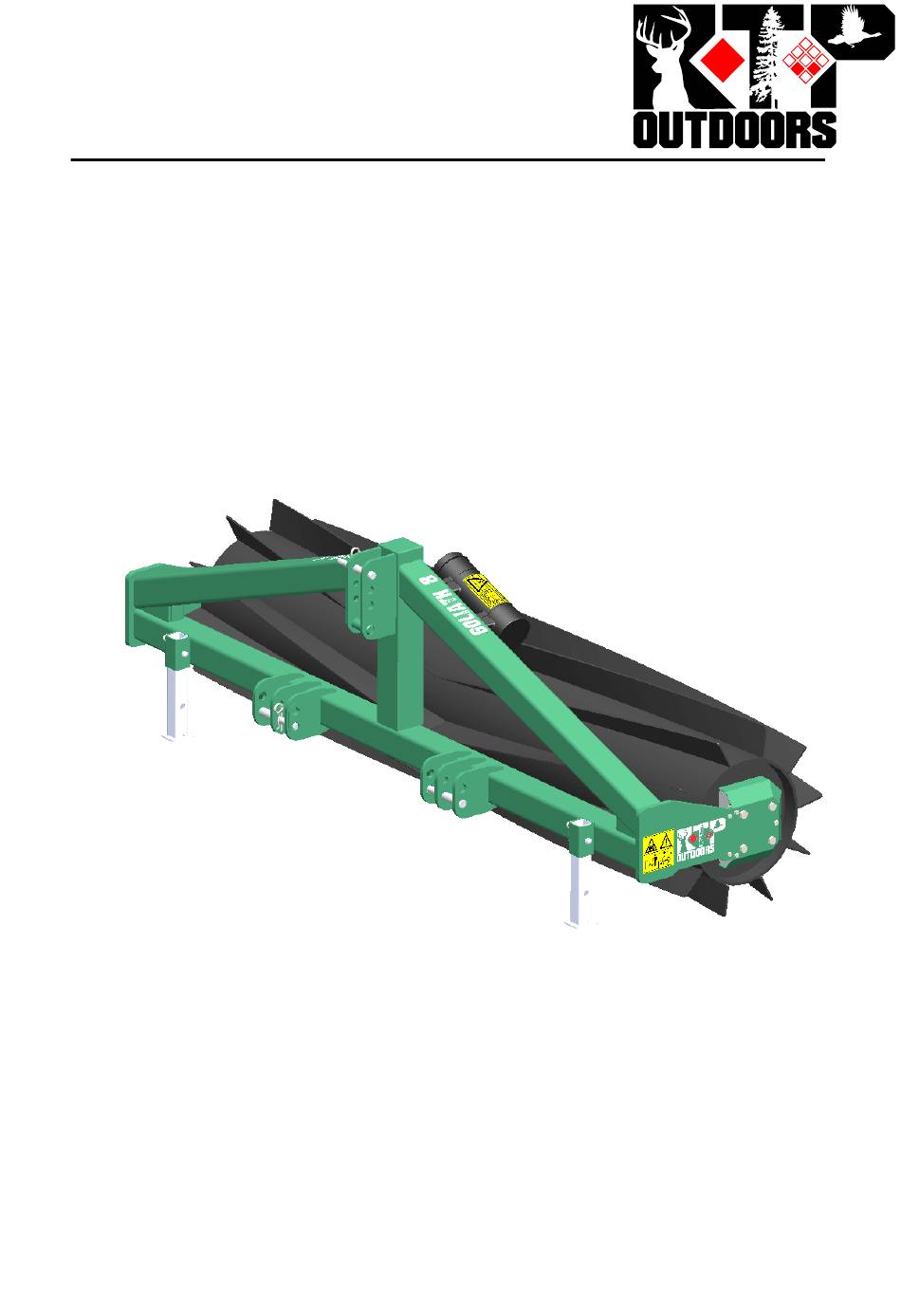

- Page 1 User Manual and Parts Book Goliath crimper roller 6-8-10 Original user manual Serial nr: 2038 English 954.120.000 427 West Outer Road Valley Park, MO 63088...
- Page 2 EU DECLARATION Redexim BV Utrechtseweg 127 3702 AC Zeist, Holland declare entirely under our own responsibility that the product: GOLIATH CRIMPER ROLLER WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND INDICATED IN THIS MANUAL to which this declaration refers, complies with the stipulation of the 2006/42/EC machine directive and the following norms: NEN-EN-ISO 12100:2010, NEN-EN-ISO 13857:2008, NEN-EN-ISO 4254-1:2015.
- Page 3 FOREWORD Congratulations on your Goliath crimper roller purchase. For safe and long-lasting operation of this machine, it is necessary to read and to understand this user manual. It is impossible to work safely with this machine without complete knowledge of the content of the user manual. This machine does not operate independently.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ................5 1.1. Obligations of the user ..................5 1.2. Maintenance, repairs and adjustments ............6 1.3. Using the machine ..................6 TECHNICAL DATA ..................7 GENERAL DESCRIPTION ................7 SAFETY STICKERS ..................7 FIRST INSTALLATION ................... 8 ATTACHING AND DETACHING THE MACHINE ........... -
Page 5: Safety Instructions
1. SAFETY INSTRUCTIONS This machine is designed for safe use. This can only be achieved if you completely follow the safety instructions described in this manual. Read and understand the manual before you start using this machine. If the machine is not used as described in this manual, this can result in injuries and/or damage to the machine. -
Page 6: Maintenance, Repairs And Adjustments
When unskilled people use, maintain or repair the machine, this could result in injuries to the user and to third parties. This should be avoided! Use only original RTP parts for maintenance or repairs because of the safety of the machine and of the user. -
Page 7: Technical Data
2. TECHNICAL DATA Type Goliath 6 Goliath 8 Goliath 10 Weight 1145 lbs 1410 lbs 1740 lbs Approximate weight 1994 lbs 2512 lbs 1575 lbs drum filled with water. 34.3”x101.1”x36.7” 34.3”x131.1”x36.7” Dimensions (L x W x H) 34.3”x77.1”x36.7” 96” (8 ft.) 126”... -
Page 8: First Installation
To remove the pallet and to place the machine horizontally on the ground, take the following steps (see Fig. 2): Fig. 2 Make sure that the cable/crane/lift can hoist minimal: Goliath 6: 1800 lbs Goliath 8: 2000 lbs Goliath 10: 2500 lbs 1. Attach a hoisting cable on the center beam of the machine (1). -
Page 9: Attaching And Detaching The Machine
6. ATTACHING AND DETACHING THE MACHINE Attaching and detaching the machine has to be done carefully. Follow the instructions below: Fig. 3 6.1. Attaching the machine Prior to attaching the machine, check the following points: Check whether the machine is undamaged and whether it is safe to attach and use the machine. -
Page 10: Detaching The Machine
6.2. Detaching the machine The machine should be detached in the following manner (see Fig. 3): 1. Place the tractor and the machine on a flat surface. !! Make sure that the tractor and the machine cannot move while you are detaching the machine !! !! Switch off the tractor engine before detaching the machine !! 2. -
Page 11: Maintenance
9. MAINTENANCE Time schedule Check point Work activities Before each use Check for loose bolts/nuts. Tighten the loose bolts/nuts with the correct torque. Presence and legibility of safety Replace if damaged or stickers (see Chapter 4) missing. After each use Clean the machine See chapter 9.1 After first 20 operating hours... -
Page 12: Trouble Shooting (Problem Analysis)
TROUBLE SHOOTING (PROBLEM ANALYSIS) Problem Possible cause Solution The drum doesn’t rotate Crop is tangled between the drum Remove the tangled crop. and bearing. The drum bearings are seized. Grease and try to get the bearings running again, if not possible replace. The tractor does not have Soil is too wet.
