Summary of Contents for Lectron Energy Meter
- Page 1 Energy Meter User Manual...

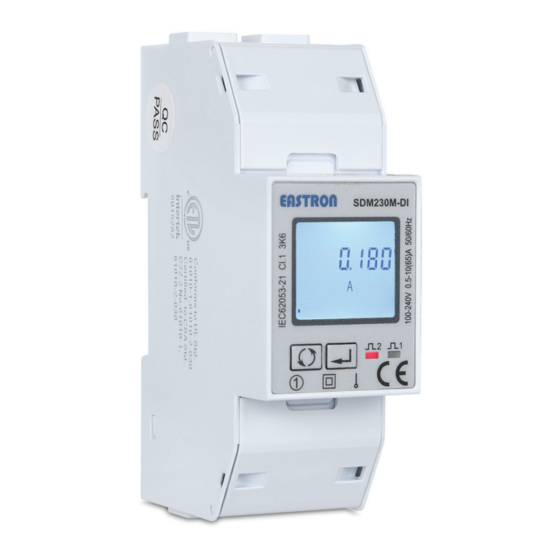

- Page 2 About the Lectron Energy Meter The Lectron Energy Meter allows you to measure how much electricity is used by your Lectron V-BOX Charging Station. In the Box 1 x energy meter Warnings 1. During normal operation, hazardous voltages may be present in some of the terminals of this unit.
- Page 3 Disclaimer 1. Installation should only be done by a qualified professional, following all local regulations. 2. This energy meter should never be used as the sole means of fault protection. 3. Install this energy meter after your main power supply.
- Page 4 LCD Display 1. energy measurement value 2. total value 3. import / export energy 4. maximum demand (loading current) 5. PF (power factor); Hz (frequency) 6. measurement of kVArh (reactive power) measurement of kWh (active power) 7. power level 8. time/duration 9.
- Page 5 How to Install Install the energy meter by connecting it between your electrical panel and your V-BOX. 1. Connect the ground wire from the electrical panel to the V-BOX. ground Page 4...
- Page 6 (not included). no. 1 port (top view) 3. Insert the neutral wire from the V-BOX into the no. 4 port at the bottom of the energy meter. Flip open the bottom compartment and tighten the screw. no. 4 port (bottom view)
- Page 7 2 port (top view) 5. Insert the live wire from the V-BOX into the no. 3 port at the bottom of the energy meter. Tighten the screw and close the compartment. no. 3 port (bottom view) V-BOX connect...
- Page 8 Buttons: Scroll Enter Note: When the energy meter is powered on, it will initiate a self check. After that, it will display the total kWh (active power). 1. total kWh 13. VAr (volts-amps 2.
- Page 9 Display Function / Description Order (example) total active energy import active energy export active energy total resettable energy Page 8...
- Page 10 total reactive energy import reactive energy export reactive energy total resettable reactive energy total max. power demand Page 9...
- Page 11 voltage current active power reactive power apparent power Page 10...
- Page 12 power factor frequency DI 1 -counting DI 2 -counting modbus address Page 11...
- Page 13 (in total) Setup Mode To go into setup mode and adjust the settings of your energy meter, press and hold the "enter" button for 3 seconds. Display Value / Description Order (example) Password You will first be asked to enter a password.
- Page 14 Address ID Default ID is 001 Range: 001 - 247 Press the "enter" button and the red digit will flash. Press the "scroll" button to change the value. Then, press and hold the "enter" button to confirm. Baud rate Default value: 2400bps Range: 1200, 2400, 4800, 9600, 19200 bps.
- Page 15 Press the "enter" button and the red digit will flash. Press the "scroll" button to change the value. Then, press and hold the "enter" button to confirm. Parity Default: None Option ： None, Even, Press the "enter" button and the red digit will flash.
- Page 16 Demand Integration Time* Default: 15 minutes Option: OFF / 5 / 10 / 15 / 30 / 60 min *energy consumption period Press the "enter" button and the red digit will flash. Press the "scroll" button to change the DIT option.
- Page 17 Press the "enter" button and the red digit will flash. Press the "scroll" button to change the time interval option. Then, press and hold the "enter" button to confirm. Backlight duration: Default: 60 minutes Option: OFF / 5 / 10 / 20 / 30 / 60 min Press and hold the “enter”...
- Page 18 Clear Press and hold the “enter” button to clear the interface. To clear the max demand of active power, press and hold the "enter" button. To clear the resettable energy, press the "scroll" button to go into the energy reset page.
- Page 19 Resetting the Password Press the "enter" button and the red digit will flash. Press the "scroll" button to change the value. After selecting a new password, press and hold the "enter" button to confirm. DI- filtering time Default: 100 mS Press the "enter"...
- Page 20 Specifications Voltage: 100 - 240 V AC Frequency: 50 / 60 Hz (±10%) Base current: 10 A Maximum current: 100 A Display: LCD with white backlight Maximum reading: 999999.9 kWh / kVArh Power consumption: <2W / 10VA Operating temp: -13 ºF to 158 ºF Weatherproof rating: IP51 (indoor) Dimensions:...
- Page 21 Get More Support Scan the QR code below or email us at: contact@ev-lectron.com. www.ev-lectron.com Made in China...
