Summary of Contents for Linkzone Technology V20

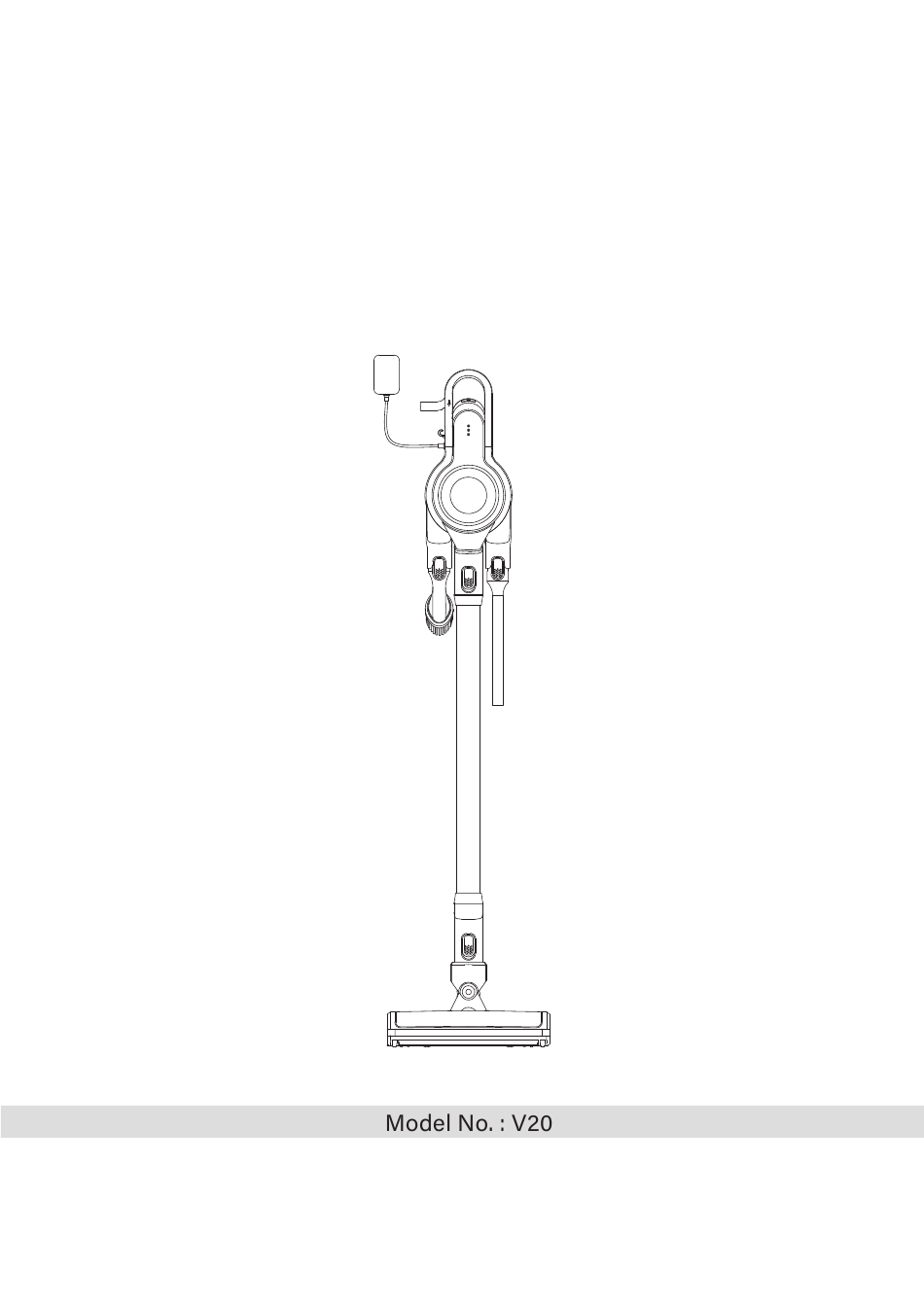

  • Page 1 Cordless Vacuum Cleaner User Manual...
  • Page 2 CONTENT...

  • Page 3: Important Safety And Environmental Instructions

    Please read this guide first! Dear Customer, Thank you for choosing Ganiza product. We would like you to achieve the optimal efficiency from this high-quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference.
  • Page 4 1.14 To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper. 1.15 Use the appliance with the HCX HCX1501-2700500U adapter delivered with the appliance only. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 5 2. Battery 2.1 The battery pack should not be placed near excessive heat sources, such as fire. Avoid storing the battery pack in the direct sunlight.Exposure to fire or temperature above 130°C may cause explosion. 2.2 The supply terminals are not to be short-circuited.Shorting the battery terminals together may cause burns or a fire.

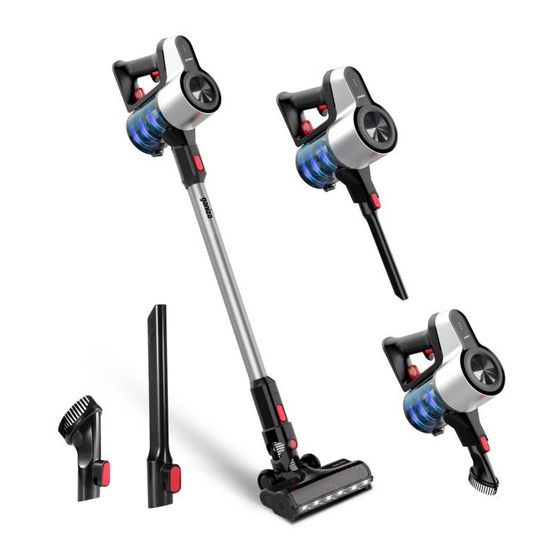

  • Page 6 3. Overview Main Unit (included Battery Pack) HEPA Filter Filter Screen Dust Cup Charger Dusting Brush Aluminum Tube Assy Charger Stand Floor Brush Crevice Tool Screw package for wall mount...

  • Page 7: Installation

    4. Installation For the convenience of transportation and storage, main unit, floor brush, aluminum tube assy. wall-hung rack, charger, dusting brush and crevice tool packaged respectively on account of relatively large. Please be advised that users should follow the steps below for assembling when they use the product for the first time. 4.1 Aluminum Tube and Brush assembly Press the electric turbo brush release button No.
  • Page 8 5. Operating Instruction 5.1 Overall Unit Press the power switch NO.1 to start the machine and enter the working state, see figure 5-1; Clean the floor or carpet when rolling brush works, and push the speed-control button NO.2 to switch high and low gears as the initial default setting is low gear.
  • Page 9 5. Operating Instruction Figure 5-5 Figure 5-6 5.3 Crevice Tool and Dusting Brush Operation The crevice tool NO.1 is for cleaning the rear of furnitures, hard to reach areas and narrow areas, dusting brush NO.2 mainly for curtains, waxed furniture and delicate and fragile objects;...

  • Page 10: Battery Charging

    6. Battery Charging 6.1 Charging mode showed as in figure 6-1. The square hole No. 2 is behind the body of the appliance which need to be hanged into the charger stand No 1. The charger indicator shows white light flashing and the light will last one minute on after fully charged, the charging time is about 4-6 hours.
  • Page 11 7. Cleaning & Maintenance 7.2 Hold the filter bin handle NO.3 and pull the filter NO.4 out of dirt bin; Wash the dust cup under a tap if necessary then wipe it dry completely before using. Figure 7-2 Figure 7-3 7.3 Hold the filter bin handle NO.3 to rotate counterclockwise.
  • Page 12 7. Cleaning & Maintenance 7.5 If the brush bar jams during use, press the brush roll release button NO.7 and rolling brush NO.8 automatically pop up, then pull it out from the side. Figure 7-7 7.6 To remove hair from the brush bar, run a razor blade down the groove to cut the hair the pull it off, then re-insert back to the floor brush.

  • Page 13: Warranty

    8. Storage Figure 7-9 Product Care: please be advised that you may clean the dust cup after using every time; Wash or replace it if too much dust or blockage; remove hair from the brush bar if jams and keep it tangle-free after use in a long time so that the vacuum cleaner work more efficiently.
  • Page 14 Model number S/N number Purchased from Date of Purchase Linkzone Technology Co., Limited ROOM 510 5/F WAYSON COMMERCIAL BLDG 28 CONNAUGHT ROAD WEST SHEUNG WAN HK service@ganiza.com www.ganiza.com...
