Summary of Contents for MASHIN VAT-650

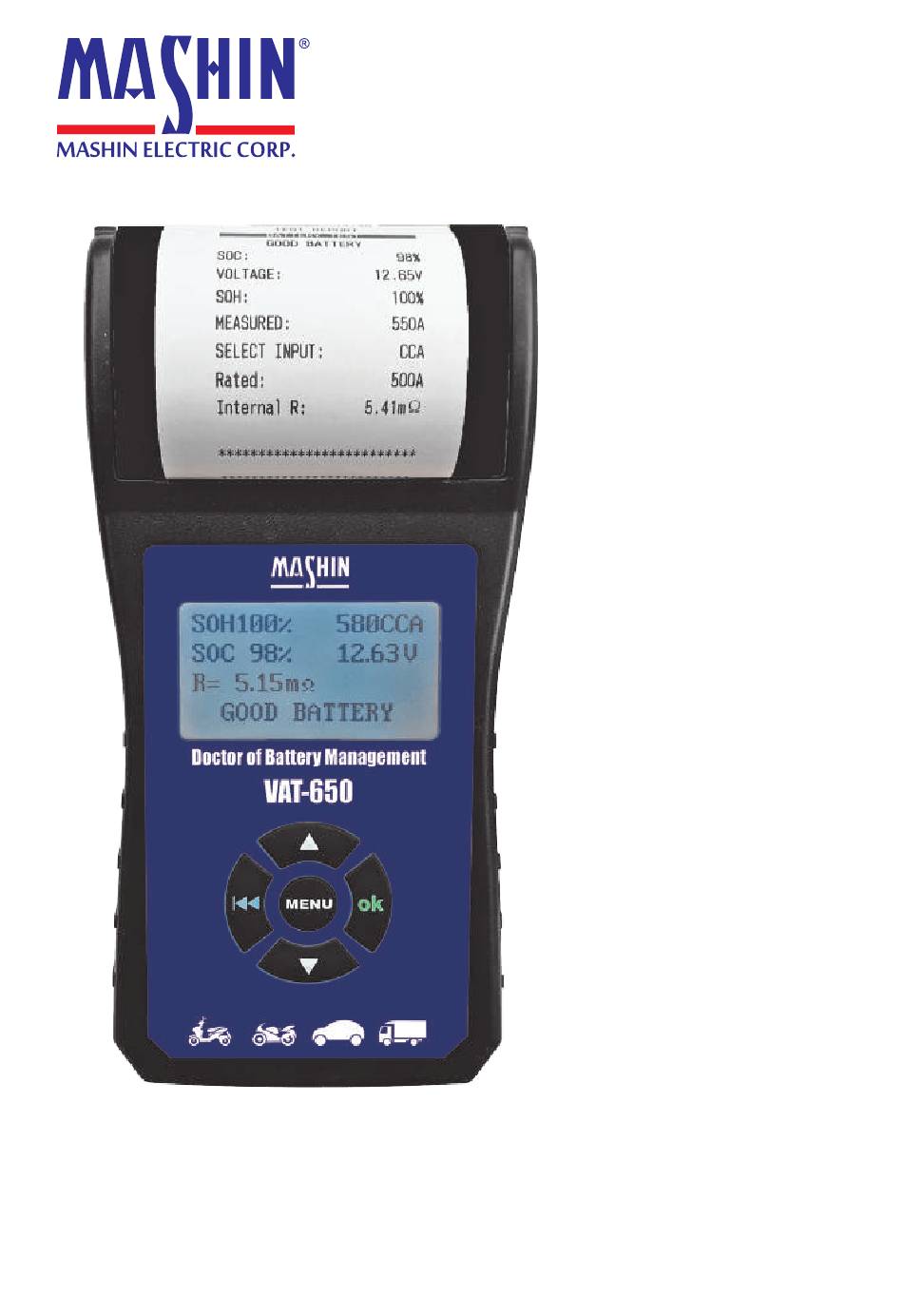

- Page 1 VAT-650 USER GUIDE...
- Page 2 French (ANFOR) ISO-9001 and be the Japan PSE and U.S. UL certified factory. Since the factory established, Mashin has actively built up our own brand and strives to develop the best products on a daily basis. It wasn’t easy to keep the faith after several decades, but we did.
- Page 3 ◆ Only available for 12V lead-acid batteries. Mashin will have no responsibility for the followings: ◆ This manual is designed for Mashin´s Analyzer only. Any consequence caused by using this manual to other products. ◆ Any damages or problems that casued by using other accessories or consumables instead of Mashin´s original products.
-
Page 4: Table Of Contents
VAT - 650 Lead-acid Battery Analyzer User Manual Contents ◆ Chapter 1 Product Summary ■ Product Profile ■ Function ■ Technical Parameters ■ Environmental Requirement ◆ Chapter 2 Parts Indicator ◆ Chapter 3 Operation ■ Pre-Test ... -
Page 5: Chapter 1 Product Summary
Chapter 1 Product Summary Product Profile ■ VAT-650 Lead-acid Battery Analyzer adopts the world's most advanced conductance testing technology which can easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, state of battery health, and common faults of the vehicle starting and charging system. -
Page 6: Technical Parameters
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Technical Parameters ◎ Cold Cranking Amps Measure Range: 測量標準 測量範圍 Measure Standard Measure Rate 100 - 2000 100 - 1400 26A17 - 245H52 100 - 2000 100 - 1400 30 - 220 100 - 2000 100 - 2000 100 - 2000... -
Page 7: Chapter 2 Parts Indicator
VAT - 650 Lead-acid Battery Analyzer User Manual Chapter 2 Parts Indicator VAT-650 Lead-acid Battery Analyzer consists of a main device, testing wire sets and the printer. -
Page 8: Chapter 3 Operation
VAT - 650 Lead-acid Battery Analyzer User Manual Chapter 3 Operation ■ Pre-Test ● Please clean battery poles before using. ● Please make sure clamps and battery are well-connected. ● Before testing, please make sure the engine stopped and the door closed. ■... -
Page 9: Button Indicator
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Button Indicator ● （UP & DOWN） ● （BACK） ● （OK） ● （MENU） Press MENU for additional functions. Analyzer Startup ■ The Battery Tester will startup automatically when the clamps are well-connected. 12.64V The battery voltage will show at the bottom of screen which can be used as DC Voltmeter. -
Page 10: Battery System Standard And Rating
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Battery System Standard and Rating Please select the SYSTEM STANDARD and RATING according to the information showed on the battery, as the arrow indicated below: CCA：Cold Cranking Amps, specified by SAE & BCI DIN：German Institute for Standardisation JIS：Japanese Industrial Standard, displayed on the battery as combination of the numbers and letters, e.g. -
Page 11: Battery Test
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Battery Test Press to get into the MAIN MENU and select BATTERY TEST（1/5）then press MAIN MENU BATTERY TEST Press to select your BATTERY TYPE then press SELECT BAT. TYPE REGULAR FLOODED SELECT BAT. - Page 12 VAT - 650 Lead-acid Battery Analyzer User Manual Then press to select SYSTEM STANDARD. SELECT STANDARD SELECT STANDARD 1/10 10/10 SELECT STANDARD SELECT STANDARD 2/10 9/10 SELECT STANDARD SELECT STANDARD 3/10 8/10 SELECT STANDARD SELECT STANDARD 4/10 7/10 SELECT STANDARD SELECT STANDARD 5/10 6/10...
- Page 13 It takes around 3-5 seconds for testing and the result will come out. SOH 100% 210CCA SOC 93% 12.65V INT.R= 14.20mΩ GOOD BATTERY Then press to print the result. VAT-650 2017-03-15 13:03 TEST REPORT PRINT？ BATTERY TEST GOOD BATTERY SOC： VOLTAGE： 12.56V SOH：...
- Page 14 VAT - 650 Lead-acid Battery Analyzer User Manual ■ Battery Test Result There will be 5 different situations as follows： ① Good Battery SOH 96% 490CCA SOC 98% 12.64V INT. R= 5.8mΩ GOOD BATTERY NOTE：SOH：State Of Healthy SOC：State Of Charge ②...
- Page 15 VAT - 650 Lead-acid Battery Analyzer User Manual ④ Bad Cell, Replace SOH 0% 310CCA SOC 0% 10.04V INT. R= 25.7mΩ BAD CELL-REPLACE Replace the battery ⑤ Charge, Re-test SOH 50% 310CCA SOC 50% 12.08V INT. R= 18.5mΩ CHARGE-RETEST Unstable battery, please charge and re-test. If it still comes out the same result, the battery is damaged, replace it.
-
Page 16: Cranking Test
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Cranking Test Select CRANKING TEST（2/5）in the MAIN MENU and press MAIN MENU CRANKING TEST Please follow the instruction and start your engine : CRANKING TEST START ENGINE Once detecting the RPM, the testing will begin automatically and comes out the result. CRANKING TEST CRANKING TEST CRANKING TEST... - Page 17 VAT - 650 Lead-acid Battery Analyzer User Manual After testing, press to print the result. PRINT？ VAT-650 2017-03-15 13:03 TEST REPORT PRINTING CRANKING TEST CRANKING VOLTAGE NORMAL CRANKING VOLTAGE : 11.19V CRANKING TIME : 644ms ***************** *****************...
-
Page 18: Charging Test
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Charging Test Select CHARGING TEST（3/5）in the MAIN MENU and press MAIN MENU CHARGING TEST ※ Please start the engine and make sure all the electronic devices are turned off. If there is any electronic device not in OFF position during the test which could affect the accuracy of the result. - Page 19 It will come out the result : CHARGING NORMAL NO-LOADED 14.43V LOADED 13.79V RIPPLE NORMAL Then press to print the result. PRINT？ VAT-650 2017-03-15 13:03 TEST REPORT PRINTING CHARGING TEST CHARGING VOLTAGE NORMAL NO-LOADED : 14.43V LOADED : 13.79V RIPPLE : 25mV...
-
Page 20: Charging Test Result
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Charging Test Result ① Charging Voltage：Normal No problems detected. ② Charging Voltage：Low Please check if alternator system is well-connected. Otherwise, the alternator might be faulty. ③ Charging Voltage：High Normally the highest voltage for stabilizer will not over 14.7±0.5V, otherwise, please check if the alternator is faulty. -
Page 21: Review Data
VAT - 650 Lead-acid Battery Analyzer User Manual ■ Review Data Select REVIEW DATA（4/5）in the MAIN MENU then press MAIN MENU REVIEW DATA Press to see the testing result for BATTERY TEST, CRANKING TEST and CHARGING TEST. SOH 100% 210CCA CHARGING NORMAL CRANKING TEST... -
Page 22: System Setup
VAT - 650 Lead-acid Battery Analyzer User Manual ■ System Setup ■ Language User can change language according to their requirement, such as Traditional Chinese, Japanese and English...etc. Press to get into SYSTEM SETUP and select LANGUAGE（1/2）then press to confirm. SYSTEM SETUP LANGUAGE User can select different language through pressing... -
Page 23: Chapter 4 Troubleshooting
■ The display does not turn on? ● Check if analyzer and battery are well-connected or revere polarity. ● Check if testing cables are dropped off or broken. MASHIN ELECTRIC CORP. 。 TEL：06-5702066 。 FAX：06-5702840 。 E-MAIL：mashin@mashin.com.tw 。 ADDRESS：10-33, Dashanjiao, Madou Dist., Tainan City 721, TAIWAN... - Page 24 www.m ashin.c o m.tw Ver.171207_A...
