Summary of Contents for KTC AE401

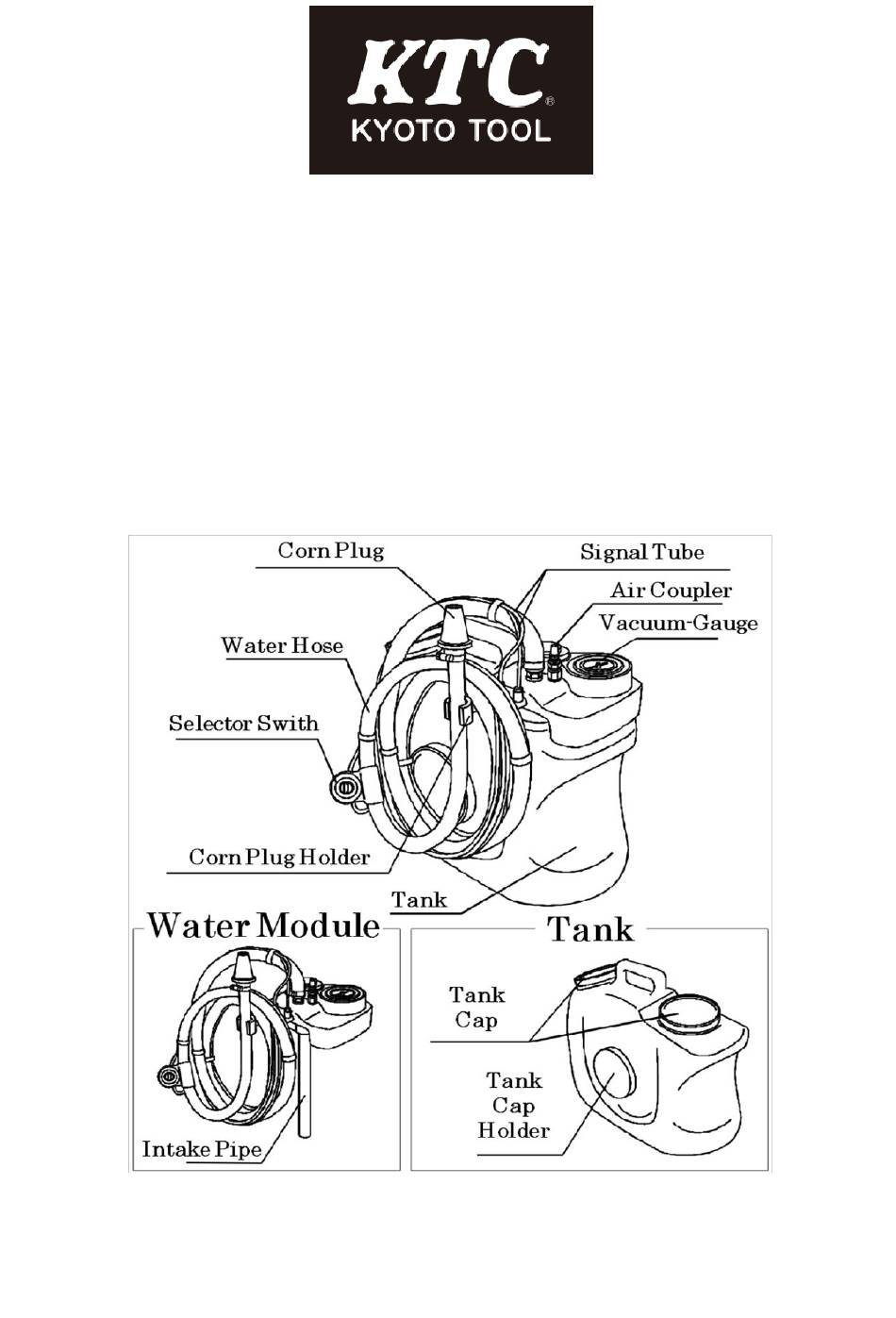

- Page 1 AE401 COOLANT CHARGER INSTRUCTION MANUAL Name of Parts...
- Page 2 Assembling Method 1. Deeply insert Water Hose to Hose Nipple. 2. Securely connect White Signal Tube with White One Touch Coupler, and Blue Signal Tube with Blue One Touch Coupler. 3. Anchor a Hose Band to Air Coupler Hose by using Screwdriver. Preparation 1.
- Page 3 4. Injecting Coolant (1) AE401 automatically starts injecting Coolant after Selector Switch is moved to CHARGE. (2) Coolant Injecting work is finished when Vacuum-Gauge reaches to ZERO and stop.
- Page 4 Maintenance 1. Remove an Air Hose, and reel up a Water Hose then attach to the Corn Plug Holder. 2. In case of feeble pressure, cleaning below filters is needed. Desorb Tank 1. Lift up a Water Module with two hands after pulling up the Lock Lever. 2.
