K&M 8494 Installation Manual

1. Locate the four holes on the underside of the left side fender. Remove the plastic caps and push
through with a Phillips screwdriver to mark the holes on the inside of the cap perpendicular to the
fender.
2. Use a spacer as a guide to cut the foam around the holes marked in Step 1.
3. Place the four spacers into the holes made in step 2. Use the 3" spacers toward the inside of the
cab and the 2" spacers toward the outside of the cab.

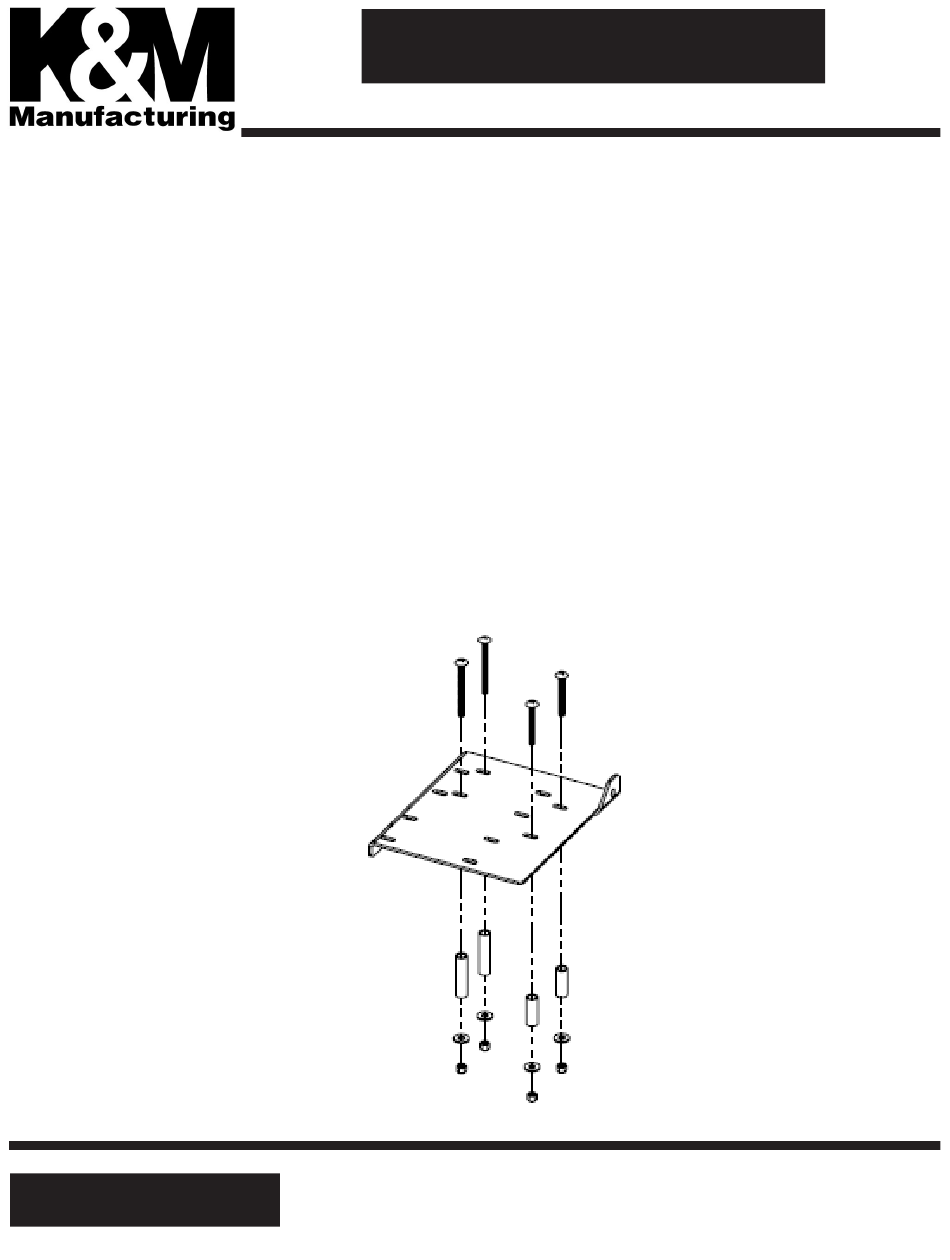

4. Insert the two 3/8" x 3" carriage bolts and the two 3/8" x 4" carriage bolts into the holes in the
11000 mounting plate marked on the drawing below.
5. Bolt the seat to the 11000 mounting plate with four 3/8" x 3/4" carriage bolts and flange nuts. Note:
There are two different height setting available for the seat.
6. Insert the seat mounting bolts into the spacers and through the cab fender. Fasten with flat wash-
er and flange nut on the bottom side of the fender. Insert the seat mounting bolts into the spacers
and through the cab fender. Fasten with flat washer and lock nut on the bottom side of the fender.
7. Unfold the seat and check to make sure the seat sits level. If it tips back, remove the seat and
mounting plate and proceed to step XX to install the angle brackets. If the seat is level proceed to
step XX to finish the assembly.
Technical Support
Installation Guide

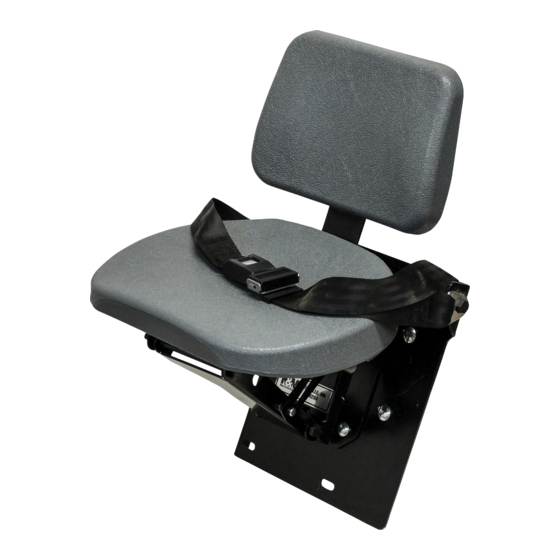

CIH Instructional Seat Installation (PN: 8494)
Phone: 1.800.328.1752 / Website: www.tractorseats.com
1
