Summary of Contents for Umount 10018

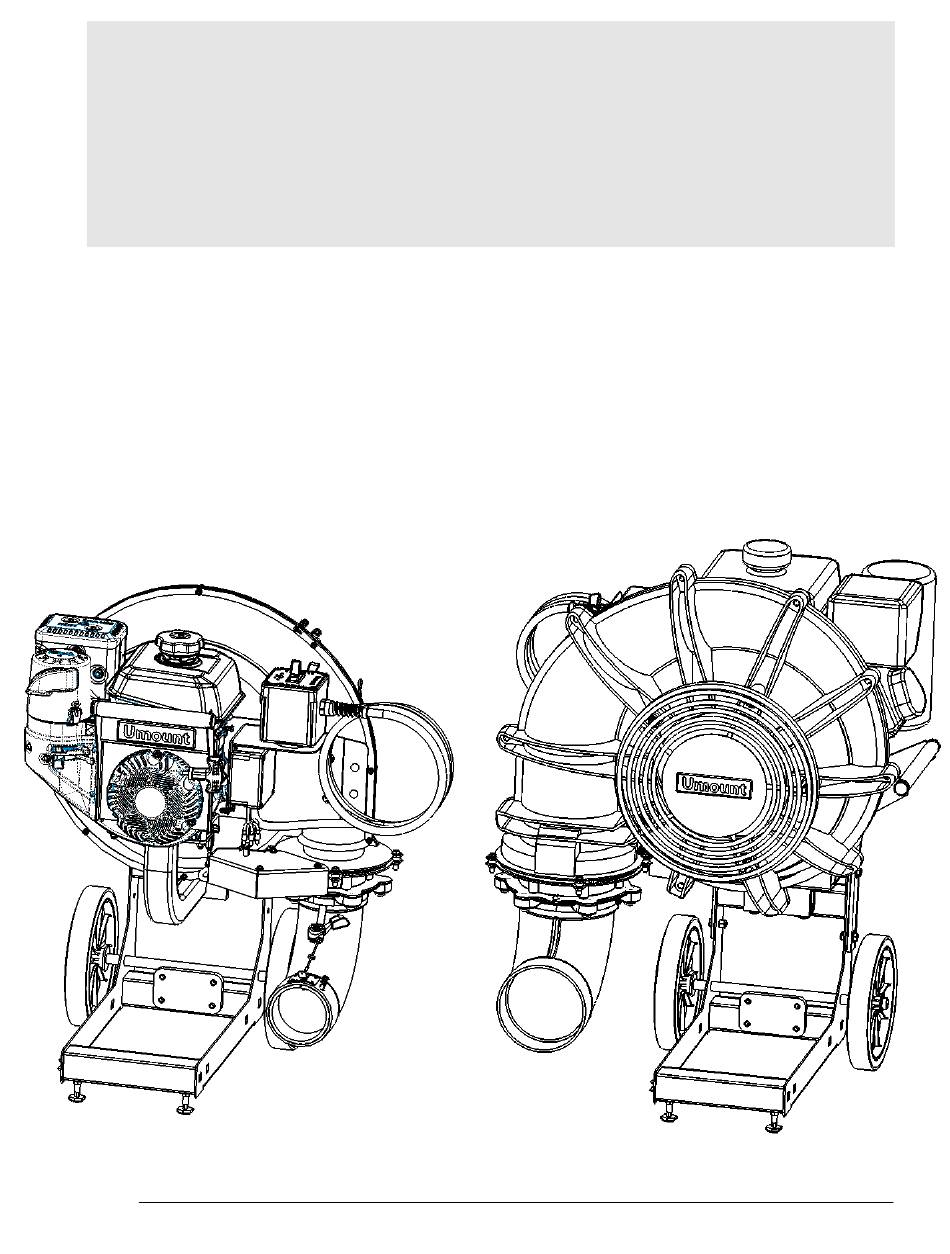

- Page 1 Umount Front Mount Blower 7hp and 14hp Owner’s Manual Front Mount Blower (12-2022)
-
Page 2: Table Of Contents
Umount 734 Washington Ave, Holland, MI 49423 E-mail: info@umountblowers.com Website: www.umountblowers.com Table of Contents SPECIFICATIONS ................3 SERIAL LABEL LOCATION ..............4 BLOWER OVERVIEW ................5 SAFETY ....................6 CONTROL BOX FUNCTIONS .............. 9 BLOWER ASSEMBLY – 14hp Models ..........10 BLOWER ASSEMBLY –... -
Page 3: Specifications
SPECIFICATIONS Models Models 10018 (Hand Control 7hp) 10845 (Hand Control 14hp) 10681 (Foot Control 7hp) 10867 (Foot Control 14hp) Engine Manufacturer Kohler Kohler Model CH270 CH440 Horse Power 7 hp 14 hp CC’s 208cc 429cc Electrical 10 amp 10 amp... -
Page 4: Serial Label Location
SERIAL LABEL LOCATION Serial number label location (Located below engine) Front Mount Blower (12-2022) -
Page 5: Blower Overview
BLOWER OVERVIEW 7hp Models 14hp Models Blower Assembly Control Assembly **Hand Control **Foot Control **Hand Control **Foot Control Nozzle Assembly Cart Assembly **Includes handle Front Mount Blower (12-2022) -
Page 6: Safety
SAFETY WARNING: Used in this manual, this symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. - Page 7 • Exercise caution when operating blower. Do not allow the discharge to point in the direction of bystanders or pets. • If your machine should start making an unusual noise or vibration, immediately stop the engine, disconnect the spark plug wire and move the wire away from the spark plug. Allow the machine to stop and take the following steps: Inspect for damage.
- Page 8 Stopping Engine • To stop engine, depress OFF button until engine fully shuts off. Starting Engine • Check the engine oil. If necessary, add oil. See the engine owner’s manual for instructions. • Move the choke lever on engine to CHOKE position. (A warm engine may not require choking.) •...
-
Page 9: Control Box Functions
CONTROL BOX FUNCTIONS HAND HAND CONTROL CONTROL 1 – Nozzle Rotation 2 – Throttle 3 – Engine Stop Button FOOT CONTROL Front Mount Blower (12-2022) -
Page 10: Blower Assembly - 14Hp Models
BLOWER ASSEMBLY – 14hp Models ITEM PART NO. QTY. DESCRIPTION 10850 WLDT, MOTOR MOUNT, LARGE SIZE 10024 MOUNT, CARRIER, FEMALE 10847 ENGINE, 14HP, KOHLER CH440 - 3275 10814 BLOWER, HOUSING, INLET, LARGE 10815 BLOWER, HOUSING, ENGINE MOUNT, LARGE 10818 PLATE, MOUNT, LARGE HOUSING 10821 WLDT, NOZZLE ADJUSTMENT, LARGE SIZE 10853... -
Page 11: Blower Assembly - 7Hp Models
BLOWER ASSEMBLY – 7hp Models ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 10019 M OUNT WLDT, ENGINE 10280 WASHER, BACK-UP, .19 RIVET, .50D 10024 M OUNT, CARRIER, FEM ALE 10281 PIN, CLEVIS, .18D 1.0 USABLE, QUICK RELEASE 10029 BRACKET WLDT, ELBOW POSITION 10288... -
Page 12: Nozzle Assembly - 14Hp Models
NOZZLE ASSEMBLY – 14hp Models ITEM PART NO. QTY. DESCRIPTION 10797 PLATE WLDT, ELBOW ADJUSTMENT, 6IN 10005 SPACER, .25B .50D .313T 10808 BRACKET, ELBOW MOTOR MOUNT, 6IN 10856 GEAR, NOZZLE ROTATION, 6IN, W INSERTS 10802 PLATE, MAGNET, 6IN 10804 PLATE, MOUNT, MAGNET, ELBOW, 6IN 10803 ELBOW, 6.0 DIA, 90DEG 10015... -
Page 13: Nozzle Assembly - 7Hp Models
NOZZLE ASSEMBLY – 7hp Models ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 10352 KNARP, CABLE 10002 PLATE WLDT, ELBOW ADJUSTMENT 10414 STRAP, SLEEVE, ELBOW 10005 SPACER, .25B .50D .313T 10254 WASHER, .281B .625D 0.6T, SS 10720 BRACKET, ELBOW MOTOR MOUNT 10255 SCREW, HEX, .25-20 X 1.25, ZC 10006... -
Page 14: Hand Control Box Assembly
HAND CONTROL BOX ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 10254 WASHER, .281B .625D 0.6T, SS 10255 SCREW, HEX, .25-20 X 1.25, ZC 10257 NUT, HEX, LCK, .25-20, NY, ZC 10290 SCREW, TRS, 10-24 X .75, ZP 10291 NUT, HEX, LCK, 10-24, ZP LABEL, CONTROL BOX, THROTTLE, DIRECTION, 10308 LOGO... -
Page 15: Foot Control Box Assembly
FOOT CONTROL BOX ASSEMBLY **Complete Assembly PART NO. DESCRIPTION 10664 FOOT CONTROL ASSEMBLY 7HP 10664-14 FOOT CONTROL ASSEMBLY 14HP Front Mount Blower (12-2022) -
Page 16: Cart Assembly
CART ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 10022 MOUNT, CARRIER, MALE 10042 CART WLDT 10043 WHEEL, 10.0D 1.25W 10046 LEVELER, .31-18 X 3.30 , STL THD, NYL BASE 10253 SCREW, FHSCS, .38-16 X 1.00, NL, BK 10264 CAP, PUSH RING, .63 10275 NUT, HEX, FLNG LCK, .31-18 10869... -
Page 17: Control Box Mount
CONTROL BOX MOUNT (Included Hand Control Blowers) Aftermarket Control Box Mount (INCLUDES EVERYTHING BELOW) Part# 10350 Front Mount Blower (12-2022) -
Page 18: Vehicle Mounts
VEHICLE MOUNTS Features Umount Quick Attach System Front Mount Blower (12-2022) -
Page 19: Accessories
ACCESSORIES All work the Umount vehicle mounts Quick Attach system Front Mount Blower (12-2022) -
Page 20: Electrical Schematic - 7Hp
ELECTRICAL SCHEMATIC – 7hp Front Mount Blower (12-2022)
