- Page 1 Season Wireless – User Manual www.duolabs.com – All rights reserved Season Wireless User Manual English - April 2005 -...

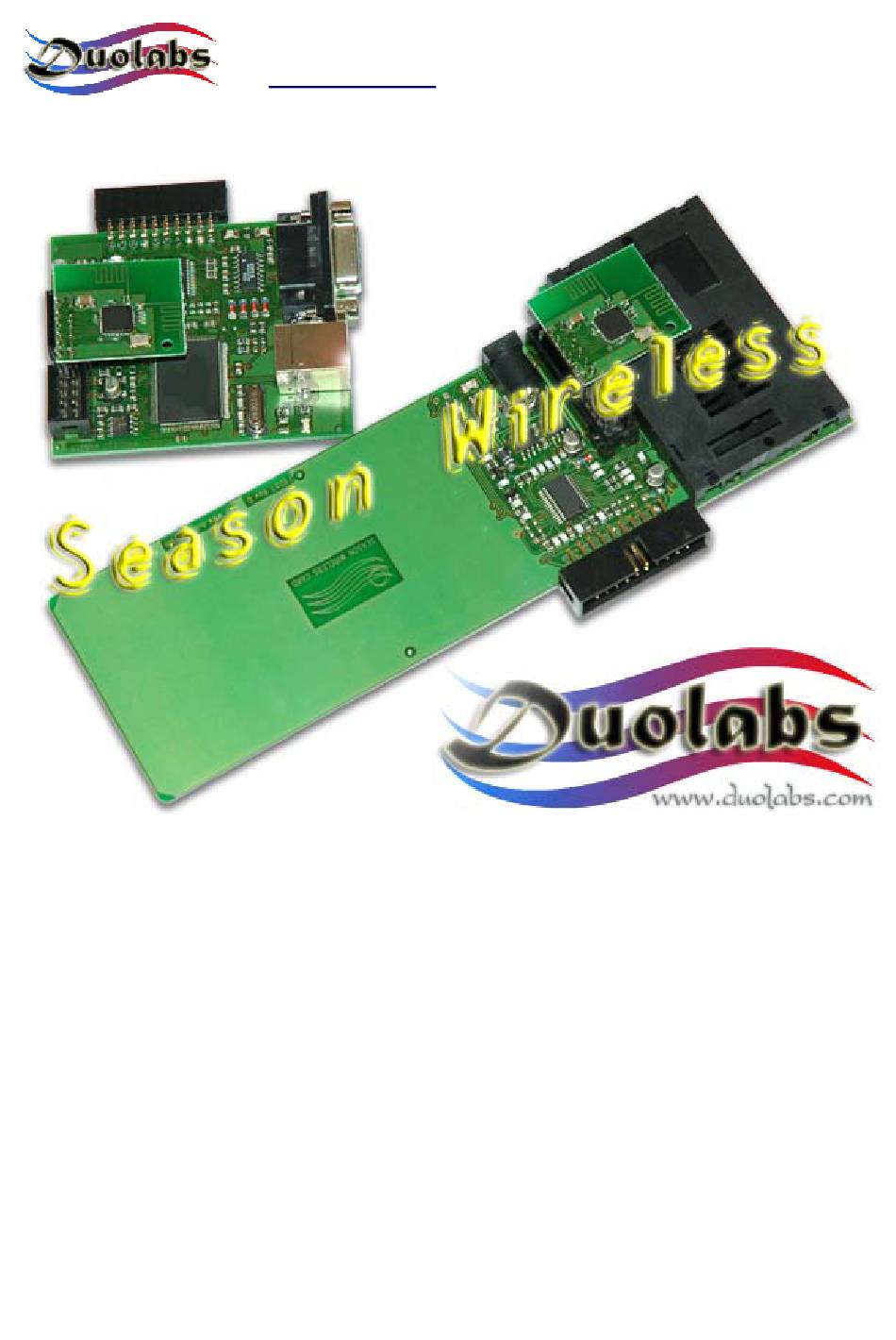

- Page 2 – All rights reserved Premise Season Wireless is a smartcard traffic analyzer and a useful support tool for developers of smartcard emulators. This device is the natural evolution of Season Logger 2, which can be connected to PCs by means of an RS-232 serial cable.

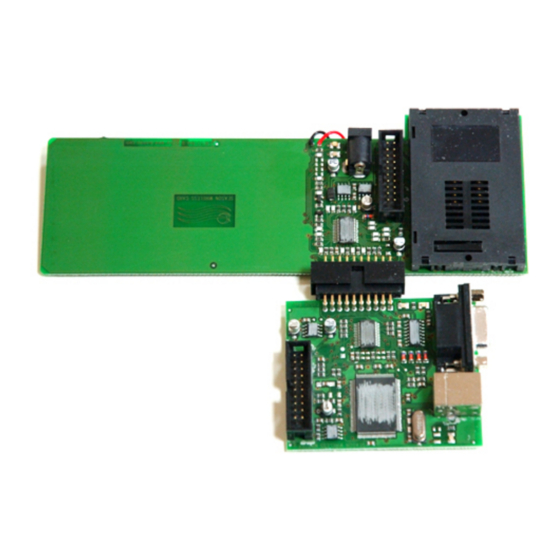

- Page 3 Season Wireless – User Manual www.duolabs.com – All rights reserved Connections The Slave needs to be connected to an external 9 V power supply. Therefore, the card has a standard power connector and a small connector for the connection of the 9 V battery. The Slave also has a connector for the insertion of the smartcard, which is used to log the traffic between the smartcard and the remote device.
- Page 4 – All rights reserved Software Season Wireless is supplied with a software for PCs that can be used to setup and upgrade the Slave and Master. This software requires the use of Windows operating systems. The device can operate correctly only if the Slave is powered at 9 V, the Master...
- Page 5 Season Wireless – User Manual www.duolabs.com – All rights reserved Click Read Configuration to display the initial settings of the device. The settings are displayed only if both components are powered and if the two antennas are correctly inserted in their respective slots.
- Page 6 Season Wireless – User Manual www.duolabs.com – All rights reserved Communication Setting: to select the settings for serial and ATR • communications sent to the remote device. Click Device Version to display the firmware version of the Slave and Master.
- Page 7 Season Wireless – User Manual www.duolabs.com – All rights reserved Click Read ATR to quickly display only the ATR that has to be sent to the remote device. Click Logger or Season in the Setting Mode pane to temporarily select an operating mode.
- Page 8 Therefore, to be able to carry out one of these two operations, it is sufficient to use a file with the last version of the firmware of Season Wireless, usually with an “.SWR” extension. To load the file, click the button that represents the open yellow folder.
- Page 9 Season Wireless – User Manual www.duolabs.com – All rights reserved clicking WIRELESS Setting, Functions and Communication Setting. The settings can be read, edited and saved in the same file, so that they are available in future, by simply clicking the icon that represents a floppy disk.
- Page 10 Season Wireless – User Manual www.duolabs.com – All rights reserved A progress bar displays while the upgrade process in progress And the yellow LED flashes on both components (first on the Slave, then on the Master). The lower section of the software pane displays two buttons, Hide and Exit, which can be used to hide the software dialog and close the application.
- Page 11 2.4 GHz. Q: Does Season Wireless interfere with other wireless equipment? A: Season Wireless has a low emission power, equal to 0 db. Therefore, it can be used without the authorization of regulatory bodies. However, it is not...
- Page 12 Season Wireless – User Manual www.duolabs.com – All rights reserved possible to exclude possible interferences with other equipment that uses the same frequencies.
- Page 13 Season Wireless – User Manual www.duolabs.com – All rights reserved Technical specifications Range: up to 200 meters (this range cannot be guaranteed as it varies • according to the location; see F.A.Q.) Wireless communication speed: 64 Kbit/sec. • Reception/Transmission buffer: 50 byte •...
- Page 14 General information Duolabs Srl declines all responsibility for damages originating from the failure or the improper use of Season Wireless. Duolabs Srl shall accept returned products only if these have been used in compliance with the instructions provided in this manual or on Web site www.duolabs.com.
