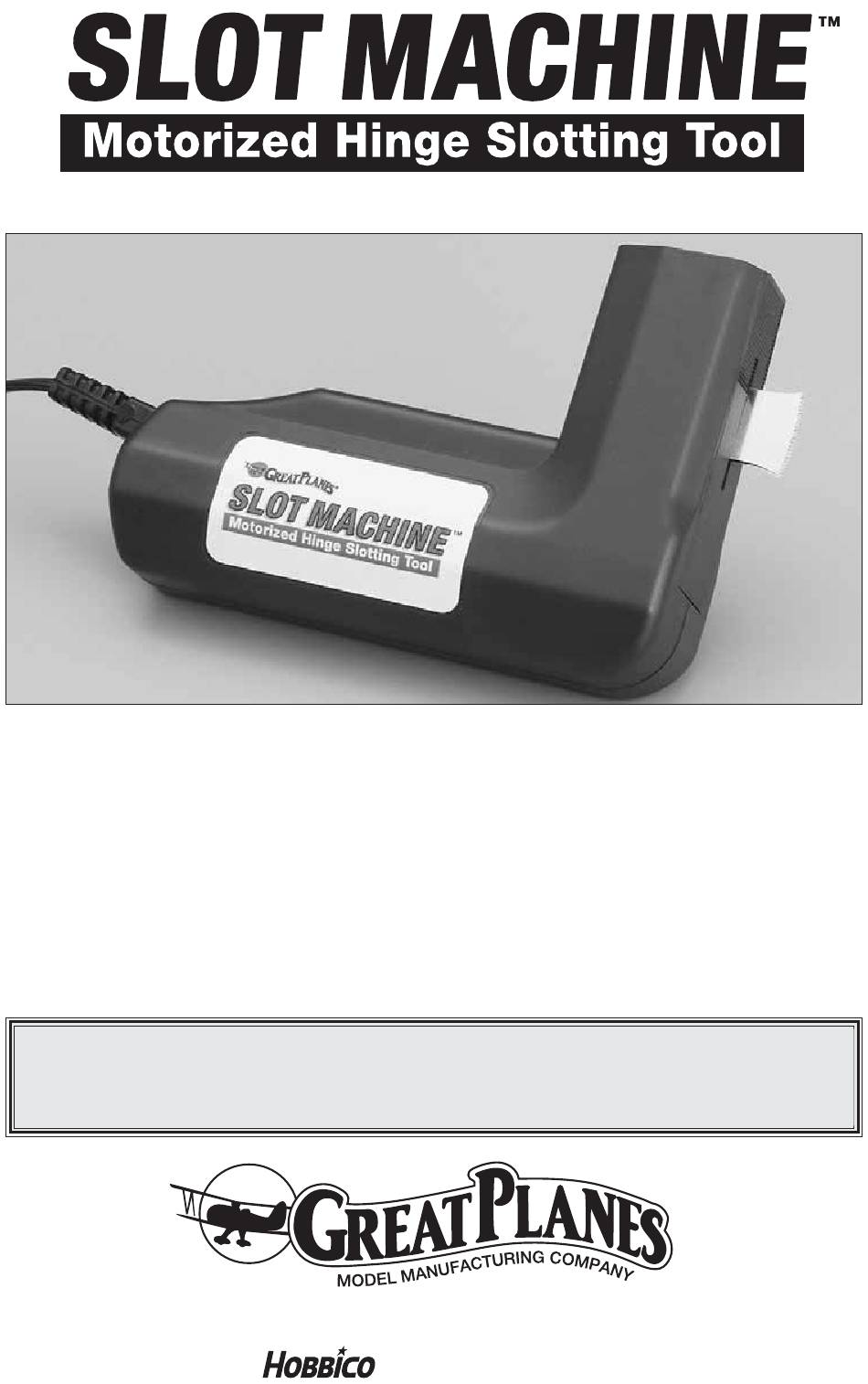

Congratulations on your purchase of the Great Planes SLOT MACHINE, the first
truly easy way to cut hinge slots in your model airplanes.
The Slot Machine you have purchased is equipped with blades, each having a
thickness of .008" [0.2mm], which cut slots that are ideal for today's CA hinges. If
you need to cut thicker slots for pinned hinges or tailgear brackets, etc., you may
want to purchase the .012" [0.3mm] blades, which have larger teeth and more
"set" in the teeth, which produce an ideal slot for a .040" [1mm] hinge. You will find
the instructions for blade replacement in this pamphlet.
Please read all the instructions and safety precautions before cutting
your first slot, and be sure to practice on balsa scraps to learn good
technique before cutting slots in your model airplane.
© 2014 Great Planes Model Mfg.
A subsidiary of Hobbico, Inc.
INSTRUCTION MANUAL
®
GPMR4010 v1.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GREAT PLANES SLOT MACHINE
Summary of Contents for GREAT PLANES SLOT MACHINE
- Page 1 Congratulations on your purchase of the Great Planes SLOT MACHINE, the first truly easy way to cut hinge slots in your model airplanes. The Slot Machine you have purchased is equipped with blades, each having a thickness of .008" [0.2mm], which cut slots that are ideal for today’s CA hinges. If you need to cut thicker slots for pinned hinges or tailgear brackets, etc., you may...
- Page 2 A shock hazard may exist if the unit is wet. Never use near water, in the rain, or while standing on a wet surface. Never carry the Slot Machine by the cord or yank it from the receptacle.
- Page 3 If this is your first time using the Slot Machine, practice cutting slots in scraps of 3/8” or 1/4” balsa sheet until you are able to make consistently good slots that are in correct alignment on the hinge line.
- Page 4 MAINTENANCE Unplug the power cord from the power source before cleaning or opening the unit. The motor and electronics are not user serviceable. Opening the unit other than at the blade access hatch may result in operational problems if not properly reassembled. If you do open the housing around the motor, do not under any circumstances plug in the power cord, as this would be a dangerous shock and fire hazard.
- Page 5 7. Slide the blade holder guide off of the 8. Pivot one of the blade holders up and out blade holders. of the way, exposing the two blade attachment screws. 9. Remove the blade attachment screws 10. Insert a new blade into the blade holder and remove the blade.
- Page 6 13. Pivot the blade assembly up into the housing. Reinstall the rear Phillips head screw through the housing and through the dog on the top of the rear blade holder guide. Tighten snugly, but do not over tighten. 14. Insert the blades through the slot in the blade access hatch and snap the hatch into place.
- Page 7 TROUBLESHOOTING GUIDE Problem: The unit fails to operate when plugged into an outlet and the start button is pressed. Action: Plug some other appliance into the same outlet to see if there is power. If there is power, but the unit fails to operate, unplug immediately and call Hobby Services at (217) 398-8970 to arrange for a replacement.
- Page 8 Great Planes warrants this product to be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. During that period, Great Planes will, at its option, repair or replace without service charge any product deemed defective due to those causes.
