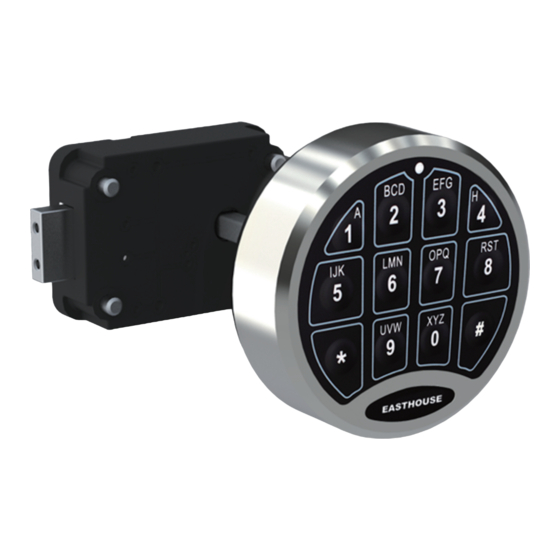

D-Drive EM-1701A-C10 Electronic Combination Controller
l This manual is used for SafeLogic C10 D-Drive EM-1701A-C10 EntryPad used in conjunction
with DL-1701 D-Drive DeadBolt Lock Body.
l
ATTENTIONS:
l For indoor use only.
l Battery Low Voltage: The entrypad will alert low battery, when battery voltage is low. PLEASE
REPLACE THE BATTERY IMMEDIATELY. MAKE SURE A 9V ALKALINE BATTERY
IS USED.
l Install the 9V ALKALINE battery in the back of the EntryPad. Refer to the instructions of
"Replace the battery".
l For Mounting and wiring, please refer to the installation instruction.
FEATURES:
1. 10 User Codes Capacity
a. Recovery code: Resets controller back to manufacturer's default settings. Can't open lock.
Recovery Code must be changed from default.
b. Super Code (ID0): Open lock, set functions, and manage Manager Code. Manufacturer default
super code is 1-1-1-1-1-1.
c. Manager Code (ID1): Open lock and manage user code(s). Manufacturer default super code is
1-2-3-4-5-6.
d. User Code (ID2~9): Opens lock. No default user code(s) and can be added.
2. Wrong Entry Penalty
Entry of four (4) consecutive invalid codes results in a 5-minute penalty time period.
a. The unit beeps at 5 second intervals indicating that it is still in the penalty time period.
b. While the system is in the penalty time, the entrypad buttons remain unresponsive. Pressing
buttons during penalty will not restart or lengthen the penalty time period. It will continue to
count through the 5 minute penalty time period.
c. While the system is in penalty time, removal of the battery will not interrupt the penalty time
countdown. Upon reinstallation of the battery, the entrypad continues to count down until the 5
minute penalty time expires.
-
Operating Instructions
Doc.No.:EM1701A190416
Version No.: V1.0020190416(E)
Date: 2019-9-23
