eschmann Little Sister SES 2010 User Manual

eschmann Little Sister SES 2010 User Manual

Non-vacuum autoclave

Advertisement

Ingenuity in
infection control
since 1830
Little Sister
SES 2010
Non-vacuum
Autoclave
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Little Sister SES 2010 and is the answer not in the manual?

Questions and answers

jenny Burns
March 31, 2025

Cycle keeps stopping with error code 2 displayed. I turn off then re-start by pressing the on switch and 134Degree btton at the same time. It re-starts but then cuts out again after short time with the sme error code displayed

1 comments:
Mr. Anderson
March 31, 2025

Error code 2 on the Eschmann Little Sister SES 2010 indicates "Load Not Sterilised." To fix this:

1. Refer to Section 11 for further details.
2. Press OK to unlock the door when indicated.
3. Be cautious, as the load, chamber, and door may be very hot.
4. Wait for the chamber to stabilise before opening the door.

Check the cycle details to determine the cause of failure and restart the cycle if necessary.

This answer is automatically generated

Sherin Hassanally
April 8, 2025

touchscreen not responding

kristina
April 7, 2025

error number 028

Summary of Contents for eschmann Little Sister SES 2010

  • Page 1 Ingenuity in infection control since 1830 Little Sister SES 2010 Non-vacuum Autoclave User Manual...
  • Page 2: Table Of Contents

    This product must be used, installed and maintained in accordance with the procedures given in this manual. Failure to do so could result in injury to patients and/or users, or damage to the equipment. Eschmann products must be serviced by Eschmann trained engineers only. Failure to do so may invalidate the warranty.
  • Page 3 Take care to avoid contact with the hot internal national legislation for the disposal of potentially surfaces of the chamber and door. Use the contaminated waste. Eschmann tray lifter to load and remove trays from the chamber. 1.6 Warnings, cautions & notes •...

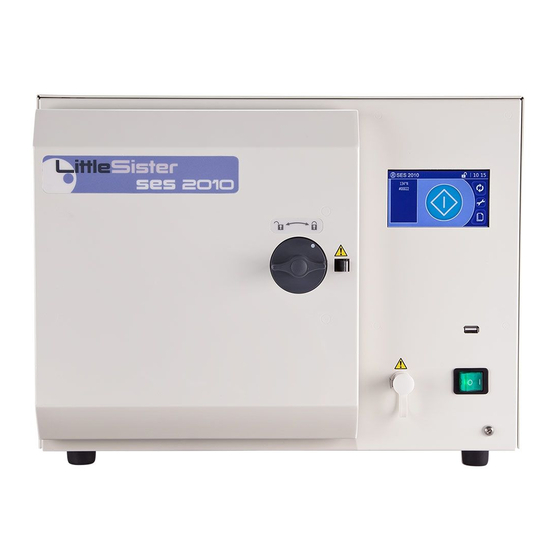

  • Page 4 Chamber door Serial Label Door handle Reservoir water drain Door catch Water reservoir lid/ steam vent Touch screen display (Fig. 2) Mains connection and fuses Mains on/off switch Door seal RS232 port Chamber USB host port (for USB memory stick) Fig.
  • Page 5: Introduction

    2 Introduction & installation 2.1 Introduction 2.6 Product/ packaging Markings The Eschmann SES 2010 is an ‘N’ type, non-vacuum Product Safety Markings autoclave with an 11 litre chamber. The autoclave runs a 134°C cycle with selectable drying. The autoclave is intended for the sterilisation of solid,...
  • Page 6: Controls

    3 Controls 3.1 Touch screen & menu operation Below is the method for entering a four digit PIN code. The process is similar for all other keypads. Touch screen Type your four-digit PIN code: The autoclave must be switched on to use the touch Each time a number is pressed, the flashing line screen.
  • Page 7: The Progress Screen

    3.4 Advisory screens 3.3 The Progress screen Advisory screens may be displayed before and during SES 2010 09:00 a cycle. drying Complete the actions requested to continue using the phase Cycle Type Cycle Type autoclave. Cycle No Cycle No There are three types of Advisory screen: Temp °C Temp °C ENABLING...
  • Page 8: Preparing The Autoclave

    2. Open the door. Load the instruments to be sterilised All instruments MUST be thoroughly cleaned Load Cycle type before sterilisation, ideally in an Eschmann Solid, unwrapped Instrument Washer instruments intended for Disinfector. immediate use. Refer to Appendix 2 Maximum autoclave load: 4.5kg.
  • Page 9: Starting And Running A Cycle

    6 Starting and running a cycle Cycle Chart Cycle type Load type 134° N Solid instruments (unwrapped) - with selectable drying. Padlock on screen Start the cycle You may be prompted to Indicates door lock enter a PIN code. Refer to SES 2010 09:00 status:...
  • Page 10: Cycle Completion And Unloading

    7 Cycle completion and unloading WITHOUT DRYING Green tick Cycle complete You will be prompted indicates cycle to enter a PIN code. SES 2010 09:00 passed. Refer to Section 3.2. Cycle Type Cycle # Press to unlock CYCLE door when COMPLETE Press to view the OK button...
  • Page 11: How To Stop The Cycle

    Drying Completed Press to view the Press to completed cycle log. SES 2010 09:00 accept cycle. Cycle Type Cycle # You will be prompted DRYING COMPLETE to enter a PIN code. Use Load Refer to Section 3.2. Immediately Open the door by releasing the catch. Unload autoclave following Section 7, step 3.
  • Page 12: After Use

    9 After use 9.1 Emptying the water reservoir 9.2 Switch off Switch off the autoclave at the mains switch (Fig 1, pg We recommend that the water reservoir is 4) when not in use. Leave it with the door ajar and the emptied, as a minimum, chamber empty.
  • Page 13: Service Screens

    1. The door seal should be replaced by a qualified Eschmann Engineer. Alternatively a user may replace the door seal through use of the Door Seal Kit, available from Eschmann. The kit comprises comprehensive instructions and all required parts to ensure safe and correct replacement. Part No.
  • Page 14: Advisory Screens

    Advisory Code: Check mains supply, mains connections, autoclave fuses and mains cable fuse. Run the cycle again. If the warning persists, contact Eschmann. Eschmann use only (PIN protected). USER STOPPED CYCLE Displayed when the STOP button is pressed to SES 2010 09:00 stop a cycle.
  • Page 15 Run the cycle again. If the warning persists, contact Eschmann. Eschmann use only (PIN protected). ERROR All errors require you to contact Eschmann. Displayed when the autoclave experiences an Error. SES 2010 09:00 When it appears, press the OK button to...
  • Page 16: Cycle Selection Menu

    12 Menus 12.1 Cycle selection menu Selecting a cycle The cycle has not yet started The 134° N cycle is the SES 2010 09:00 factory default for each From the Open Door, Close Door, or Cycle Start new cycle. screens: The current cycle type Press to view the Cycle Selection SES 2010...
  • Page 17 Setting a delayed start The cycle has not yet started SES 2010 09:00 The Autoclave is loaded From the Open Door, Close Door, or Cycle Start screens: SES 2010 09:00 Press to view the Cycle Selection menu. Delayed Start allows you to delay the start of a SES 2010 09:00 cycle by up to 23 hours and 59 minutes.
  • Page 18: Settings Menu (Managers Only)

    12.2 Settings Menu (Managers only) Viewing the Settings Menu The cycle has not yet started The Settings menu 09:00 SES 2010 contains: From the Open Door, Close Door, or Cycle Start screens: Date / Time Sounds Press to view the Settings menu. 09:00 SES 2010 PIN Management...
  • Page 19 Refer to Section 13.4: ‘Selecting the security Low Security level’. Medium Security High Security Service Service Press to return SES 2010 09:00 without change. Cycle Delay The Service menu is protected by a Service PIN Code that is for Eschmann use only. Keypad 490725-05...
  • Page 20 About SES 2010 SES 2010 09:00 About SES 2010 Contains useful information about your Serial Number Software Version autoclave for when contacting Eschmann. Advisory Code Autoclave Type Fresh Water Quality Telephone Service Press to return to your starting screen. Contact Eschmann Press to view the Records menu.
  • Page 21: 12.3 Records Menu

    13.2 Records Menu Before beginning to download cycle records, insert a Note: Exit the Records menu before removing the USB device. USB Memory Stick into the autoclave’s USB port (Refer to Fig. 1, page 4). Viewing the Records Menu The cycle has not yet started The Records menu SES 2010 09:00...
  • Page 22 By date Set FROM / TO Dates Press to return SES 2010 09:00 without change. Set FROM / TO Dates Use the up/down buttons to highlight __/__/__ your chosen setting in the blue area of The upper box (FROM) the screen. requires a date.
  • Page 23: User Security

    12.3 : “Records Menu”), and in records printed using as a Manager allowing full access to the autoclave the Cycle Logger application (Section 14). (except Eschmann Service screens). For security, this The PIN codes will allow you to know: number should be changed by the Manager when first receiving the unit.
  • Page 24: Setting A Pin Code

    PIN is already in use. Enter a different four digit To disable a PIN Enter 0000 number. Note: Eschmann reserve a number of PINS. The cycle has not yet started SES 2010 09:00 From the Open Door, Close Door, or Cycle Start...
  • Page 25 13.4 Selecting the security level The cycle has not yet started SES 2010 09:00 From the Open Door, Close Door, or Cycle Start screens: SES 2010 09:00 Press to view the Settings menu. Manager PIN required to proceed. SES 2010 09:00 Cycle Type Cycle No...
  • Page 26: Cycle Logger Application

    14 Cycle Logger application The digital storage of cycle data replaces the need 1. Insert the USB memory stick directly into the USB for a traditional paper printer. port on your PC. 2. A window will appear saying AUTOCLAVE. To view and print the files, transfer the files on to a PC using the USB memory stick.
  • Page 27: Printing Files

    Select Windows XP from the drop-down menu. Click Apply and OK. You must have Adminstrator rights to load programs. If problems still persist and you contact Eschmann This is accessed on your PC via Start/ Control Panel/ User Accounts. we will need to know about your computer system.
  • Page 28 Cycle output For 1 34°C N cycles, you can check that: Temperature [TMX] and [TMN] is between 134-137 °C The cycle output (opposite) can provide the following Time between [TSS] and [TSE] is >3min.20secs information: Pressure @134°C = 303.5kPa, @137°C = 331.1kPa [SRN] autoclave serial number [CYC]...
  • Page 29: Appendix 1 : Daily/Weekly Testing

    Sterilisers - Guidance on purchase, Operation and Maintenance, Medical Devices Agency, clause 5.3.1. HTM01-01 (HTM2010/DB2002(06)) testing If required, further Daily, Weekly, Quarterly and Annual Testing may be necessary to satisfy this guidance. Contact Eschmann for details on the automatic control test. 490725-05...
  • Page 30: Appendix 2 : Loading The Autoclave

    • Use the lower pair for trays - not the upper pair. • Eschmann always recommend the use of a • Pull the tray carrier to unclip it from the chamber. validated, automated cleaning process, i.e. thermal The tray carrier requires a gentle push to clip it washer disinfector.
  • Page 31: Typical Loads

    This autoclave is used to decontaminate potentially pathogenic material from instruments used in the Health sector. Eschmann are able to advise on how to recycle and dispose of the product correctly. 490725-05...
  • Page 32: Appendix 3 : Maintenance

    As a minimum, drain the water reservoir at the end Note: If we request that the product is returned to of each day. Eschmann, it must be decontaminated first. We will • Check the drain tube (Part No. 115036) and the request a certificate.
  • Page 33: Appendix 4: Troubleshooting

    Power autoclave off. Remove any item plugged into the USB port (Fig. 1, pg 4). the screen is blank Power autoclave on. If unsuccessful, contact Eschmann. Advisory code table The autoclave continually checks that it is able to run a All Advisory Screens are identified internally using cycle and sterilise the load to the required standard.
  • Page 34 Power autoclave off / on first, then press OK to Data Corrupt clear the SYSTEM STOPPED screen. Run cycle again. Power autoclave off / on. If persistent contact Touch Screen Continuously Pressed Eschmann. Cycle Check Failed Power autoclave off / on. Run cycle again. 490725-05...
  • Page 35 Enclosure Temperature Sensor Fault Power autoclave off / on. Run cycle again. Unknown Sensor Fault Power autoclave off / on. Run cycle again. Configuration Mismatch Contact Eschmann. ERROR Pressure Switch Failed Contact Eschmann. Failed To Update Calibration Record Contact Eschmann.
  • Page 36: Appendix 5: Technical Data

    BS EN ISO 20417 BS EN ISO 14971 BS EN 62366 BS EN 61010 ENVIRONMENTAL REQUIREMENTS (contact Eschmann if required to operate outside these conditions) Transport and Storage: (Note: Water must be drained) Ambient temperature range -10°C to +40°C Relative humidity range...
  • Page 37 Hydrostatic Test Pressure; 4.15 bar Pollution degree SAFETY FEATURES Eschmann autoclaves are designed to be safe and effective. No changes should be made, except by an Eschmann Engineer. In particular, the following safety features must not be interfered with, circumvented or overridden:- •...
  • Page 38: Bs En 13060 Type Tests

    BS EN 13060 Type tests In accordance with BS EN 13060 the recommended type tests for N type cycles are: Sterilisation Cycle Type and Cycle Number Type Tests Dynamic steriliser chamber pressure Air Leakage ü Empty chamber ü Solid load Small porous loads Full porous load Narrow Lumen...
  • Page 39 Detailed N type cycle information Typical N Type cycle pressure diagram showing stages and cycle codes drying (can be cancelled) Cycle stages 1 to 5 Progress Cycle Stage Detail Indicator stage 1 & 2 (1) Filling and (2) heating to sterilisation temperature. Sterilising, temperature and pressure held: 134-137°C, 303.5 - 331.1kPa Discharge phase.
  • Page 40: Appendix 6: Accessories

    Appendix 6 : Accessories For prices and ordering call Eschmann, telephone 01903 753322 Visit Eschmann.co.uk for details of the full range of decontamination equipment, accessories and consumables. Autolog Wireless Cycle Data Manager - for more advanced automated cycle logging and digital generation of daily/weekly testing, in real time, upgrade to the...
  • Page 41 490725-05...
  • Page 42 Eschmann spare and workmanship at the time of delivery. parts. Eschmann will be under no liability for any defect arising from Eschmann products are supported by a worldwide network of fully fair wear and tear, negligence, wilful damage, misuse, abnormal trained engineers, offering high quality Eschmann spare parts.
