ECLISSE Touch Latch

If you follow carefully these instructions for the assembly and installation process your life will be easier!

A pair of tressles are very useful when assembling the frames. Some parts may have sharp edges so use gloves and be careful when handling the

parts.

All Eclisse products are fully inspected and tested before they leave the factory.

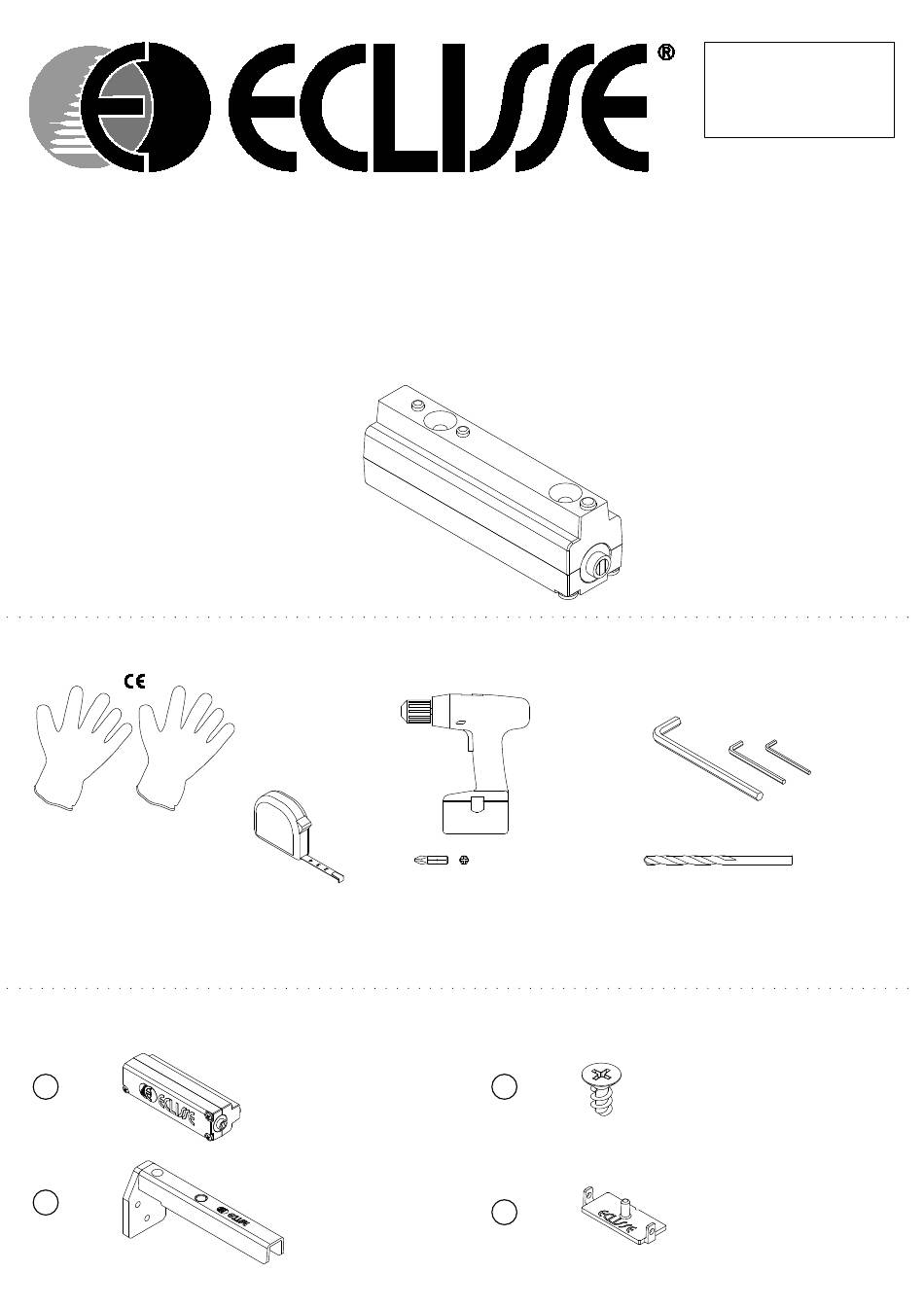

COMPONENTS

1 x

AUTPP11

TOOLS REQUIRED

PH2

- 1 -

CH. 6 - 2,5 - 2

2 x

1 x

0459

Ø 3

Table of Contents

Need help?

Do you have a question about the Touch Latch AUTPP11 and is the answer not in the manual?

Questions and answers

Summary of Contents for eclisse Touch Latch AUTPP11

Page 1 A pair of tressles are very useful when assembling the frames. Some parts may have sharp edges so use gloves and be careful when handling the parts. All Eclisse products are fully inspected and tested before they leave the factory. COMPONENTS...
Page 2 A: Remove the door from the system. D: Slide the leading hanging bracket out from the leading edge of If your door is not currently in place – please skip to step 2. the door,slightly lifting the door as you go will help this process. E: Simultaneously slide and pivot the leading edge of the door out of the system to reveal the rear hanging bracket.
Page 3 Remove the track from the pocket unit by removing the small screws holding the track to the header across the opening. Slide the track to one side and it will drop out. NOTE: Store these screws safely. Remove the leading adjustable stop from the track and remove the runners. - 3 -...
Page 4 Remove the rear adjustable stop from the stop-bar and dispose of the adjustable stop. Slide the Touch Latch and stop-bar back into the track in the same Screw the Touch Latch to the stop bar with the screws provided, orientation it was removed. as shown below.
Page 5 Insert rollers back into the track. Insert the leading adjustable stop in to the track NOTE: Ensure the nibs on the roller are facing downwards. and fix into place by tightening the bolt inside. Insert the track back into the pocket door system in the reverse order of removal. Remove the rear hanging bolt from the original rear hanging bracket and insert it into the replacement rear hanging bracket provided in the Touch Latch box.
Page 6 NOTE: If you intend to recess your door flush into the pocket when open, you will need to continue the rebate in the base of the door right through to the front edge. A: Hang the door back into the system in the reverse order of removal. B: Insert the floor guide into place in the orientation shown below.
Page 7 A: Pull the rear stop-bar forward so it connects with the rear roller and then push the door back to where you want it to stop when fully open. B: Secure the stop-bar into place by drilling 2 holes using a 3mm drill bit and fastening with screws. Ø...
Page 8 © ECLISSE, all rights reserved. The use, filing and total or partial reproduction, using any mechanical or electronic means, of texts,drawings and pictures contained in this publication is strictly prohibited, unless specifically approved in writing by ECLISSE. JN - 02.08.21...
