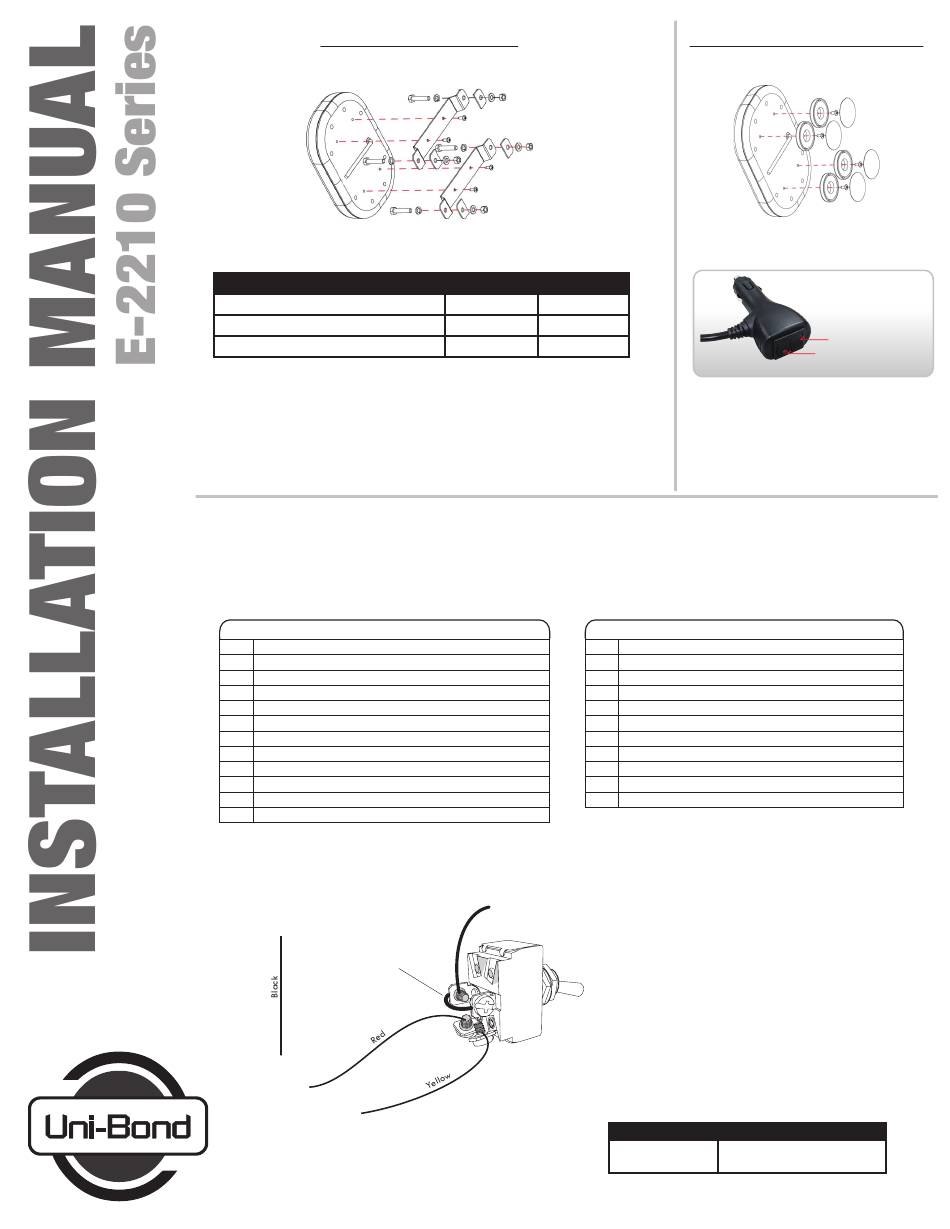

Uni-bond E-2210 Series Installation Manual

Last Updated: 06/13/2022
E-2210A / E-2210AC
Bracket Mount
Wiring Information
Function
Power
Ground
Pattern Selection & Synchronization
Light should be fused with 5 Amp Fuse (
Pattern Selection
Briefly Connect Pattern Selection wire (Yellow wire) to Power wire (Red wire)
- Once to the next pattern
- Quickly 3 times to flash pattern #1
Synchronization
All lamps must be set to the same pattern before synchronization.
Connect Yellow Wires of all units together for synchronization.
Flash Patterns
NO. Flash Patterns
1 Random Patterns
2 Rotating Flash
3 Alternating Single Flash
4 Alternating Double Flash
5 Alternating Quad Flash
6 Alternating Quint Flash
7 Alternating Mega Flash
8 Alternating Ultra Flash
9 Alternating Single Flash / Alternating Quad Flash
10 Alternating Single Flash / Alternating High Intensity Single Flash
11 Simultaneous Single Flash
12 Simultaneous Double Flash
Suggested Switch Connection
Vehicle Ground
Jumper Wires
Ground
Power
Pattern Selection
& Synchronization
Wire Colour Connect To
Red +12/24 V DC
Black - Ground
Yellow +12/24 V DC
)
ATM05 sold separately
NO.
13 Simultaneous Quad Flash
14 Simultaneous Quint Flash
15 Simultaneous Mega Flash
16 Simultaneous Ultra Flash
17 Simultaneous 8 Single Flashes / 4 Quad Flashes
18 Simultaneous 6 Slow Single Flashes / 6 Fast Single Flashes
19 Left Side Steady & Right Side Single Flash
20 Simultaneous Single Flash (2Hz)
Simultaneous Double Flash (2Hz) [
21
22 Simultaneous Triple Flash (2Hz)
23 Simultaneous Quad Flash (2Hz)
(switches sold separately)
From Battery Positive
Switch Part No.
ST307
(OFF-ON-Momentary ON)
Operation:
Switch #
Switch 1
NOTE: Disassembling lamp or cutting the wires voids the warranty
E-2210AM / E-2210ACM
Magnetic Mount
ON/OFF Switch
ON/OFF button
Flash Pattern Button
Momentarily press the button
- Once to the next pattern
- Quickly 3 times to flash pattern #1
Flash Patterns
SAE Class 1
Lamp Function
Power, Pattern Selection
& Synchronization
Flash Pattern button
]
