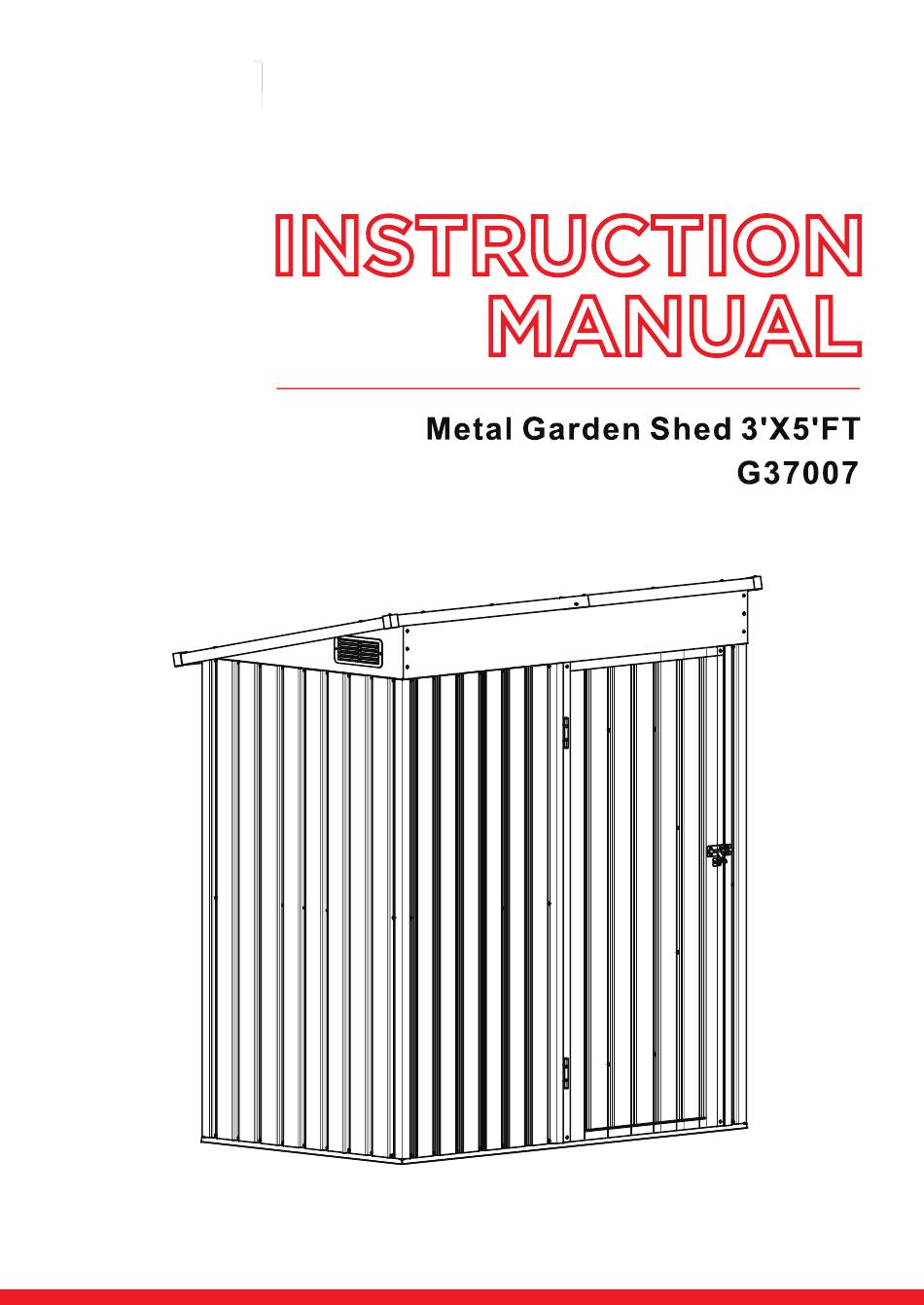

Summary of Contents for HOMEDEPOT G37007
- Page 2 PRODUCTS SERVICES Why choose us? We offer a diverse range of products to meet the needs of customers. We continue to supply high quality and reliable products while maintaining a balance of price and product, and strive to provide consumers with quality at a good price.
- Page 3 Thank you for your purchase 1. If there is any damage, please kindly send clear photos of damaged parts to us as attachment, we will check and offer you best solution soon. 2. We attach great importance to the customer experience of our products. If there's any concern,please contact us at any time, we will provide effective solutions.
- Page 4 WARNING For your safety concern,please do not stand under the metal shed in heavy wind or snow days. For safety, please use expansion screws to reinforce the posts to the ground. In extreme weather conditions,you can use a rope to pull the four corners of the gazebo to keep it stable.
- Page 5 K35-1 K35-2 K35-3 K35-4 K35-5 K35-6 K35-6R K35-7 K35-9 K35-10L K35-10R K35-11L K35-11R DLA1 DRA1...
- Page 6 W5-X W3-HX W5-C K35-8L K35-8M K35-8R...
- Page 7 HARDWARE 198PCS 39PCS 16PCS 189PCS 42PCS 2PCS...
-
Page 8: Part List
Part List K35-9 K35-10R K35-8L K35-10L K35-8M K35-8M K35-11L K35-8R K35-11R K35-9 K35-6L K35-3 K35-4 K35-5 K35-7 K35-3 K35-6R... - Page 9 Part List W5-C W5-C K35-2 K35-1 K35-1 K35-2 DLA1 W5-C W5-X W3-HX W5-C DRA1...
-
Page 10: Top Plate
Top Plate... - Page 11 Shed Base Frame Assemble Link the two "K35-1" and "K35-2" to each other, and reinforce the four corners with "T-F". K35-2 K35-1 K35-1 K35-2...
- Page 12 Shed Side Panels Assemble Mount the 4 "W5-C" on the Shed Base Frame Assemble as shown. W5-C W5-C W5-C W5-C W5-C W5-C W5-C W5-C W5-C W5-C W5-C...
- Page 13 Install two "K35-3" on "W5-C" as shown K35-3 W5-C W5-C W5-C W5-C Link "K35-4" and "K35-5" with "K35-3" using 4 "C2" K35-4 W5-C W5-C W5-C W5-C K35-4 K35-4 K35-3 K35-3 K35-3 K35-3 K35-5 K35-4 K35-3 K35-3 K35-5 K35-5...
- Page 14 Install three "W5" on "K35-4". W5-C W5-C W5-C W5-C Install the remaining "W3" "W5" according to the diagram. W5-C W5-C W5-C W5-C W5 W3...
- Page 15 Install "ULA" on the left side of the door frame and "URA" on the right side of the door frame W5-C W5-C W5-C W5-C...
- Page 16 Shed Top Frame Assemble Install "GF" on two "K35-6" "K35-6L" is mounted on the top left, "K35-6R" is mounted on the top right K35-6 K35-6R Install the "K35-7" on top of the front K35-7 K35-7 K35-6L K35-7 K35-6R...
- Page 17 Shed Top Panels Assemble "K35-8L" is mounted on the top left, "K35-8R" is mounted on the top right. K35-8 K35-8 K35-8R Install the remaining two "K35-8M" in the ceiling void K35-8 K35-8 K35-8 K35-8 K35-8 K35-8R K35-8L K35-8M K35-8M K35-8R...
- Page 18 1. Install hemming "K35-9" on both sides of the roof. 2. Connect and install K35-10R and K35-10L on the rear side of the roof. 3. Connect and install K35-11R and K35-11L on the front side of the roof. 4. Install the corner "GC" on the four corners of the roof. K35-9 K35-9 K35-9...
- Page 19 1.Combine "W5-X" and "W3-HX" into a door 2. Install "DD", "DLA1" and "DRA1" around W5-X W3-HX DLA1 DRA1...
- Page 20 Mount "DX1" on the back of the door for reinforcement...
- Page 21 1.Install the two "DH" hinges on one side of the door using 8 "F3" screws 2.Use 6 "F2" screws to fasten the "DCS" part to the door as shown...
- Page 22 1.Use 8 "F3" screws to mount the door in the position shown 2.Use 2 "F2" screws to mount the "DCS" part in the position shown...
- Page 23 The exposed parts of the screws need to be covered with plastic protective caps.Screw positions: Exposed parts of ceiling and k35-7 assembly screws.
