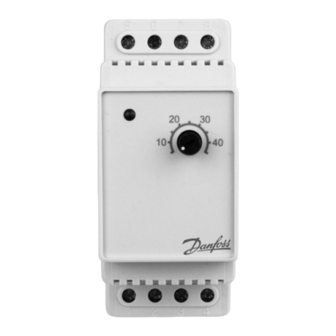

Danfoss ECtemp 330 Installation Manual
Electronic thermostat
Hide thumbs
Also See for ECtemp 330:
- Installation manual (12 pages) ,
- Installation manual (12 pages) ,
- Installation manual (16 pages)
Related Manuals for Danfoss ECtemp 330
Summary of Contents for Danfoss ECtemp 330

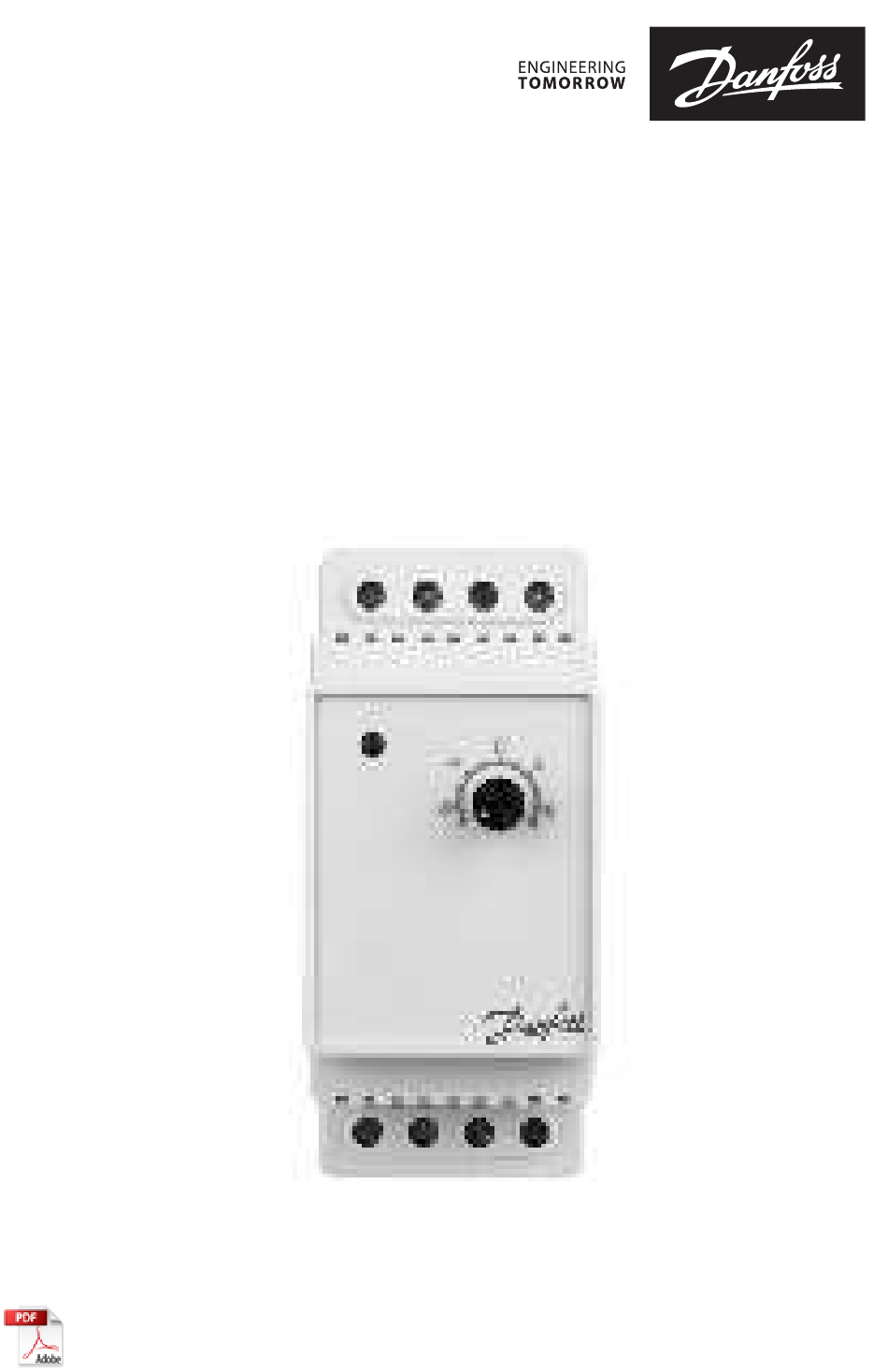

- Page 1 Installation Guide ECtemp 330 (-10 to +10°C) Electronic Thermostat electricheating.danfoss.com...
- Page 2 ECtemp 330 (-10 to +10°C) Danfoss A/S is not liable or bound by warranty if these in- structions are not adhered to during installation or service. The English language is used for the original instructions. Other languages are a translation of the original instructions.
-
Page 3: Table Of Contents
Disposal Instruction ....10 Introduction ECtemp 330 is an electronic thermostat to be installed in electric cabinets with DIN rail attachment. Used primar- ily for controlling a lower temperature range as by frost protection. -
Page 4: Technical Specifications
ECtemp 330 (-10 to +10°C) Technical Specifications Operation voltage 220-240V~, 50Hz Standby power consumption Max 0.25W Relay: Resistive load Max 16A / 3680W @ 230V Inductive load cos φ= 0.3 max1A Sensing units NTC 15kOhm at 25°C Sensing values: 0°C 42kOhm 25°C... -
Page 5: Safety Instructions
ECtemp 330 (-10 to +10°C) Protection class Class II - Dimensions 86 x 36 x 58mm Weight The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) -
Page 6: Mounting Instructions
ECtemp 330 (-10 to +10°C) Mounting Instructions Please observe the following placement guidelines: • Install the thermostat in an electric cabinet with DIN rail attachment or a separate DIN attachment accord- ing to local regulation on IP classes. • Do not place the thermostat in a way that it will be exposed to direct sunlight. - Page 7 ECtemp 330 (-10 to +10°C) The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector. Note: Always install the floor sensor in a conduit in the floor.
-
Page 8: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The Danfoss warranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers. - Page 9 WARRANTY CERTIFICATE The Danfoss warranty is granted to: Address Stamp Purchase date Serial number of the product Product Art. No. *Connected output [W] Installation Date Connection Date & Signature & Signature *Not mandatory...
-
Page 10: Disposal Instruction
ECtemp 330 (-10 to +10°C) Disposal Instruction Installation Guide... - Page 11 ECtemp 330 (-10 to +10°C) Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 088L8058 & AQ088786468294en-020303 Produced by Danfoss © 07/2022...
- Page 12 ECtemp 330 -10 to +10°C 088L0444 Product documentation 220-240V~ 50-60Hz~ -10 to +10°C DK EL 7224215315 16A/3680W@230V~ SE E 8581185 NO EL 5491481 FI SSTL 3531031 Designed in Denmark for Danfoss A/S 5 703466 130346...
