User's manual
Customer Service
US: 1-800-645-2986

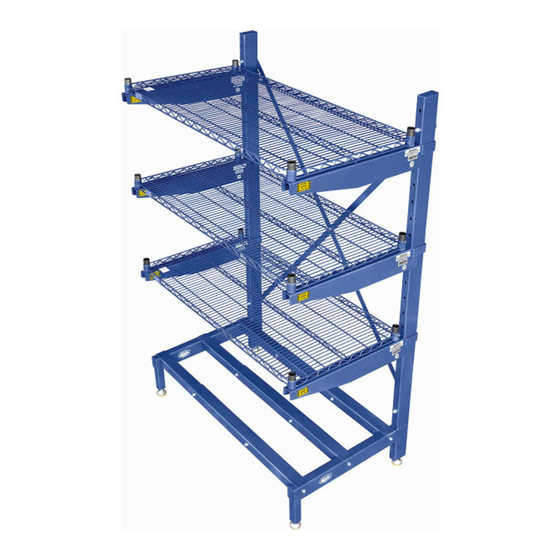

CANTILEVER RACK SHELVING
36", 48", 60"
Using
bolts, fasten the two or three pieces of the 3
M8x20
stringers together according to the images above and the desired
dimension of the rack.
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986
Models: 245644, 245645, 245646, 245647
72"
Using
bolts
M8x20
and washers, fasten
the 3 stringers to
the support bars of
the uprights.
CAPACITIES
36"x24" : 880LBS
48"x24" : 660LBS
60"x24" : 660LBS
72"x24" : 660LBS
DO NOT OVERLOAD
Thread 4 feet through the threaded holes on the bottom of
Slide the arms
down the uprights
and set them at the
desired height for
Using
bolts and washers,
secure the arms to
the upright of the
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
each upright piece.
racking.
M10x100
rack.
MODEL #
Advertisement
Related Manuals for Nexel 245644
Summary of Contents for Nexel 245644
- Page 1 Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 Canada: 888-645-2986 US: 1-800-645-2986 CANTILEVER RACK SHELVING Models: 245644, 245645, 245646, 245647 CAPACITIES 36"x24" : 880LBS 48"x24" : 660LBS 60"x24" : 660LBS 72"x24" : 660LBS DO NOT OVERLOAD 36", 48", 60"...
- Page 2 User Manual Cantilever Rack Shelving (optional) Using knobs included with rack, slide Nexel ® Wire Racks over the knobs until the rest Holding the bars on the arms of the upright, install the rack. Install caps sway x-bars so on top of knobs.
