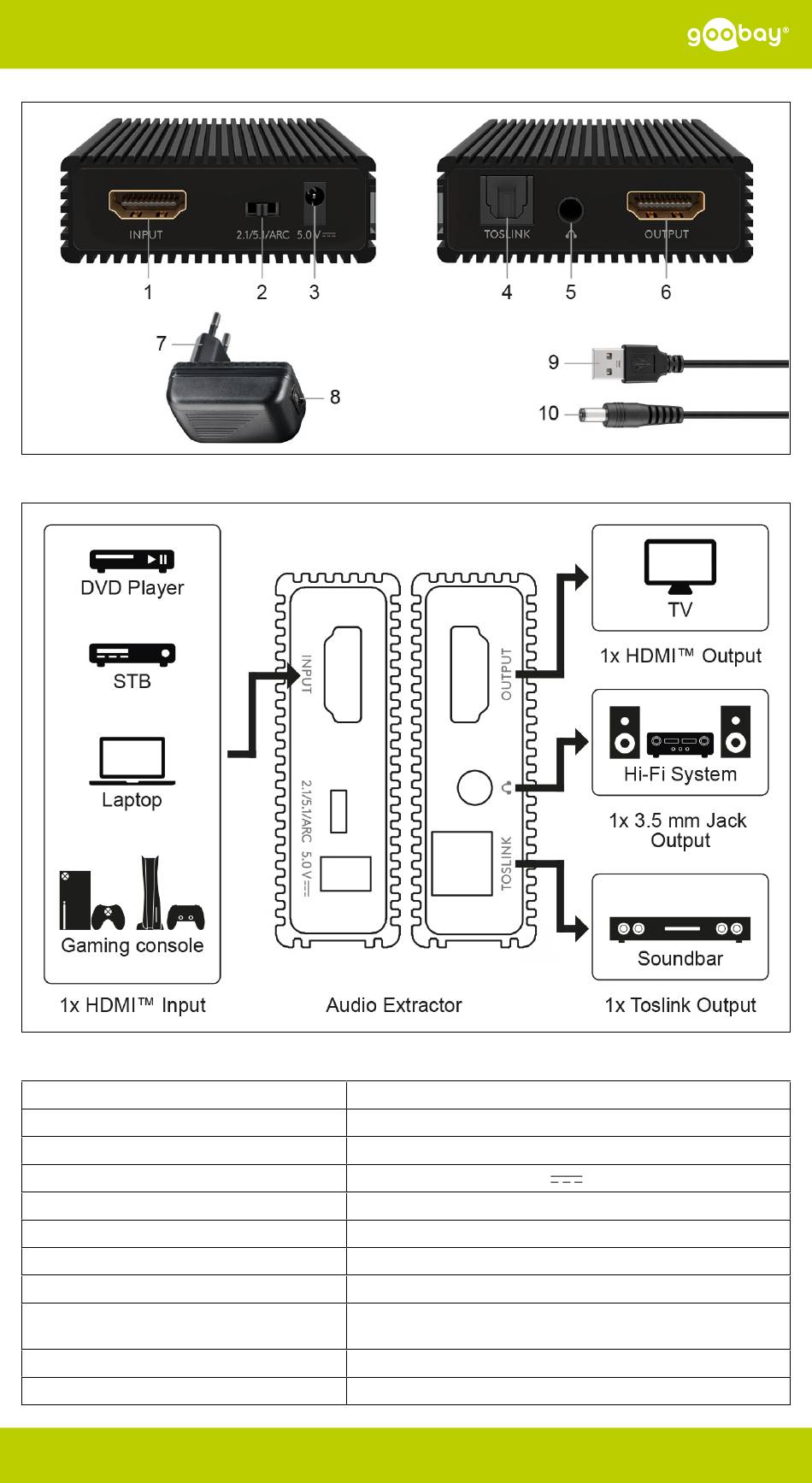

Fig. 1
Fig. 2
Technische Daten / Specifications / Spécifications / Specifiche / Datos técnicos
Item number
Connectors - Inputs
Connectors - Outputs
Input
HDCP specification
Data transmission rate
Resolution
Colour depth
Supported HDMI™ audio formats
Supported optical audio formats
Supported 3.5 mm jack audio formats
REV2022-10-19
V1.0aw
HDMI™ socket, DC socket
HDMI™ socket, Toslink socket, 3.5 mm jack socket
max. 4K @ 60 Hz, 4:4:4 (input: up to 10 m; output: up to 10 m)
8-bit, 10-bit, 12-bit
Stereo, LPCM, Dolby Digital /DTS (Dolby 5.1, Dolby 7.1),
Dolby-AC3, Dolby true HD Master, Dolby Atmos
LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
Stereo, LPCM 2CH
- 1 -
Pillmannstraße 12 | 38112 Braunschweig | Germany
58477
58477
5.0 V
, 1.0 A
HDCP 2.2, 1.4
max. 18.0 Gbit/s
