southpaw enterprises 2000 Instruction Sheet

southpaw enterprises, inc.
Instruction Sheet
Safety Rotational Device 2000
Please file this Instruction Sheet in an accessible location: the Instruction Sheet must be read and familiar
to anyone who is using Southpaw Enterprises Equipment. AS THIS PRODUCT IS AN ITEGRAL PART OF
THE SUSPENSION SYSTEM OF YOUR EQUIPMENT, IT IS IMPERATIVE THAT YOU TAKE TIME TO
FAMILIARIZE YOURSELF WITH THE USE AND MAINTENANCE OF THIS EQUIPMENT BEFORE US-
ING, AND THAT YOU ADHERE STRICTLY TO THE MAINTENANCE AND INSPECTION PROGRAM.
IMPORTANT: Please check equipment immediately for any damage
that may have resulted during shipping. If any damage has occurred,
please contact Southpaw Enterprises, Inc. immediately.
MATERIALS LIST
1 - Safety Rotational Device
1 - Safety Snap - Attached
1 - Instruction Sheet
MINIMUM HEIGHT REQUIREMENTS AND SPACE NEEDED
Minimum Height: All hanging equipment should be hung at 8 ft.
Space Needed: Assure a clear distance of 6 ft. from walls and other
obstacles.
WORKING LOAD: 1,000 lbs.
HANGING INSTRUCTIONS
•
Clip the Safety Rotational Device to your suspension system with a
Southpaw Safety Snap (# 2000) through the eye bolt on the top of the
Safety Rotational Device. The Southpaw Label should be facing in a
readable position when used in a permanent location. The Safety
Rotational Device must be hung in this manner to prevent dust, dirt,
and debris from entering the bearing area.
•
Hang your suspended equipment from the Safety Snap attached to the
Safety Rotational Device.
•
When using equipment with a Southpaw Safety Rotational Device
permanently attached, such as the Southpaw Bolster or Twirler, use the
Rotational Device as attached.
MAINTENANCE CHECKLIST
All of the following wear points should be checked on a monthly basis and recorded on the checklist enclosed. If re-
placement is necessary, contact Southpaw for replacement immediately.
•
Remove the Rotational Device from the equipment and/or eyebolts. Remove the Southpaw Safety Snap from the
Rotational Device.
•
You may use an aerosol dust remover or very clean compressed air to blow out any dust from inside the rotational
housing.
•
Visually inspect the "eye" of the eyebolt. If the "eye" has a worn through 30% of the thickness of the steel, discon-
tinue use and replace.
•
Visually inspect the round "pin" which goes through the housing of the rotational on the side opposite from the
"eye". If it is bent at all, discontinue use and replace. Note: This pin is made of hardened steel, and it is unlikely
that it will be worn. If it is worn, it will bend before it breaks. So a bent "pin" is worn. (Continued on back)
1 - Maintenance Checklist
1 - Safety Snap Instruction Sheet
Store these instructions in a safe place or
with the enclosed maintenance checklist
Warning: Failure to properly install a forged
steel eyebolt (1/2" or 5/8") may result in serious
injury or death. If you have any questions
about the installation of the forged steel
eyebolt, please contact Southpaw Enterprises
Customer Service at 1-800-228-1698.

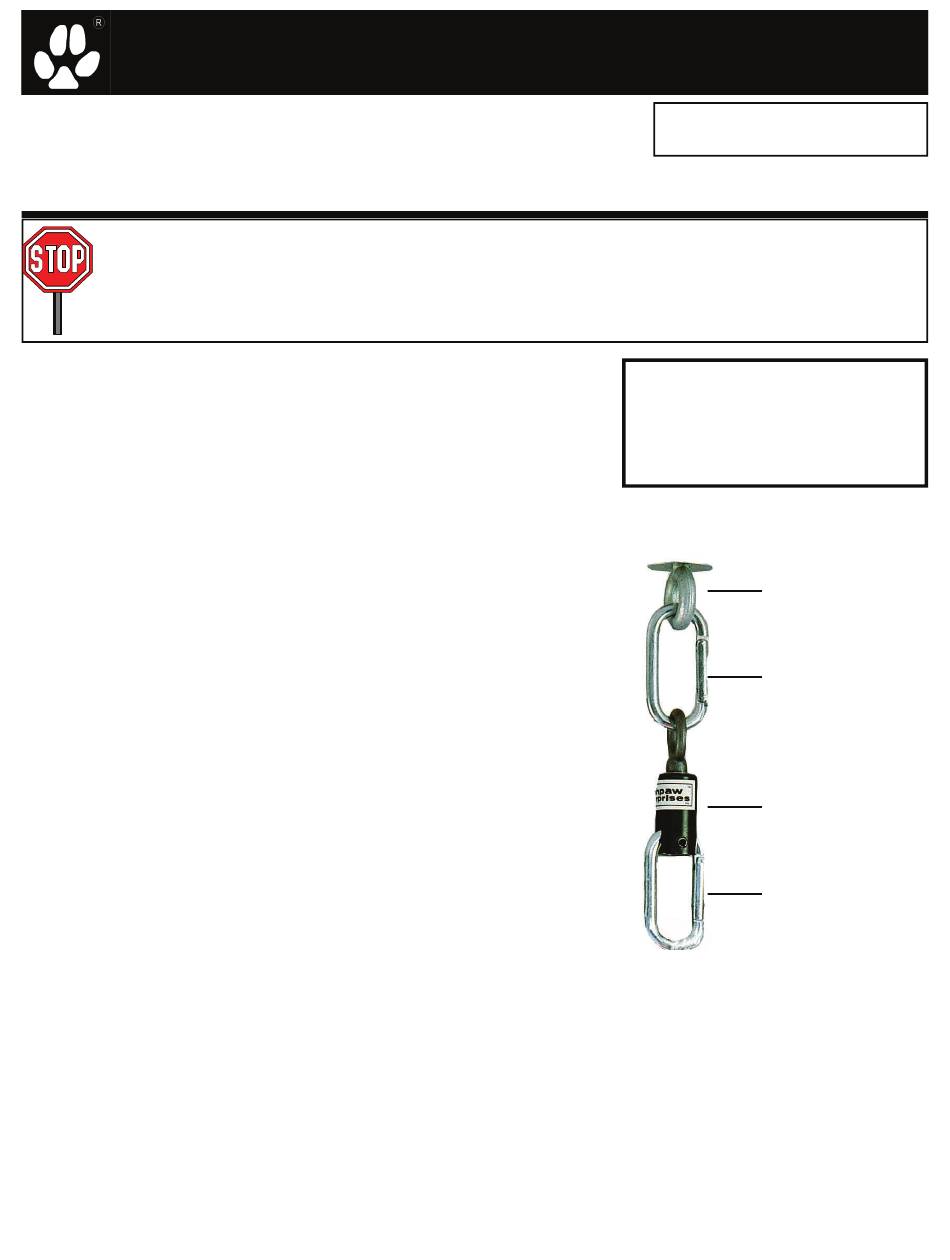

Suspension Point
Safety Snap
Rotational Body
Safety Snap
®
