- Page 1 ES-E1000 Series Portable Power Station User Manual Before using the product, please read this manual carefully and keep it properly Zhejiang Uniview Technologies Co., Ltd. for future reference!
- Page 2 Notice to Customers Dear customer, thank you for choosing our products and services. Before using the product, please read this user manual carefully to have a clear understanding based on which you can use the product successfully. Once you use this product, it is considered that you have understood, approved, and accepted all the terms and service contents specified in the user manual.
-
Page 3: Table Of Contents
Contents I. Safety Guidelines ....................1 Safety precautions ....................1 Disposal ........................2 II. Product Introduction ..................3 1. Product appearance ....................3 2. UI …………………………………………………………………………………………………………………………………4 3. Specifications ......................5 III. Use of the product ................... 7 1. Use of the product ...................... 7 2. -
Page 4: Safety Guidelines
I. Safety Guidelines Safety precautions 1. Do not immerse the product into liquid or water, or make it hygroscopic. If there is dirt on the surface or interface of the product, use a dry cloth to clean it. 2. It is strictly forbidden to put the product near a heat source, combustion source, or heating furnace to prevent the hazards because the product becomes overheated. -
Page 5: Disposal
10. If the product catches fire by accident, it is recommended that you use extinguishing devices in the following order: sand, fire blanket, dry powder, and carbon dioxide extinguisher. 11. If the product is seriously damaged, do not touch the exposed cell. For safety, place the product in an open area, away from combustibles and people, and then retire it in accordance with local laws and regulations. -
Page 6: Product Introduction

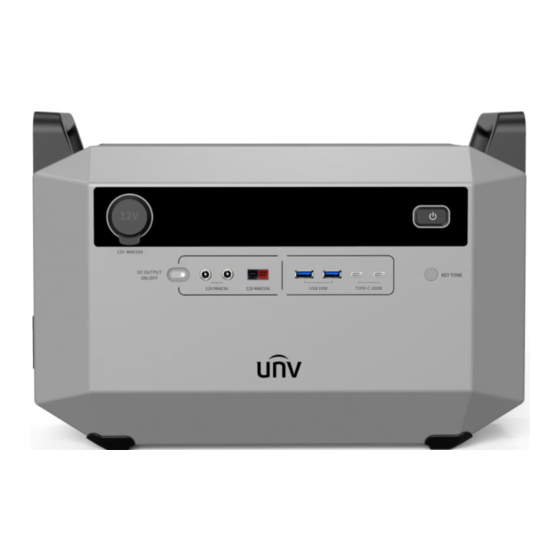

II. Product Introduction This product is a portable power station, with a battery capacity of 998 Wh and rated output power of 1000 W. It has built-in high-rate lithium iron phosphate (LFP) power cells with excellent safety. This product provides the bidirectional inverter function. The AC output is a pure sine wave of voltage, ranging from 110 V to 130 V (50/60 Hz), and the rated output power is 1000 W. - Page 7 2. UI Alarm EPS function High temperature protection Charging gear Low temperature protection Overload protection AC input Battery percentage AC output startup AC input mode Fan operation Remaining discharging / charging time DC output startup Input power USB output startup Output power For more information about fault display and handling, refer to Chapter 4.
-
Page 8: Specifications
3. Specifications Basic specifications 38.0 × 21.4 × 26.4 cm/15.0 × 8.4 × 10.4 in Net weight 12 kg/26.5 lbs Size Battery capacity 998 Wh (39000 mAh/25.6 V) Cycle life 4000 times Rated power 1000 W, peak power of 1800 W Cell type Lithium iron phosphate battery... - Page 9 Use conditions °C °C °F °F Operating temperature to 45 to 113 °C °C °F °F Charging temperature to 40 to 104 Working environment humidity 20% to 90% RH (no condensation) °C °C °F °F Storage temperature to 45 to 113 Storage environment humidity <...
-
Page 10: Use Of The Product
III. Use of the product 1. Use of the product Power-on/off The main power switch controls the product to power on or power off. Press the main power switch to power on the product. In power-on state, long-press the main power switch for 2 seconds to power off the product. In power-on state, press the main power switch to make the display switch between on and off states. -
Page 11: Ac Charging
AC output Turn on the main power supply. Press the AC output switch. After that, the 120 V AC output is turned on, the AC socket starts to output power supply, and the AC switch indicator is turned on. Press the AC output switch again. After that, the 120 V AC output is turned off, and the AC output switch indicator is turned off. -
Page 12: Anderson Port Dc Charging
Note: When the AC input is connected to the mains, if you do not need to use the AC output, please turn off the AC output switch, otherwise it will reduce the AC charging power. For the AC charging indicators, refer to the following table. Pressing sequence Screen display Variable charging... -
Page 13: Long-Term Backup Power Mode
When the AC input is connected to the mains, if you press the AC switch to start the 120 V AC output, the AC socket will directly take power supply from the mains. When the AC input is abnormal and fails to supply power, the product immediately switches to battery power supply within 30 ms to maintain normal 120 V AC output. -
Page 14: Fault Display And Handling
IV. Fault Display and Handling Warning icon Fault type Handling Remarks Flashing: The rated The load exceeds the load capacity AC output power is exceeded of the product. termination and but no protection is 1. When the fault occurs, press the overload performed. - Page 15 The USB power Check whether the load capacity of USB output supply is faulty, and the product is exceeded. termination. the output is 1. When the fault occurs, press the abnormal. USB output switch to clear the alarm. 2. If the alarm indicates that the load capacity of the product is exceeded, reduce the load and press the USB output switch again to...
- Page 16 If the two It is detected that the power device Output indicators flash at temperature is too low. Wait the termination. the same time, it temperature to change to normal indicates a low before using the product again. temperature alarm of the power device.
-
Page 17: Package Contents
V. Package Contents Power station AC charging cable Car charging cable User manual VI. Maintenance 1. It is recommended that the product be in long-term backup power mode. If the product needs to be stored for a long period of time, charge and discharge it once every three months (that is, first discharge the product to 30% of the full capacity, and then charge the product to 60%.) 2. -
Page 18: Disclaimer And Safety Warnings
providing services or charge the cost of parts and services in the following circumstances: 1. The appearance of the product is damaged after use. 2. Unauthorized disassembly and maintenance of non-professionals. 3. Performance problems caused by human factors. 4. Damage caused by natural disasters, lightning strikes, accidents, and other irresistible factors. - Page 19 SDoC. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 20 1. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 2. Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery. 3. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
- Page 21 2. Veuillez porter un équipement de protection complète pour yeux et vêtements. Veuillez éviter le contact avec les yeux, quand vous travaillez à proximité de ce produit. 3. Si l'acide de la batterie entre en contact avec la peau ou les vêtements, veuillez les laver immédiatement à...
- Page 22 Moving and Storage Instructions Please fully charge the battery before storing the product. Do not store this product in humid, high-temperature, hypersaline, dusty, or strong magnetic field environments for a long time. Do not drop this product or store it in a bumpy environment for a long time. Do not expose the product to direct sunlight for a long time.
