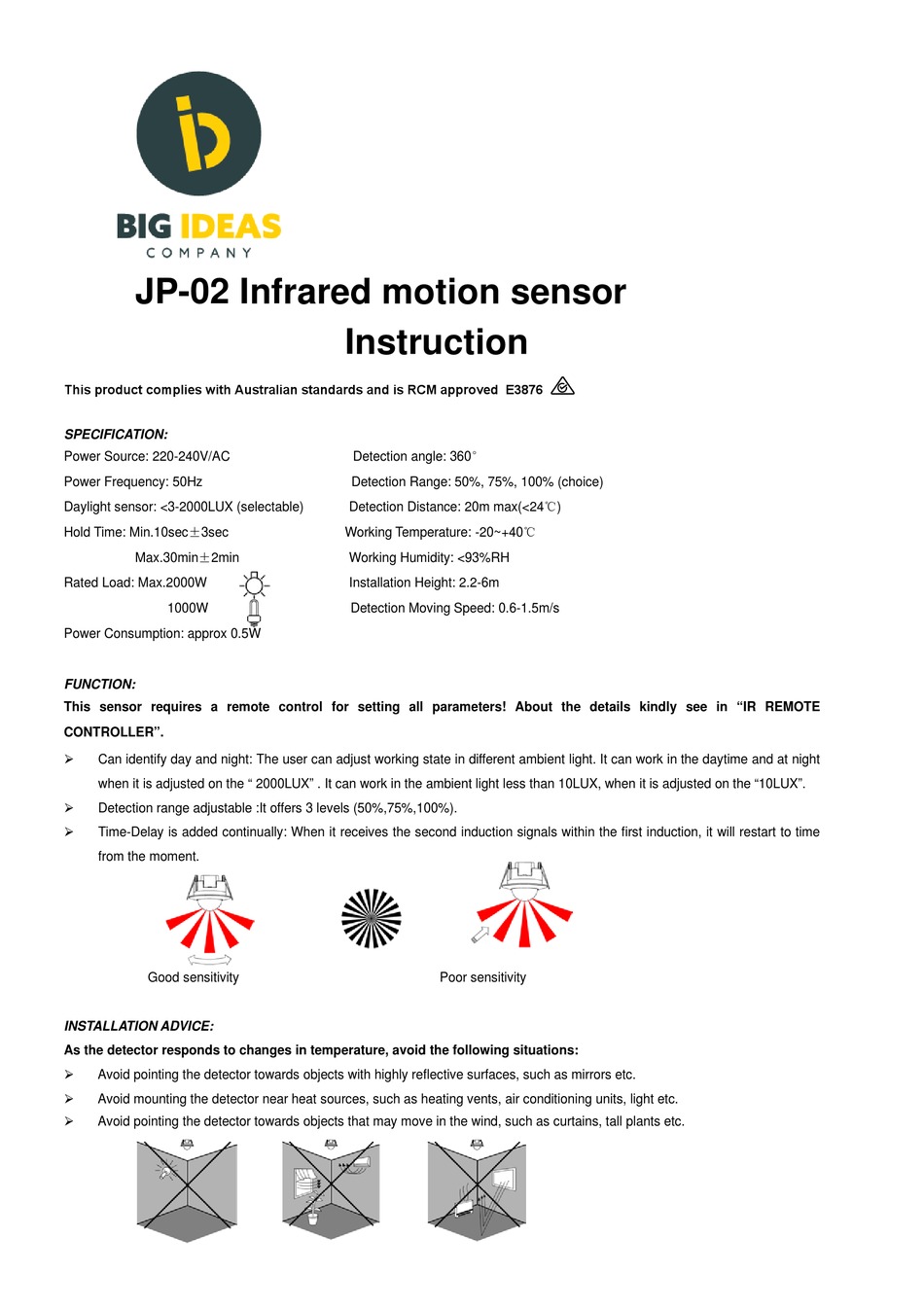

big ideas JP-02 Instructions

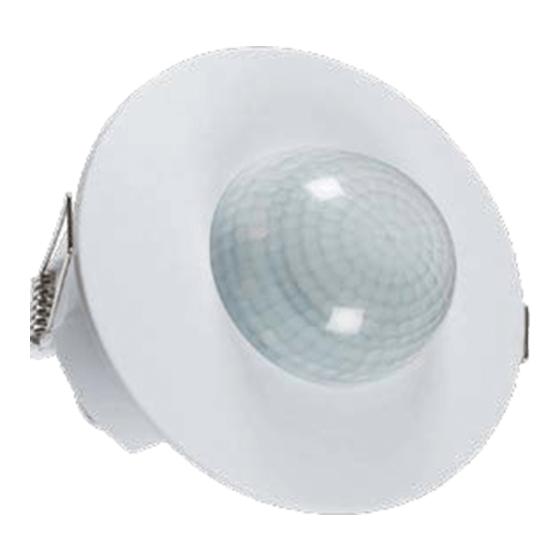

JP-02 Infrared motion sensor
This product complies with Australian standards and is RCM approved E3876

SPECIFICATION:

Power Source: 220-240V/AC
Power Frequency: 50Hz
Daylight sensor: <3-2000LUX (selectable)
Hold Time: Min.10sec±3sec
Max.30min±2min
Rated Load: Max.2000W
1000W
Power Consumption: approx 0.5W

FUNCTION:

This sensor requires a remote control for setting all parameters! About the details kindly see in "IR REMOTE
CONTROLLER".

Can identify day and night: The user can adjust working state in different ambient light. It can work in the daytime and at night
when it is adjusted on the " 2000LUX" . It can work in the ambient light less than 10LUX, when it is adjusted on the "10LUX".

Detection range adjustable :It offers 3 levels (50%,75%,100%).

Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time
from the moment.
Good sensitivity

INSTALLATION ADVICE:

As the detector responds to changes in temperature, avoid the following situations:

Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors etc.

Avoid mounting the detector near heat sources, such as heating vents, air conditioning units, light etc.

Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall plants etc.
Instruction
Detection angle: 360°
Detection Range: 50%, 75%, 100% (choice)
Detection Distance: 20m max(<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Installation Height: 2.2-6m
Detection Moving Speed: 0.6-1.5m/s
Poor sensitivity
