Summary of Contents for ALG FN-4800-10-SNMP

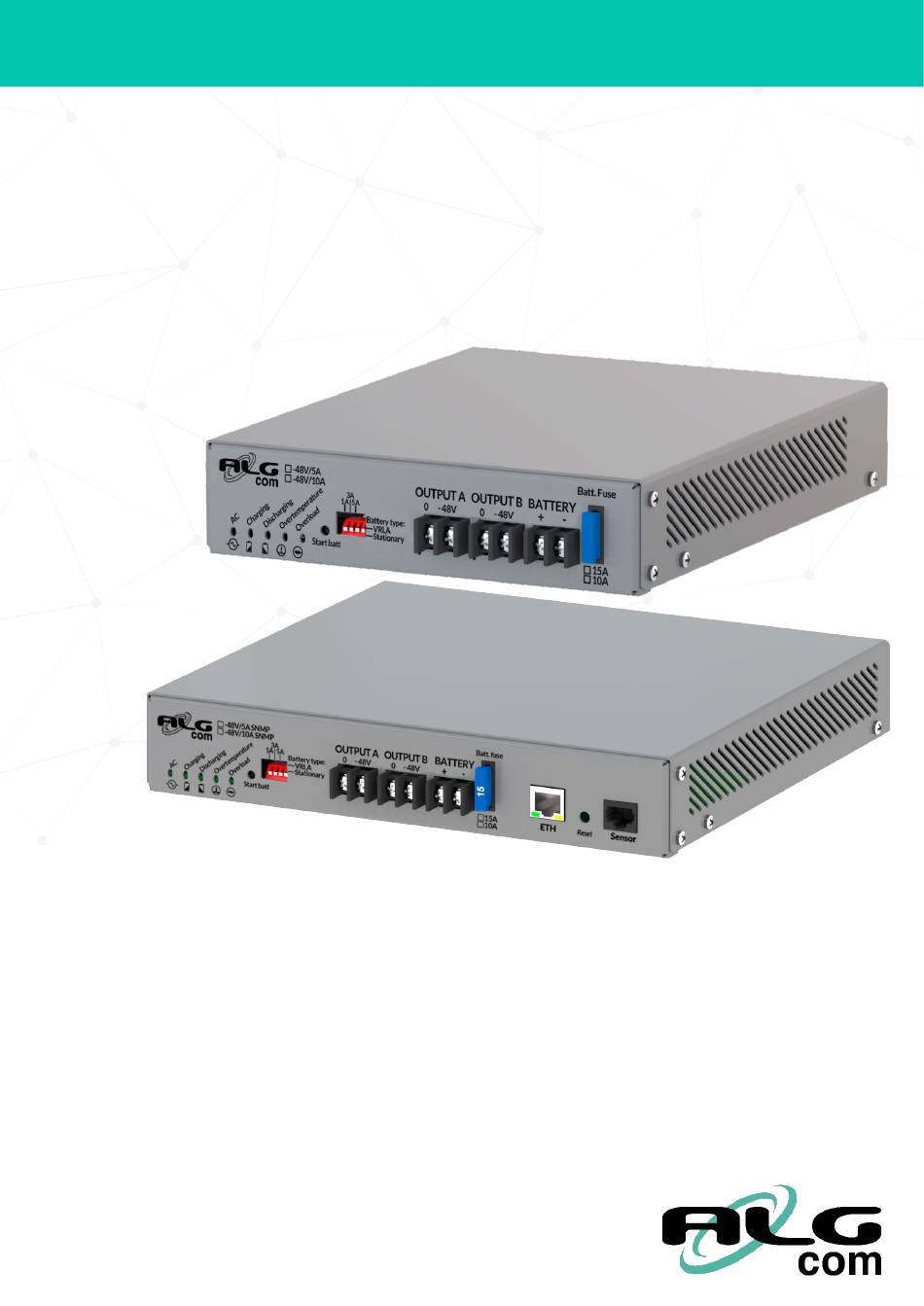

- Page 1 INSTALLATION GUIDE FN/ FN SNMP DC UPS 12V/20A 24V/10A 24V/15A -48V/5A -48V/10A CONGRATULATIONS! You have just acquired an ALGcom product. Thanks for your trust at choosing our company. We develop products to offer the best and most modern solutions in telecommunications! 11510050074_V2...
- Page 2 READ THE INSTRUCTIONS Before installing and connecting the product, read the instructions in this manual carefully. This label has the meaning of attention. This label has the meaning of danger and risk of electric shock. Caution A qualified technician may only do installation. Hazardous voltage and energy present can cause death or injury if the precautions in this manual are ignored.
- Page 3 DC UPS A/B - A AND B OUTPUT CONNECTOR Output DC UPS. Place where equipment should be connected. The voltage will vary depending on the operating state. See the table below. Model Nobreak mode output voltage AC mode output voltage 12V 20A VBAT>12V=12V VBAT<12V=VBAT...
-
Page 4: Installation
L - OUTPUT INDICATOR LED Indicates that the outputs for equipment are in service. M - GROUND CONNECTION Place to connect the protective ground at the DC UPS. It is necessary to connect this conductor or connect the ground through the AC input connector. Attention The connection to protective ground is mandatory. -
Page 5: Ground Connection
2 FIXATION To attach to the rack, attach the screws to the securing tabs and tighten by the rail. To attach to the wall, mount the side tabs 90°, fasten the screws first to the DC UPS and then to the wall. -
Page 6: Charger Configuration
4 CHARGER CONFIGURATION Manually set the battery charger to the desired charging current. 12V and 24V DC UPS -48V DC UPS 1A charger current mode 1A charger current mode Key 1 up Key 1, 2, 3 and 4 down 3A charger current mode 3A charger current mode Key 1 up Key 1 and 2 up... -
Page 7: Power Cable Connection
Connection of battery bank according to DC UPS voltage. Check the correct recommendation of the cables in the table below. DC UPS output current Recommended minimum gauge 0-10A 1mm² ou 16AWG 10-16A 1,5mm² ou 14AWG 16-25A 2,5mm² ou 12AWG The battery charger needs to recognize that the battery bank connected to its output is suitable. Without connecting the batteries, the voltage at the battery connector is 0V. -
Page 8: Equipment Connection
Table with values of voltage and input power. Voltage values Input current Model Minimal Maximum Frequency Maximum power Minimal Maximum 1,25A 12V 20A 300W 1,25A 24V 10A 50/60 Hz 400W 1,65A 24V 15A 100V 240V 300W 1,25A -48V 5A 600W 2,5A -48V 10A The maximum voltage values are 90 - 264V. -
Page 9: Snmp Installation
2) The load should continue to be powered from the battery, the ‘’AC’’ LED should be off and the “Discharging’’ LED should be on. DISCHARGING OUTPUT AC LED INDICATOR LED 3) Reconnect the AC power cable to the DC UPS. The "AC” LED and "Charging" LED must be on. í... -
Page 10: Command Screen
11 COMPUTER CONFIGURATION (WINDOWS) 1) Click on: Start>Control Panel>Network and Sharing Center. 2) Click on: Change Adapter Settings> Local Connection> Properties. 3) TCP/IP Version 4 Protocol (TCP / IPv4)>Properties. Configure your local network with the parameters. Example IP: 192.168.1.10 and netmask: 55.255.255.0, IP Gateway address: 192.168.1.1. 4) Confirm the current settings by clicking the OK button on both setup screens. - Page 11 14 WATCHDOG CONFIGURATION SCREEN The watchdog configuration screen allows the user to enter the IP addresses that will be monitored, the time between the monitoring tests and the respective output of the DC UPS that will act in the event of a negative response. Monitoring is done by sending a ping to the registered IP. The ping response timeout is fixed in 5 seconds.
- Page 12 Subgroup 3 – DC UPS input Parameters Description Type Parameters Access Power status, whether AC .1.3.6.1.4.1.49136.1.3.1.0 power is on or not Indicates whether there .1.3.6.1.4.1.49136.1.3.2.0 was a power outage in the last 10 minutes Indicates whether the 0 - no, 1 - yes Read-only battery connected .1.3.6.1.4.1.49136.1.3.3.0...
- Page 13 Subgroup 5 – DC UPS input Parameters Description Type Parameters Access Indicates the configured watchdog 1 action for .1.3.6.1.4.1.49136.1.5.1.0 10 minutes since the last event occurred 0 - normal, 1 - watchdog actuated Read- only Indicates the configured in the last 10 minutes watchdog 2 action for .1.3.6.1.4.1.49136.1.5.2.0 10 minutes since the last...
- Page 14 DIMENSIONS AND WEIGHT SNMP model Standard model 45 mm Height (a) 45 mm 225 mm Width (b) 186 mm 230 mm Depth (c) 230 mm Weight 1,94 kg 2,35 kg NECESSARY DISTANCE FOR VENTILATION PACKING Standard SNMP model model Cardboard Material Cardboard 30 mm...
- Page 15 Warranty Terms 1- Warranty term - This warranty is granted by ALGcom and it is valid for a period of one (1) year from the date of purchase of the sales invoice. - For further information about Warranty terms and expiration date, contact us by e-mail: sac@algcom.com.br, informing the model, serial number or batch number, manufacturing date and purchase invoice number.
- Page 16 5 - Repair and Technical Assistance Services - ALGcom provides repair and technical assistance services for its products. Please note: that out-of-warranty products will only be repaired under client approval of repair services quotation price. - Products repaired outside the original warranty of the product have three (3) months warranty. - For products repaired within the warranty period, the warranty expiration date remains the same.
