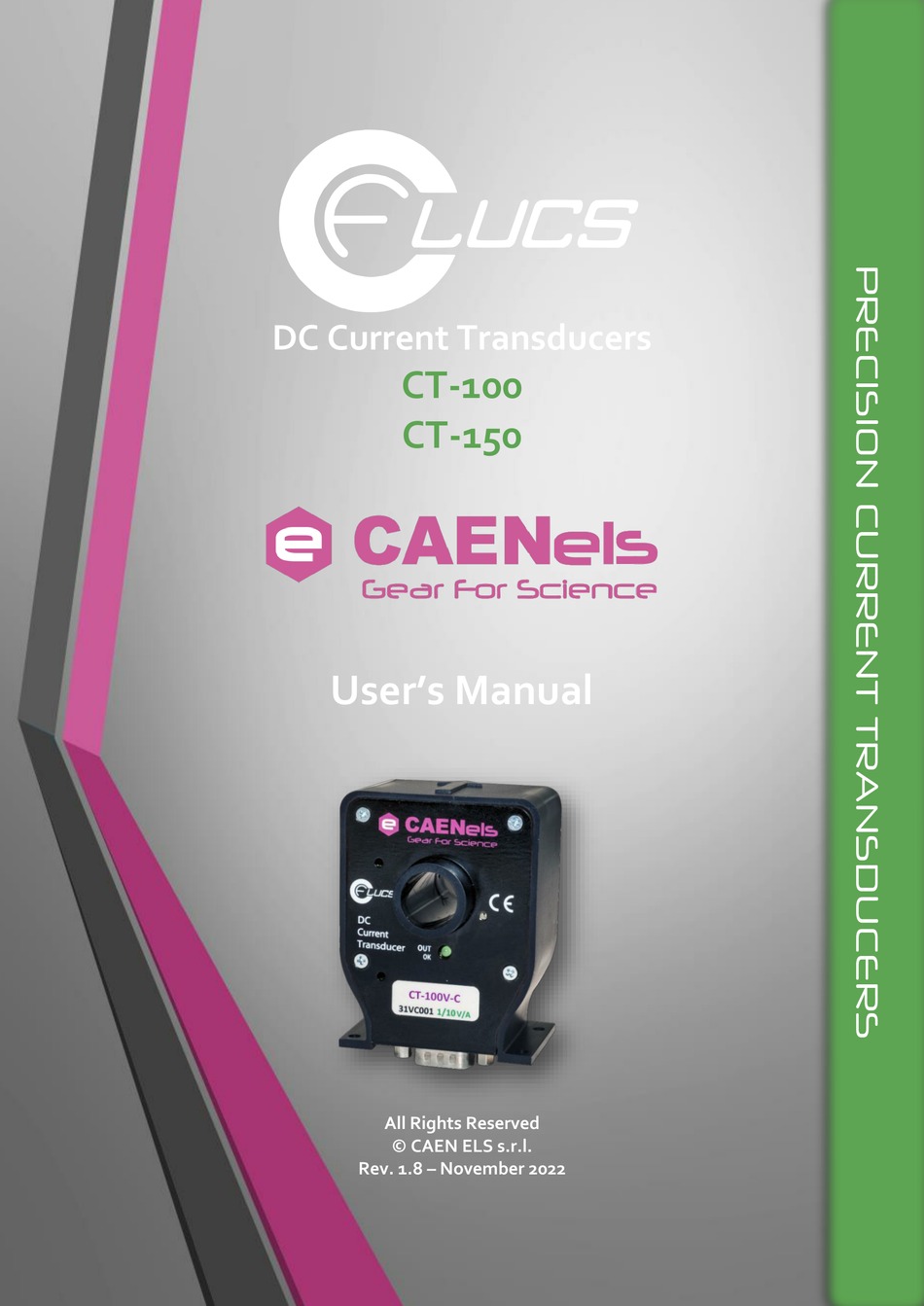

- Page 1 < DC Current Transducers CT-100 CT-150 User’s Manual All Rights Reserved © CAEN ELS s.r.l. Rev. 1.8 – November 2022...
- Page 2 CT-100/CT-150 Series User’s Manual CAEN ELS s.r.l. Via Vetraia, 11 55049 Viareggio (LU) – Italy Mail: info@caenels.com Web: www.caenels.com...
-
Page 3: Table Of Contents
CT-100/CT-150 Series User’s Manual Table Of Contents INTRODUCTION ....................9 CT-100/CT-150 S ............... 9 ERIES VERVIEW CT-100/CT-150 M ............ 11 ODELS AND ERSIONS INSTALLATION AND OPERATION ............12 ..............12 ECHANICAL ONSIDERATIONS 2.1.1 “C” - version and Pinout ................. 13 2.1.2 “P”... - Page 4 CT-100/CT-150 Series User’s Manual Revision Date Comment June 9 2014 Document created November 3 2014 Manual graphics changed February 24 2016 Updated external shunt values July 8 2016 Added data to technical specifications September 20 2017 Added insulation characteristics March 12 2018 Added information on GND connection March 27...
- Page 5 CT-100/CT-150 Series User’s Manual Safety information - Warnings CAEN ELS will repair or replace any product within the guarantee period if the Guarantor declares that the product is defective due to workmanship or materials and has not been caused by mishandling, negligence on behalf of the User, accident or any abnormal conditions or operations.
- Page 6 CT-100/CT-150 Series User’s Manual – Power Supply Recommendations PS1215 We strongly recommend using this product with the CAEN ELS PS1215 power supply, which has been especially deigned in order to obtain low-noise operation and it is suited for DCCT measurement system where switching power supplies could corrupt measuring accuracy, precision and noise.
- Page 7 CT-100/CT-150 Series User’s Manual Read over the instruction manual carefully before using the instrument. The following precautions should be strictly observed before using the CT-100/CT- 150 DCCTs: • Do not use this product in any manner not WARNING specified by the manufacturer. The protective features of this product may be impaired if it is used in a manner not specified in this manual.
- Page 8 CT-100/CT-150 Series User’s Manual The following table shows the general environmental requirements for a correct operation of the instrument: Environmental Conditions Requirements Operating Temperature 0°C to 45°C Operating Humidity 30% to 85% RH (non-condensing) Storage Temperature -10°C to 60°C Storage Humidity 5% to 90% RH (non-condensing)
-
Page 9: Introduction
CT-100/CT-150 User’s Manual Introduction 1. Introduction This chapter describes the general characteristics and main features of the CT- < 100/CT-150 DC current transducer series 1.1 CT-100/CT-150 Series Overview < (O-FLUx Current Sensor) family is based on a closed loop technology that allows accurate and precise monitoring of DC and AC currents with high bandwidth. - Page 10 CT-100/CT-150 User’s Manual Introduction Due to the excellent characteristics, the O-FLUCS transformers can be used in a variety of calibration, acceptance testing and quality control applications in the industrial and automotive fields. Front view of a CT-100/CT-150 current transducer in its DB-9 connector version is presented in Figure 1 <...
-
Page 11: Ct-100/Ct-150 Models And Versions
CT-100/CT-150 User’s Manual Introduction 1.2 CT-100/CT-150 Models and Versions < current transducer series CT-100/CT-150 is available in eight different versions that differ by the measurement range, the connectors and the output type – i.e. secondary current-output (standard) or secondary voltage-output (“V” version). -
Page 12: Installation And Operation
CT-100/CT-150 Series User’s Manual Installation and Operation 2. Installation and Operation General considerations and description of pinout and functionalities are herein presented. 2.1 Mechanical Considerations Each version of the CT-100/CT-150 current transducer presents an embossed “arrow” on the plastic part of the casing that indicates the verse of positive primary current measurement. -
Page 13: C" - Version And Pinout
CT-100/CT-150 Series User’s Manual Installation and Operation 2.1.1 “C” - version and Pinout The CT-100/CT-150 series “C” models have a standard D-sub 9-pin connector (i.e. “DE-9” or, commonly referred to as “DB-9”) in both their current output and voltage output versions. The standard pin numbering to refer to is herein presented in Figure 4 Pin #5 Pin #1... -
Page 14: P" - Version And Pinout
CT-100/CT-150 Series User’s Manual Installation and Operation 2.1.2 “P” - version and Pinout The CT-100/CT-150 series “P” models have 7-pin through-hole connections in both their current output and voltage output versions. The standard pin numbering to refer to is herein presented in Figure 5 Pin #1 Pin #7... -
Page 15: Mounting
CT-100/CT-150 Series User’s Manual Installation and Operation 2.2 Mounting The CT-100/CT-150 series current transducers can be mounted in different configurations, depending on product models and versions. The “C” versions are usually meant to be implied in rack-mount applications, by means of any of the two (2) different 4-hole patterns placed in different sides of the mechanical case. -
Page 16: Primary Current Path
CT-100/CT-150 Series User’s Manual Installation and Operation The self-threading screws can have a maximum length of 15 mm, diameter of 2.9 mm, and the types that can be used are hereafter listed: • UNI 8119 • DIN 7504 - P •... -
Page 17: Secondary-Side Signals
CT-100/CT-150 Series User’s Manual Installation and Operation the same principle, in the CT-150 a primary current full-scale if 75A and of 50A respectively is obtained by connecting primary conductor as follows in Figure 9 Figure 9: Primary full-scale current of 50A (left) and of 33.3A (right) in CT-100 or primary full-scale current of 75A (left) and of 50A (right) in CT-150 Do not apply rated full-scale primary current (i.e. -
Page 18: Voltage Output ("V" Versions Only)
CT-100/CT-150 Series User’s Manual Installation and Operation 150) is fed to pin #6 in “C”-option and to pin #6 in the “P”-option. Current return pins are respectively found on pin #1 and on pin #7 in the “C”- and the “P”-option. Maximum secondary current is rated at ±100 mA and an external shunt resistor, which can be placed close to the user’s desired measuring circuit, is needed in order to convert the current signal to voltage. -
Page 19: Status Signal
CT-100/CT-150 Series User’s Manual Installation and Operation In the voltage output “V”-versions of the transducers the current output pin I (pin #6) and its return (pin #1 on “C” and pin #7 on “P”) are not present. Please note that output impedance for the “V”-version models is 50 Ω and it is low-pass filtered with a 0.5-µs time constant. - Page 20 CT-100/CT-150 Series User’s Manual Installation and Operation transducer is correctly working while it is at high level (>14.5V) when the transducer is not. In the configuration presented in , the current transducer can be easily Figure 11 interfaced to a digital microcontroller, a Digital Signal Processor or an FPGA, supplied by a +3.3V voltage source.
-
Page 21: Ordering Options
CT-100 Series User’s Manual Ordering Options 3. Ordering Options The CT-100/CT-150 Series current transducers have different models and versions differing by the secondary output signal types and different connections. The ordering code is formatted as follows: Connections Output Version Full Scale Range C = DB-9 connector 100 = 100A full scale current empty = current output... -
Page 22: Technical Specifications
4. Technical Specifications Technical Specifications for current transducers of the CT-100/CT-150 Series (both current and voltage output versions) are herein presented. Technical Specifications CT-100 CT-150 Current Transformation 1:1000 1:1500 Ratio - N Maximum DC Primary ±100 A ±150 A Current - I P(DC) Maximum RMS Primary 71 A... -
Page 23: Equivalent Input Noise
Series User’s Manual CT-100/CT-150 Mechanical Dimensions Secondary Coil Resistance - 43 Ω 34 Ω < 30 ppm / FS Accuracy (typ.) < 0.25% / FS (“V” - version) D-sub 9 connector ("C"-model) Connections 7-pin strip TH type ("P"-model) Operating Temperature 0°C –... -
Page 24: External Shunt Resistor
Noise CT-100 Noise CT-150 2000 20000 Bandwidth (Hz) Figure 13: Equivalent Input Noise graph (typical values) 4.2 External Shunt Resistor The maximum value of the external shunt resistor that can be connected on the output pin in the current-output versions is shown hereafter in the following chart. CT-100 [mA] Figure 14: CT-100 maximum external shunt resistor (Current version only) -
Page 25: Insulation Characteristics
Series User’s Manual CT-100/CT-150 Mechanical Dimensions CT-150 [mA] Figure 15: CT-150 maximum external shunt resistor (Current version only) 4.3 Insulation characteristics In the following table are represented the insulation characteristics of the CT- 100, CT-150 current transducers. Parameter Value Reference IEC 61010-1 conditions Rated insulation voltage (RMS), 2000 V... -
Page 26: Mechanical Dimensions
5. Mechanical Dimensions The mechanical dimensions of the CT-100/CT-150 Series DC Current Transducers are hereafter presented (all dimensions are in mm). 5.1 CT-100/CT-150 Series “C”-version Figure 16: Mechanical drawings for CT-100/CT-150 Series “C” Version... -
Page 27: Ct-100/Ct-150 "P"-Version
Series User’s Manual CT-100/CT-150 Mechanical Dimensions 5.2 CT-100/CT-150 “P”-version Figure 17: Mechanical drawings for CT-100/CT-150 Series “P” Version... - Page 28 < User’s Manual...
