Summary of Contents for H&H SF-828

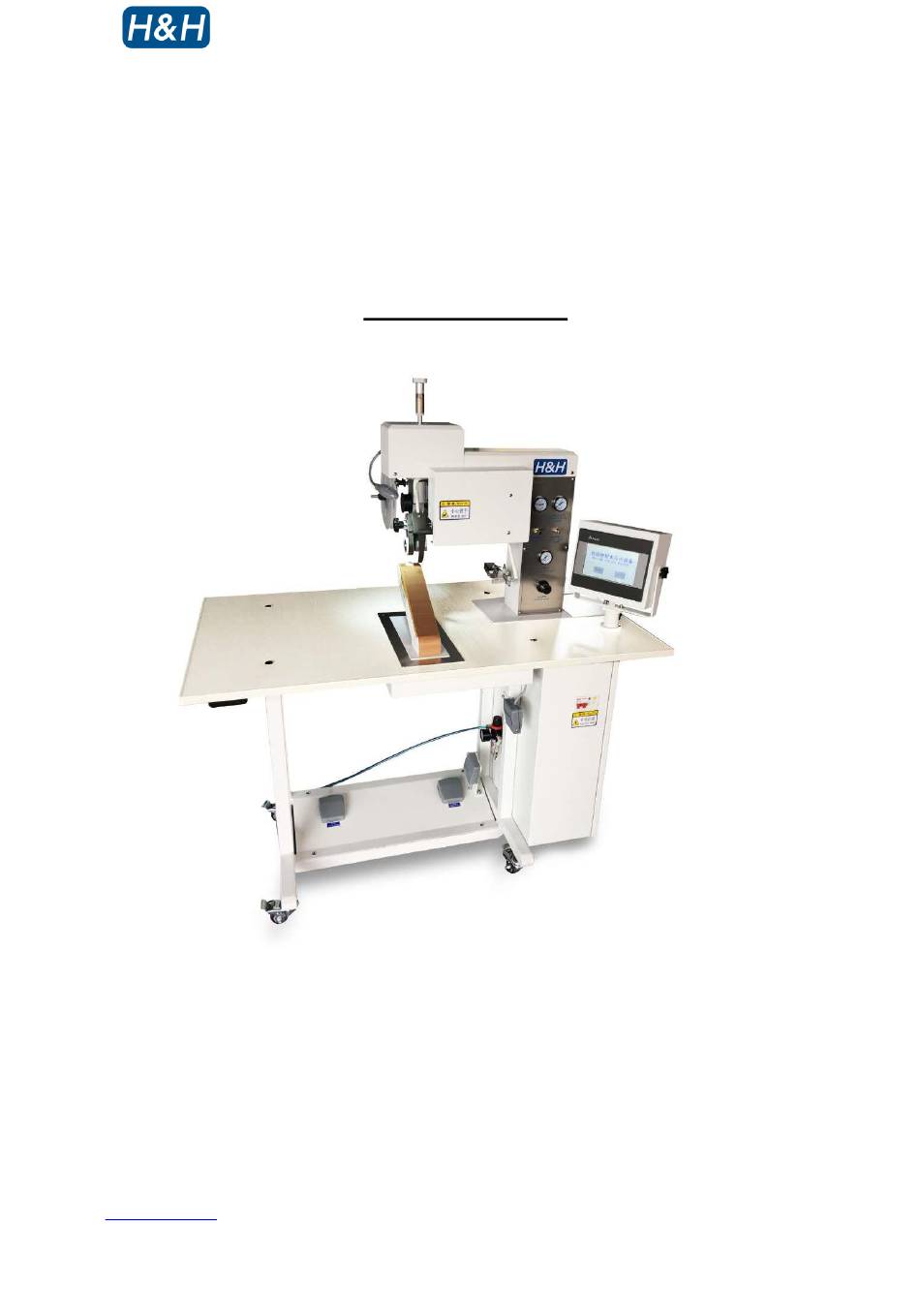

- Page 1 SF-828 Multifunctional bonding Machine Operation Manual is powered by H&H Asia Group Limited service@hh.com.hk t = 852.24813068 f = 852.24813727 Room 1117, 11/F, Asia Trade Centre, 79 Lei Muk Road, Kwai Chung, N.T., Hong Kong.

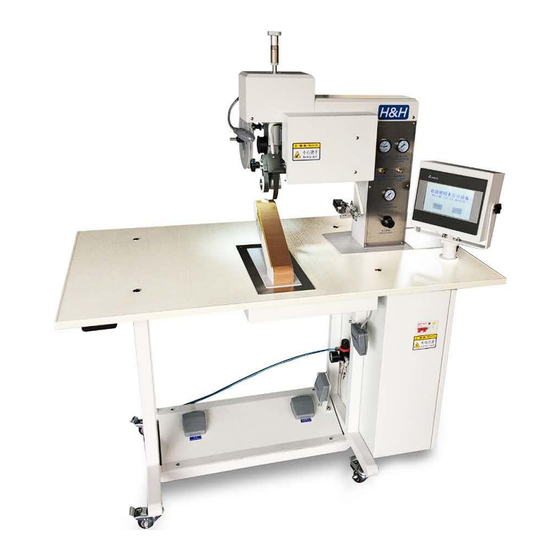

- Page 2 SF-828 operation manual Introduction Thank you for choosing SF-828 multifunctional bonding machine by H&H. The SF-828 multifunctional bonding machine is a new product developed of different characteristics of fabric, can be sticking strip, overlap, folding and wrapping and other processes.
-
Page 3: Specifications
SF-828 operation manual Specifications Model SF-828 Voltage 220 V, single phase Frequency 50/60 Hz Power Consumption 2680W Compressed Air >0.4Mpa 6~20(mm) Working width Overall Dimensions 1220mm (L) x 700mm (W) x 1450mm (H) 130 kg Overall Weight Note: due to continuous improvement, specifications are subjected to change without prior notification. - Page 4 SF-828 operation manual Features Multi-function selection job: sticking strip, overlap, hemming and wrappingfunction Up and down four heating devices to ensure a more solid fit Touch screen center control, easy to operate Freely pressure regulation, speed independent control, suitable for different fabric operations.
-
Page 5: Preparation For Installation
SF-828 operation manual Preparation for Installation Installation must be carried out by authorized personnel. Follow the steps below: 1. Position the machine on a flat surface and allow at least 50cm clearance on both sides as well as the back side, this is essential for the hot air ventilation and also... - Page 6 SF-828 operation manual Fig.1 8. Select the language,then it will turn to the main page.(shown in Figure 2) Turn to parameter page Fig.2 9. The control center internal parameter setting is the factory value parameter (shown in Figure 3) issue 1 17.08.22...
- Page 7 SF-828 operation manual Turn to advanced page Fig. 3 Note: "parameter setting" factory password is "888888", "advanced setting" factory password is "88888899"； "advanced settings" parameter for the manufacturers to adjust the machine set the parameters, not free to change, otherwise it will affect the machine running performance.
- Page 8 SF-828 operation manual Boot test Check the upper and lower wheel pressure Adjust the top of the cylinder adjustable screw and lock cover Press the foot switch of upper and lower mold at the same time Gradually adjust the distance between the cutter wheel and the lower mold to change the pressure until you can completely cut the current work piece.
- Page 9 SF-828 operation manual Folding Function-sticking strip Overlap Function sticking strip Wrapping Fig.5 The installation of jet nozzle: Close the hot air adjust (upper) when installing the jet nozzle, that is tightened clockwise. “hot air indication” displayed as 0Mpa, After fitted with jet nozzle, In the upper wheel press down, the control center "upper hot air"...
- Page 10 SF-828 operation manual Note: the nearest distance between the gas nozzle and the heat conducting slot is about 1mm, which is the best distance (as shown in Figure 7). Upper Upper Nozzle wheel Nozzle wheel Fig.7 The use and installation of each function parts 1) sticking strip function: After the adhesive tape is installed, you can use it directly.
- Page 11 SF-828 operation manual Sticking strip function Fig.8 2) folding function ： This function is used for cuffs and so on ， Arc 、 straight and curved edges. adjust the position between it and the lower wheel before installing the folding brink frame ， and tighten the retaining screws(as shown in Figure 9).
-
Page 12: Belt Inspection
SF-828 operation manual Overlap width adjust Overdrive fixing screws Overlap function Fig.10 4) wrapping function: This function is suitable for all kinds of cloth single-fold wrapping operation. adjust the position between it and the lower wheel before installing the pack brink frame，and tighten the retaining screws(as shown in Figure 11). - Page 13 SF-828 operation manual Tension regulator (1) Tension regulator (2) Fig.12 2) By adjusting the left and right movement of the biased device, the central distance between the adhesive tape and the cutting piece can be changed(as shown figure 13). biased device Fig.13...
- Page 14 SF-828 operation manual The role of the foot pedal(as shown Figure 14) 1. Up / Down: The upper wheel is down or up. Press down one time and press again; 2. Start / stop: The action of the upper and lower wheels and the blowing start and stop.
- Page 15 SF-828 operation manual Control panel instructions (as shown in Figure 15) 1) Hot air indication (upper): Upper blowing air volume display. At the same temperature setting, the greater the air flow, the higher the actual temperature； 2) Hot air adjust (upper): Adjust the air volume of the upper blow.
- Page 16 SF-828 operation manual Fig.15 Boot steps Adjust the temperature, pressure, speed, hot air volume required for the workpiece. In general, the speed ratio of the upper and lower wheels is 1: 1.2（as shown in figure16-1）. When the hemming, overlapping, wrapping, the upper and lower wheel speed should be consistent (as shown in Figure 16-2).
- Page 17 SF-828 operation manual Maintain Preventative In order to keep the machine in top running condition, regular maintenance is important for trouble free operation. This will minimize possible down time and to prolong machine life. Check the tightness of the upper and lower wheel timing belt every 3 months, adjust the internal timing belt tension wheel can change the tightness of the belt;...
- Page 18 SF-828 operation manual Appendix Wiring Scheme SF-828 Electrical control issue 1 17.08.22 P .17 of 12...
