Summary of Contents for WORKSTREAM 39512

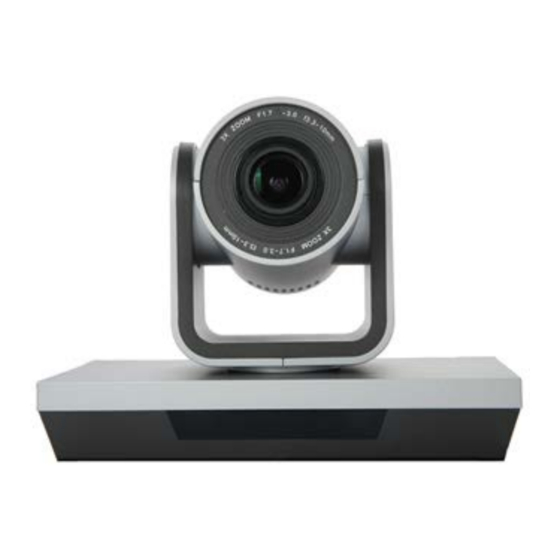

- Page 1 PTZ Conference Camera P/N 39512 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •... - Page 3 Unplug this device from the power source when • not in use. Take care to prevent damage to the power cord. • Do not allow it to become crimped, pinched, walked on, or become tangled with other cords. Ensure that the power cord does not present a tripping hazard.
-
Page 4: Package Contents
FEATURES Compact and simple design • 2.1 megapixel camera with a 1080p resolution • Equipped with smooth motors for pan and tilt • movement Advanced video algorithm guarantees high quality • video 3x optical zoom • Compatible with the VISCA and PELCO-D camera •... - Page 5 1x User's Manual...
-
Page 6: Remote Control Overview
REMOTE CONTROL OVERVIEW 1. Reset Button, LED Indicator, and Power Button 2. Device Selection: The camera address code and remote control address code must correspond (set the camera code to 1-3 in the OSD menu). 3. Pan and Tilt Controls: Use the directional keys to move the camera pan and tilt. -
Page 7: Sample Connection Diagram
menus. Press the Rev button to flip the camera image or use a mirror image. 7. Preset Control Buttons: After pressing a Preset Address Button, press Set to save the preset, press Clear to erase the preset, or press the Call button to move the camera to the saved preset position. -
Page 10: Technical Support
Technical support is available through the online chat button on our website www.monoprice.com or through email by sending a message to tech@monoprice.com. Check the website for support times and links. SPECIFICATIONS Model 39512 Image Sensor 1/2.8" Sony® CMOS Effective Pixel 2.1 Megapixel White Balance... - Page 11 Auto focus, f=3.3~10 Lens Focus Range Iris Fixed Zoom 3x optical Field of View 73° Video Output USB 3.0 Type-B Connector 1080p@30Hz, Video Output 720p@30Hz, 800x600, Resolutions 640x480 Communications VISCA, PELCO-D Protocols Baud Rate Range 9600bps ~ 38400bps Preset Positions Image Flip Supported Pan Movement Speed...
-
Page 12: Regulatory Compliance
0 ~ 95% RH, Operating Humidity noncondensing 7.1" x 4.4" x 5.1" Dimensions (180 x 112 x 129 Weight 18.9 oz. (535g) REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
