Style selections CFI-7138-01 Manual

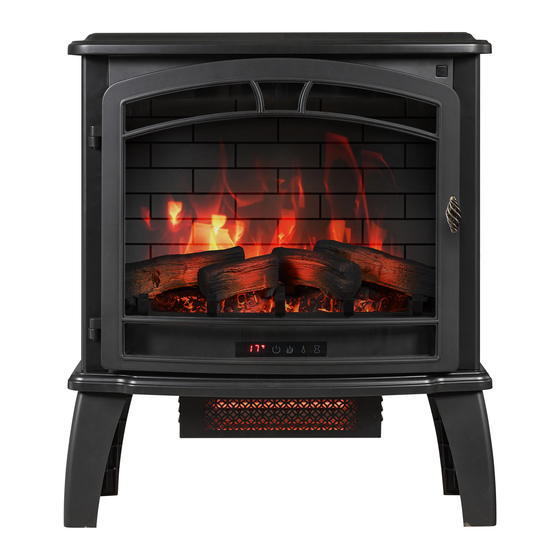

3d electric stove
Hide thumbs

Advertisement

Table of Contents

Style Selections
is a registered trademark
®
of LF, LLC. All rights reserved.
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-888-8225, 8:30 a.m. – 7 p.m. (ET), 7 Days a Week
You may also contact us anytime at Partsplus@lowes.com
Purchase Date
ITEM #3730318
3D ELECTRIC STOVE
MODEL # CFI-7138-01
Français p.14
Español p.28
ATTACH YOUR RECEIPT HERE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFI-7138-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Style selections CFI-7138-01

Summary of Contents for Style selections CFI-7138-01

  • Page 1 ITEM #3730318 3D ELECTRIC STOVE MODEL # CFI-7138-01 Français p.14 Style Selections is a registered trademark ® Español p.28 of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-888-8225, 8:30 a.m.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications ..........................2 Safety Information........................3 PackageContents........................5 Preparation........................5 Assembly Instruction........................6 Operating Instructions.......................7 Troubleshooting........................9 FCC/IC Information........................11 Care and Maintenance......................11 Warranty..........................11 Battery Replacment .........................12 Replacement Parts List......................13 PRODUCT SPECIFICATIONS VOLTAGE 120VAC, 60 Hz AMPS 12.5 Amps WATTS 1500 Watts A250...

  • Page 3: Safety Information

    SAFETY INFORMATION When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
  • Page 4 13. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance. 14. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where opening may become blocked.

  • Page 5: Packagecontents

    PACKAGE CONTENTS 4x12mm Screw Qty: 8 PART DESCRIPTION QUANTITY Stove Main Body Assembly Screws Legs Remote Control PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product.

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTIONS 1. Align the 2 mounting tabs into the bracket. 2. Slide the legs outward to lock in place. When locked in position the screw hole from step 3 will be aligned. 3. Fasten the legs to the base using the included screws,1 per leg.

  • Page 7: Operating Instructions

    OPERATION INSTRUCTIONS REMOTE RECEIVER CONTROL PANEL LOCATION FUNCTION ICON DESCRIPTION The power button supplies power to all of the POWER fireplace functions.The power button will put the insert in a standby mode. This will turn off all functions at once, but will hold the settings in the memory.

  • Page 8: Troubleshooting

    TROUBLESHOOTING PROBLEM ROOT CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of The thermostat the fireplace and check that the thermostat is Display shows sensor is broken or plugged into the main circuit board. If this does “ ”.
  • Page 9 TROUBLESHOOTING PROBLEM ROOT CAUSE CORRECTIVE ACTION Unit blows cool or Defective heater blower cold aiUnit blows Replace heater/blower assembly. motor. cool or cold air. Dirty heater blower Gently vacuum heater blower vents. motor. Noise with heater Defective heater blower Replace heater/blower assembly. motor.

  • Page 10: Fcc/Ic Information

    FCC/IC INFORMATION Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 11: Warranty

    1-YEAR LIMITED WARRANTY The manufacturer warrants that your new Electric Stove is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 12: Battery Replacment

    BATTERY REPLACEMENT NOTE: Do not mix old and new batteries. Do not mix alkaline, standard (carbon zinc), or rechargeable (nicad, ni-mh, etc.) batteries. Note: Battery disposal Please always dispose of batteries at a suitable recycling point CAUTION: • Do not ingest batteries. •...

  • Page 13: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-888-8225, 8:30 a.m. – 7 p.m. (ET), 7 Days a Week. PART DESCRIPTION QUANTITY PART # Main Circuit Board Y21-S304-P15 Receiver Circuit board Y21-S304-P42R Control Panel Circuit Board Y21-S304-P32 Handle Y21-S304-DP...
