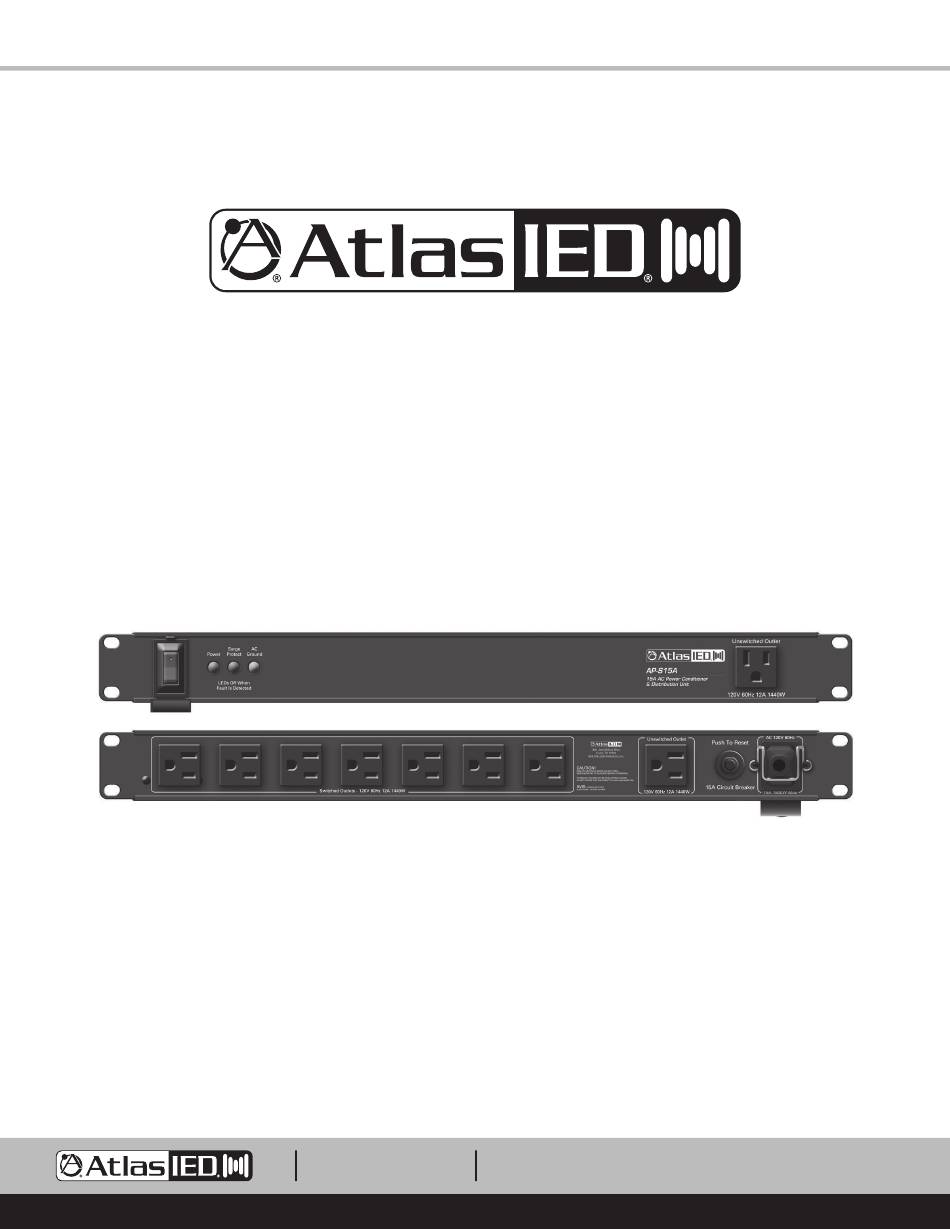

- Page 1 AP-S15A AC Power Conditioner & Distribution Unit 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Table Of Contents
AP-S15A Owner’s Manual Table of Contents Important Safety Instructions ....................................3 Introduction .......................................... 5 Key Features and Applications ....................................6 Front Panel Description ......................................7 Rear Panel Description ......................................8 Installation ..........................................9 AC Power Cord Retainer System ..................................9 Specifications ........................................11... -
Page 3: Important Safety Instructions
AP-S15A Owner’s Manual Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 AP-S15A Owner’s Manual WARNING - When The Device Is In Use • WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords.
-
Page 5: Introduction
The AP-S15A is unique in that the integrator can select the power cord length that is required for the installation. A removable 12' IEC power cord with a retainer bracket is supplied with the unit. A shorter or longer cord can be purchased separately if needed. -
Page 6: Key Features And Applications
Applications The AP-S15A was designed to be flexible with features that allow it to be used in a variety of applications. The AP-S15A can be used solely for protection against voltage surges or for AC distribution. If fuzzy video or frequent static pops occur, the AC power conditioning may eliminate or reduce those inconveniences. -
Page 7: Front Panel Description
2. Power Switch & Cover To turn the AP-S15A On or Off, press the switch to the On (up) or Off (down) position. When the Power Switch is in the On (up) position and the power cord is plugged into 115V - 120V and voltage is present, the Blue Power LED will illuminate. When the Power Switch is in the Off (down) position the Blue Power LED will not be illuminated. -
Page 8: Rear Panel Description
4. Unswitched AC Outlet The 120VAC outlet is always live when the AP-S15A power cord is plugged into an AC mains power source. Note: The AC mains power switch does not affect the Unswitched AC Outlet but it is protected with surge protection circuitry. -
Page 9: Installation
AC Power Cord Retainer System Connect the IEC 14 Gauge 12' (4m) power cord to a 15A 120VAC outlet to provide power to the AP-S15A by aligning the pins of the cord to the pins on the chassis and inserting the cord. Press firmly to assure a good connection. - Page 10 AP-S15A Owner’s Manual System Type Power Conditioner & Suppressor Load Rating Safety Listings UL 60950-1 Standard Front Panel Outlets 1 Unswitched, Note: All Outlets are Surge and RF Protected Activation Switch Rocker with Security Cover Indicators AC Power ON (Blue), Surge Protect (Red), Ground (Green)
-
Page 11: Specifications
120V 60Hz 12A 1440W 15A 1800W Max Power Distribution Unit Caution: Model: AP-S15A To reduce the risk of electric shock, use only in dry locations indoors! 3.75" Voltage Protection Rating: 400V(L-N) 500V(L-G) 400V(N-G) Do not plug into another relocatable power tap. The input plug of this... -
Page 12: Warranty
This warranty gives you specific legal rights and you may have other rights which vary from state to state. Service Should your AP-S15A require service, please contact the AtlasIED warranty department through the online warranty claim process. Online Warranty Claim Processes Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be...
