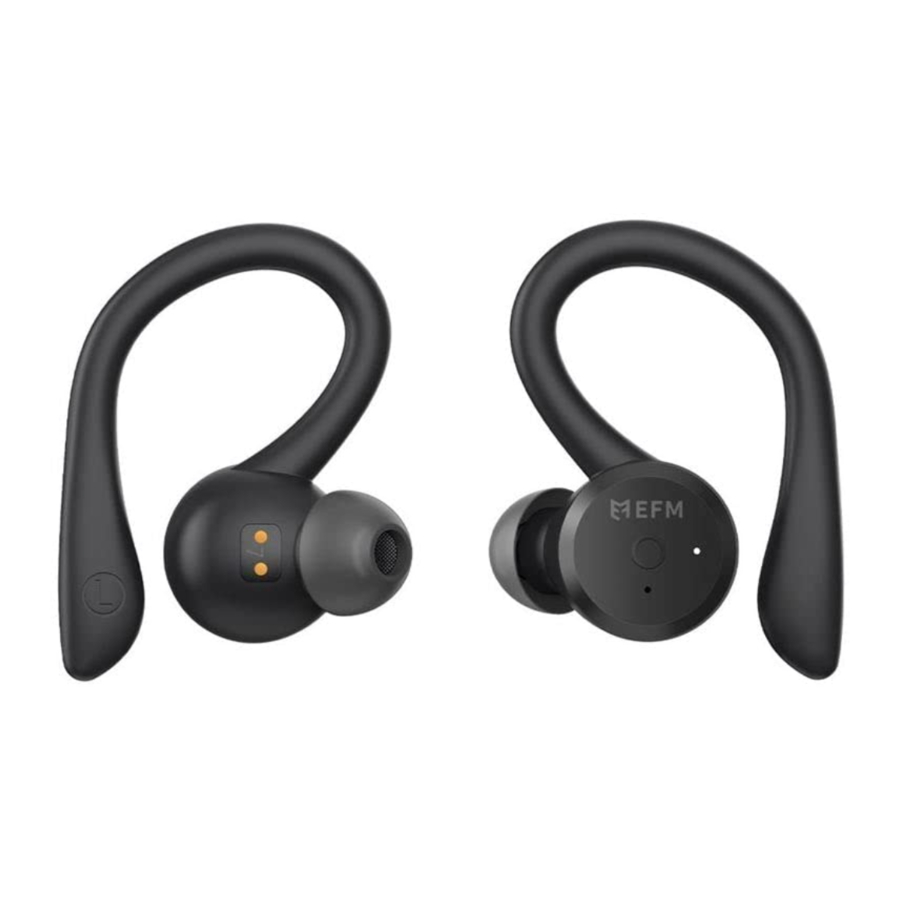

EFM TWS PELION - True Wireless Stereo HD Earbuds Manual

Table of Contents

Contents

1 INTRODUCTION
2 PACK CONTENTS
3 SPECIFICATIONS
4 FEATURES
5 SAFETY PRECAUTIONS
6 TECHNICAL SPECIFICATIONS
7 OVERVIEW DIAGRAM
8 HOW TO USE/GENERAL FUNCTIONS
9 CHARGING YOUR EARBUDS AND CHARGING POD
10 WEARING YOUR EARBUDS
11 CONNECTING EARBUDS TO YOUR PHONE
12 AUTOMATIC CONNECTION
13 LISTENING TO MUSIC
14 CALLS & VOICE COMMANDS
15 VOICE COMMANDS
16 TURN EARBUDS OFF AND ON
17 The EFM 2 Year WARRANTY
18 Documents / Resources
- 18.1 References
- 18.2 Download manual

INTRODUCTION

You can use this product with all IOS and Android compatible Bluetooth^® devices to stream music and enjoy handsfree calling. In order to get the best results when using these earbuds, please read this manual first.

PACK CONTENTS

1 x EFM® TWS Pelion Eearbuds & Charging Pod
1 x 25cm USB Charging Cable
1 x User Manual
3 x Earbud Tips
(Sizes: Small / Medium / Large)
2 x Sports Earbud gels (Sizes: Small / Medium)
1 x Sports Ear hook

SPECIFICATIONS

Frequency Response: 20Hz - 20KHZ
Sensitivity: 91±3dB
Impedance: 16Ω±15%
Driver: 6mm Dynamic

FEATURES

IPX7 Water Proof
Handsfree function
5.5 days standby time / 6 hours music and talk time
Wireless microphone / multi-function control (10m range)
Voice commands: Activate Siri or Google Assistant

SAFETY PRECAUTIONS

Keep this product and its charging cable away from excessive heat.
Do not operate this device with a damaged cable or after it has malfunctioned or has been damaged in any manner.
Do not disassemble this product.

TECHNICAL SPECIFICATIONS

General Headset Features

Standard	Bluetooth Specification V5.0
Bluetooth^® Headset Profile	Support
Bluetooth^® Hands Free Profile	Support
Bluetooth^® A2DP Profile	Support
Bluetooth^® AVRCP Profile	Support
Support TWS	Support
Theoretical range in open field	<10m without obstruction
Re-program the firmware	None
Battery	3.7V, 60mAh Lithium polymer Battery (type)
Stand By (Paired mode)	5.5 days
Talk Time	6 hours
Battery Charging Case	500mAh Charging time < 3.5 hours

OVERVIEW DIAGRAM

HOW TO USE/GENERAL FUNCTIONS

Desired Result	Required Action
Power On	Simply remove earphones from the Charging Pod, if the earbuds are off, press the L/R MFB for 2 seconds to turn back on, the earphone will automatically go into pairing mode.
Power Off	Place earphones into the Charging Pod or press and hold for 5 seconds.
Pairing	Activate the Bluetooth ® function on our device and select EFM Pelion. The earbuds will automatically pair with the device. Press the 'YES' soft key on the phone to connect to the headset, pairing is successful. Earphones distance range up to 10 metre and working range is 180 seconds.
Play / Pause Next Track	Single click the R/L Multi-Function Button. Long Press R MFB for 2 seconds
Previous Track	Long Press L MFB for 2 seconds
Answer / End Call	Single click MFB when call is incoming.
Transfer Call Voice	To transfer call during call mode, press & hold Multi-Function button for 2 seconds.
Voice Assistant	Double Press the MFB button
Reject Microphone Call	Press & Hold the Multi-Function button for 2 seconds
General Notes	For Voice dial, your mobile phone must support this function. (check the mobile phone manual)
Resetting Earbuds	Make sure all Bluetooth fucntions is off, turn off earbuds and press the MFB on both earbuds for 10 seconds, white & red LED will flash, once the resset is success a white & red LED will repeated flash 5x.

CHARGING YOUR EARBUDS AND CHARGING POD

Fully charge the battery for 3-4 hours before using the earbuds for the first time, or when they have been unused for extended periods. The charging pod has a built-in Power Bank and is charged along with the earbuds. You can charge the earbuds by placing them into the charging pod without connecting to a power outlet.

Place the earbuds into the charging pod, the LED indicator on each earbud will be on when charging and turn off when fully charged
Connect one side of the supplied cable to the charging port of charging case and connect the other side to any USB power source. The Charging Pod will indicate its charging status by a flashing white light.
When the device is fully charged, the LED will stop flashing.

CHARGING STATUS
Earphones	LED will be disappears when fully charged
Charging Pod	White LED light when fully charged

WEARING YOUR EARBUDS

The earbuds come with comfortable silicone buds for your everyday use. Try all the different size earbuds that are provided in the package to find the best fit for your ears. You can get the best audio quality when the earbuds seal your ear canal.
WEARING YOUR EARBUDS
NOTE: Your left and right ears may need different size earbuds. Insert the earbuds with the earbuds directed towards your ear canal. Twist gently until they fit comfortably and fell secure in your ears.

CONNECTING EARBUDS TO YOUR PHONE

Take earphone from the charging pod to enter pairing mode.
Turn on Bluetooth ® on your phone and select EFM Pelion to pair with this earphone.
When the earphones are not on the charging box, and earphones are power off. Press the MFB (multi-function button) on both earphones for 2 seconds to turn on the earphones. The earphones will automatically enter pairing mode
After this earphone is successfully paired with your phone, TWS can remember up to three Bluetooth devices. You just need to repeat the above steps to pair with another Bluetooth device. The earbuds will only automatically connect with the last paired Bluetooth device.

AUTOMATIC CONNECTION

Now you have properly set up your earbuds, they will connect to your phone automatically from now on.

Auto Connect
Earphones are automatically connected to your phone when you pull them out of the charging pod.

Auto Off
Earphones are turned off automatically when you put them into the charging pod.

LISTENING TO MUSIC

Now you have properly paired and connected your earbuds to your phone, the rest is easy. To play music, launch your favourite music player app (eg. Spotify, Apple music etc) and start playing your songs.

To pause music, click the button on MFB earphone once.
To resume music, press the button on the MFB earphone.
Next tracks, Long press the button for 2 seconds on the R MFB
Previous tracks, Long press the button for 2 seconds on the L MFB

CALLS & VOICE COMMANDS

When earbuds are connected to your phone, you can answer and control the incoming calls.

Answer / End a Call
When a call comes in while you are wearing the earbuds, you will hear a notification sound from your earphone.

To answer a call, click the button on the earphone once.
To end a call, click the button once again.
To transfer a call during call mode, press and hold button for 2 seconds.

Click Action	Phone call
Single click	Answer or end a call
Press & Hold 2 seconds	Transfer call during call mode

VOICE COMMANDS

Double click the MFB earphone to activate Siri or Google Assistant. You will hear 'Voice Dial' prompt from the earphone.
You can start dictating commands to Siri or Google Assistant.

Click Action	Phone call
Double click	Activate Siri or Google Assistant

TURN EARBUDS OFF AND ON

There are two ways you can turn the earbuds Off/On: WITH charging pod and WITHOUT the charging pod.
TURN EARBUDS OFF AND ON
The easiest way to turn earbuds on/off is with the charging pod.

Turn Earphones Off/On WITH Charging Pod
To turn off the earbuds, put earbuds back into charging pod.

Turn Earphones Off/On WITHOUT Charging Pod
You can turn earbuds on/off without using the charging pod.

To turn off earbuds, press and hold the button on both the earbuds for 5 seconds until you hear notification' from both earbuds Both earbuds will turn off together.
To turn on earbuds, press the button on BOTH earbuds for 5 seconds you will hear 'notification' from both earbuds.

The EFM® 2 Year WARRANTY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
EFM® will happily repair or replace defective goods for up to 2 years from the date of purchase. This warranty is against defects in the EFM® goods purchased and does not cover damage caused by the incorrect use or installation of the goods, or by modifications, or by accident.
To claim under the warranty, you need to return the faulty product to the place of purchase (at your expense) with a valid proof of purchase. If you are not able to return the product to the place of purchase, you can contact:
EFM Customer Service Department
61 Belmont Avenue, Belmont WA 6104
P: 1300 069 336 (1300 0 MYEFM) E: info@myefm.com

The 2 Year Warranty covers EFM® product and not your device. Whilst we stand by our products, EFM® will not be liable to any damages caused to your device from accidental impact. For more information visit myefm.com/warrantysupport
