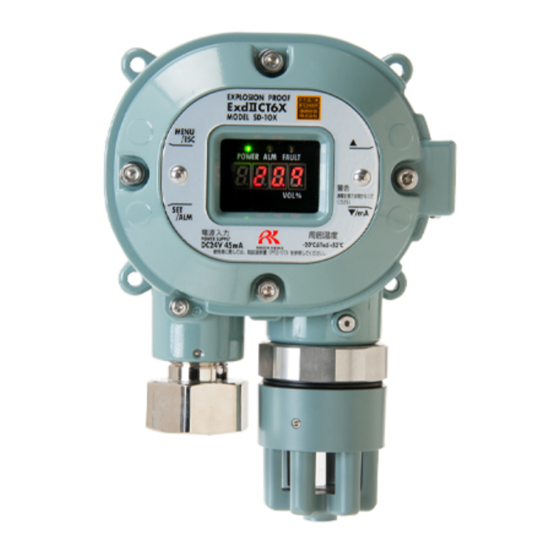

- Page 1 PT2E-2625 Smart Transmitter/Gas Detector Head SD-1DOX-AS (TYPE H) Operating Manual (PT2E-179) (PT2-179)
- Page 2 Operating Precautions This detector is an oxygen deficiency detector that detects oxygen in the air and triggers an oxygen deficiency alarm. The oxygen deficiency detector is a safety unit, not an analyzer or densitometer which performs quantitative/qualitative analysis/measurement for oxygen. Please fully understand the following points before using it, so that it can be used properly.
-
Page 3: Table Of Contents
<Contents> 1 Outline of the Product ......................2 1-1. Preface ..........................2 1-2. Purpose of use ........................ 2 1-3. Definition of DANGER, WARNING, CAUTION, and NOTE ..........2 1-4. Method of confirmation for Standards and Explosion proof specification ......3 2 Important Notices on Safety.................... -
Page 4: Outline Of The Product
Outline of the Product 1-1. Preface Thank you for choosing our smart transmitter/gas detector head SD-1DOX-AS(TYPE H). Please check that the model number of the product you purchased is included in the specifications on this manual. This manual explains how to use the detector and its specifications. It contains information required for using the gas detector properly. -
Page 11: Product Components
3 Product Components 3-1. Main unit and standard accessories Product Components 3-1. Main unit and standard accessories <Main Unit> <Standard Accessories> Operating manual ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ one Dedicated handling lever ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ one Dedicated control key ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ The supplied quantity depends on the number of units to be delivered. 1 to 10 units 11 to 20 units 21 to 50 units... -
Page 14: Names And Functions For Each Part
3 Product Components 3-2. Names and functions for each part (6) Alarm lamp (7) Fault lamp (5) Power lamp (1) MENU/ESC key (3) ▲ key (8) Concentration value display (2) SET key (4) ▼ key Used to enter the maintenance mode. MENU/ESC key It is also used to cancel in a specific mode. -
Page 19: How To Use
4 How to Use 4-3. Precautions for system designing Introducing protective measures against lightning If cables are installed outside the factory/plant, or if internal cables are installed in the same duct as the cables coming from outside the factory/plant, "lightning" will cause problems. Because lightning acts as a large emission source while cables act as a receiving antenna, devices connected to the cables may be damaged. -
Page 35: Operations And Functions
6 Operations and Functions 6-1. Alarm activation Operations and Functions 6-1. Alarm activation Oxygen concentration alarm: Activated when the detected oxygen concentration reaches or exceeds the alarm setpoint value. <<Auto-Reset Operation>> NOTE The alarm setpoint is factory-set. Although the alarm delay time (standard: 2 seconds) works in the detector to prevent a false activation, it can be cancelled if not needed. -
Page 36: Fault Alarm Activation
After the detector is successfully returned from the fault, it restarts with the process normally performed right after it is turned on (initial clear). If the detector has problems and is repeatedly malfunctioning, contact RIKEN KEIKI immediately. <Display Operation> Fault Detail Display Display a message indicating the fault detail. -
Page 39: Maintenance
7 Maintenance 7-1. Maintenance intervals and items Maintenance The gas detector is an important instrument for the purpose of safety. To maintain the performance of the gas detector and improve the reliability of safety, perform a regular maintenance. 7-1. Maintenance intervals and items ... - Page 40 7 Maintenance 7-1. Maintenance intervals and items <About Maintenance Services> We provide services on regular maintenance including span adjustment, other adjustments and maintenance. To make the calibration gas, dedicated tools, such as a gas cylinder of the specified concentration and gas sampling bag must be used.
-
Page 55: Troubleshooting
9 Troubleshooting Troubleshooting The Troubleshooting does not explain the causes of all the malfunctions which occur on the detector. This simply helps to find the causes of malfunctions which frequently occur. If the detector shows a symptom which is not explained in this manual, or still has malfunctions even though remedial actions are taken, please contact our overseas sales department or local representatives. - Page 56 9 Troubleshooting <Abnormalities of Readings> Symptoms Causes Actions Drifting of sensor Perform the zero adjustment (or span adjustment). output A very small amount of the gas to be detected may be The reading rises (drops) leaking (slow leak). Because ignoring it may cause Slow leak and it remains so.
-
Page 57: Product Specifications
10 Product Specifications 10-1. List of specifications Product Specifications 10-1. List of specifications <ATEX/IECEx・Oxygen Deficiency Alarm Specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector SD-1DOX head Gas concentration display LED(4digits・7segments) Measuring range... - Page 58 10 Product Specifications 10-1. List of specifications Transmission distance Less than 1.25km in case of CVVS 1.25mm Less than 2.0km in case of CVVS 2.0mm Power supply DC24V±10% Power consumption MAX.1.1W Cable connecting port Adapter A<NPT1/2> or adapter B<NPT3/4> or Pressure proof packing gland <G3/4>...
- Page 59 10 Product Specifications 10-1. List of specifications <ATEX/IECEx・Gas monitoring specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector head SD-1DOX Gas concentration display LED(4digits・7segments) Measuring range 0 - 5vol%/0 - 10vol%/0 - 25vol%/0 - 50vol%/0 - 100vol%...
- Page 60 10 Product Specifications 10-1. List of specifications <ATEX/IECEx・Leak alarm specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector head SD-1DOX Gas concentration display LED(4digits・7segments) Measuring range 0 - 50vol% Detection method Aspirator suction type Sampling condition Atmosphere equivalent (Compressed air：0.1 - 0.7MPa・Consumption Max.
- Page 61 10 Product Specifications 10-1. List of specifications Outline Drawings 【Adapter A<NPT1/2>】 - 59 -...
- Page 62 10 Product Specifications 10-1. List of specifications <TIIS・Oxygen Deficiency Alarm Specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector head SD-1DOX Gas concentration display LED(4digits・7segments) Measuring range 0 - 25vol% Detection method Aspirator suction type Sampling condition Atmosphere equivalent (Compressed air：0.1 - 0.7MPa・Consumption Max.
- Page 63 10 Product Specifications 10-1. List of specifications <TIIS・Gas monitoring specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector head SD-1DOX Gas concentration display LED(4digits・7segments) Measuring range 0 - 5vol%/0 - 10vol%/0 - 25vol%/0 - 50vol%/0 - 100vol%...
- Page 64 10 Product Specifications 10-1. List of specifications <TIIS・Leak alarm specifications> Model SD-1DOX-AS Type TYPE H Detection principle Galvanic cell method Detectable gas Applicable gas detector head SD-1DOX Gas concentration display LED(4digits・7segments) Measuring range 0 - 50vol% Detection method Aspirator suction type Sampling condition Atmosphere equivalent (Compressed air：0.1 - 0.7MPa・Consumption Max.
- Page 65 10 Product Specifications 10-1. List of specifications Outline Drawings 【Cable gland<G3/4>】 - 63 -...
-
Page 67: Definition Of Terms
11 Definition of Terms Definition of Terms This is a principle of the sensor installed in the detector head. Galvanic cell type See "10-2. Detection principle" for details. A unit used to express the percentage of a specific substance (or gas) in a volume of vol% solution. - Page 68 Revision History Issue Revision details Issue date First issue 3/22/2018 Declaration of Conformity 12/23/2019 Declaration of Conformity 4/1/2020 Safety information, Declaration of Conformity 8/1/2020 Safety information, Declaration of Conformity 8/21/2020 Declaration of Conformity 11/12/2021...
