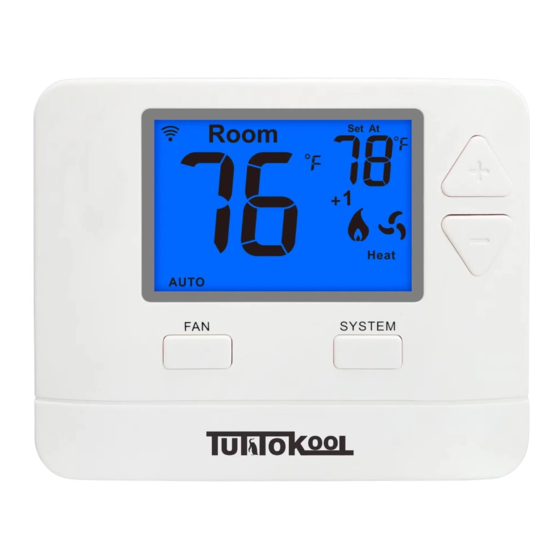

Model Number:TK-721
System Switch
LCD Display
Fan Switch
Temperature Setpoint Buttons
Battery Door
LCD Display
See page 4 for details
Fan Switch
Select ON or AUTO."ON"
will run the fan continuously.
"AUTO"will cycle the fan
on/off only when system is
on/off.
System Switch
Selecting HEAT turns on
the heat . Selecting
COOL turns on the cool.
Selecting OFF turns
system off.
Selecting EmH (for heat
pumps with auxiliary heat)
will lockout the compressor
and turn on the emergency
heat.
Temperature Setpoint Buttons
Press the + or - buttons to
select the desired room
temperature
up or down
.
Battery Door
See page 5 for details.
Advertisement
Related Manuals for TUTTOKool TK-721
Summary of Contents for TUTTOKool TK-721
- Page 1 LCD Display System Switch Model Number:TK-721 See page 4 for details Selecting HEAT turns on the heat . Selecting COOL turns on the cool. Selecting OFF turns Fan Switch system off. Selecting EmH (for heat Select ON or AUTO.“ON” pumps with auxiliary heat) will run the fan continuously.
- Page 2 Battery Door lnstallation Displays the setpoint temperature. Remove tab between the System Operation batteries to Indicators: activate the The COOL,HEAT, thermostat.High EmH or icon will quality alkaline display when batteries are the COOL,HEAT, recommended. Emergency heat or Low Battery lndicator: (fan) is on.
- Page 3 Mail Complete the form below and mail it to the address shown. Warranty Registration Name: Thermostat Model: Address: Date lnstalled: Thermostat SN: Complete form and mail to: City: State: Thermostat Warranty Regiatration Zip: Tuttokool 4350 Seaboard Rd, Orlando FL 32808...
