Summary of Contents for VOLTIUM ENERGY VE-SPBT-2450

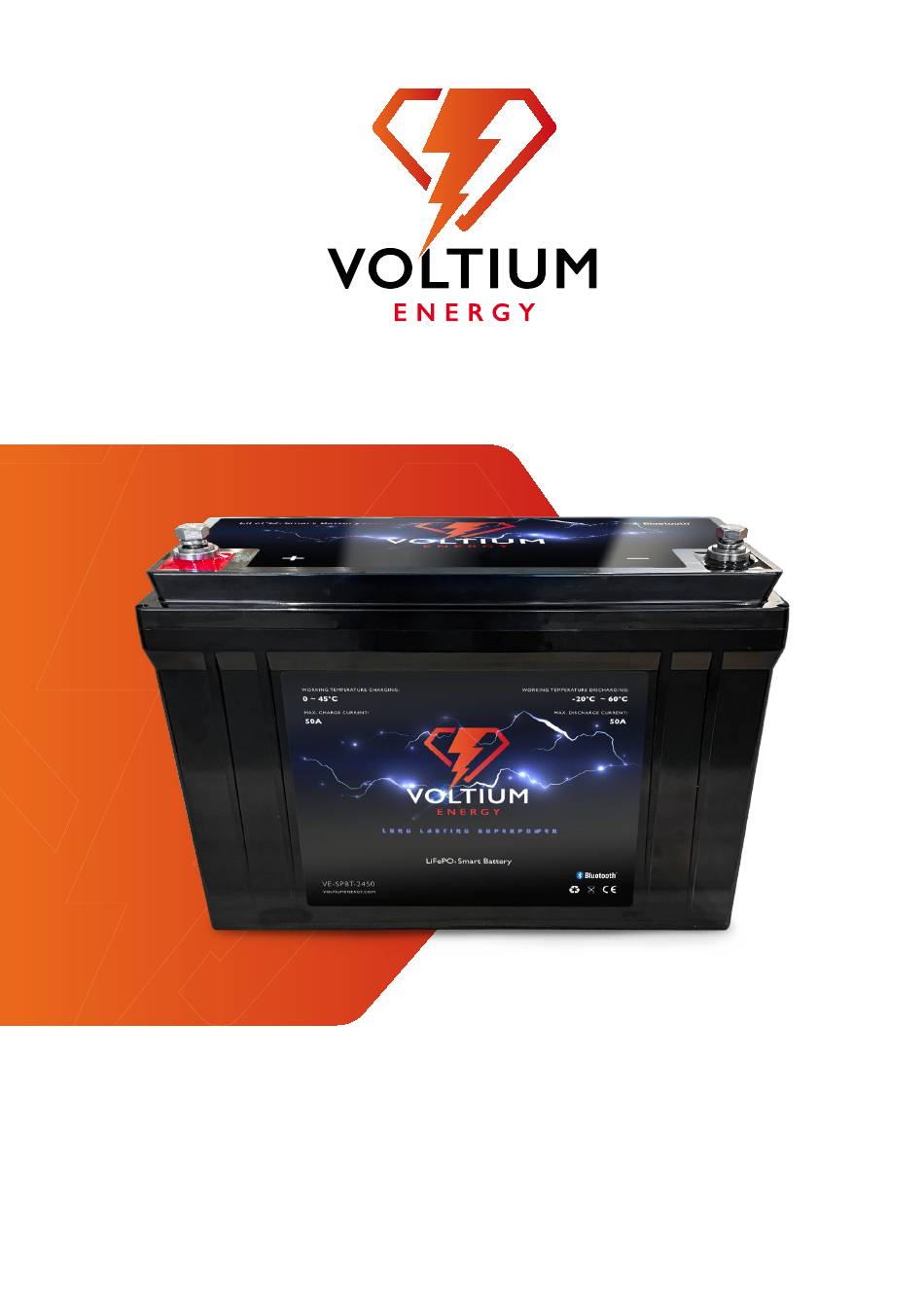

- Page 1 USER GUIDE Voltium Energy LiFePO4 Battery...
-
Page 2: Table Of Contents
VOLTIUM ENERGY LIFEPO4 APP . . . . . . . . . . . . . . . . . . -
Page 3: Check
Upon receipt of your product, please make sure that it is externally undamaged and that no parts are missing. If this should be the case, do not use the battery and contact the dealer. CONTENT Voltium Energy LiFePO4 accu ࠠ Screws and washers (these are fixed in the plus and minus terminals) ࠠ... - Page 4 SHORT CIRCUIT PROTECTION Installed batteries must be protected by a fuse. MAINTENANCE For proper maintenance of the battery, keep the terminals and the surface clean, tighten the clamps securely, and lightly grease them. The full battery cycle must be used at least once per year to maintain battery capacity and to calibrate the battery status.
-
Page 5: Using The Battery
USING THE BATTERY BMS FUNCTIONS Each 12.8V battery consists of four serially connected battery cells. Each 25.6V battery consists of eight serially connected battery cells. The internal BMS system is a security system with the following functions: Passive balancing: During ‘’TOP’’ charging, the battery cells are balanced individually. This ࠠ... - Page 6 SPECIFICATIONS FOR CHARGING AND DISCHARGING THE BATTERY 12.8V models CHARGING SPECIFICATIONS DISCHARGING SPECIFICATIONS Output volrage 14.6V 10.0V Charging voltage discharged battery Recommended ‘float’ Recommended output 13.8V 12.8V – 10V charge voltage in voltage range standby Model- Model- Max. discharging Max. charging current dependant dependant current...
-
Page 7: Frequently Asked Questions
THE BLUETOOTH FUNCTION DOES NOT WORK All you need to use the Bluetooth function is the Voltium Energy LiFePO4 app. This app allows you to connect to the Voltium Energy LiFePO4 battery. A direct connection via Bluetooth on your smartphone is not possible. - Page 8 CAN THE BATTERIES BE CONNECTED IN SERIES OR IN PARALLEL? All Voltium Energy LiFePO4 batteries can be used in parallel or in serial connection. All models support the use of 4 batteries in parallel or in series, without requiring additional engineering.
-
Page 9: Glossary
GLOSSARY IMPORTANT TERMS This list contain explanations of some common terms and abbreviations. TERM/AFKORTING TOELICHTING LiFePO4 Lithium Iron Phosphate Battery Management System State Of Charge Battery Communication Interface Depth of Discharge CCCV Constant Current, Constant Voltage An operating period during which the battery is fully discharged Cycle and then recharged. -
Page 10: Voltium Energy Lifepo4 App
LIFEPO4 APP INSTALLATION By scanning the QR code with your smartphone you can download the version of the Voltium Energy LiFePO4 app for the operating system of your I O S APP smartphone. You are automatically taken to the App store (Apple) or the Google Play store (Android).
