Summary of Contents for Sedal HYDRON iRED Plus

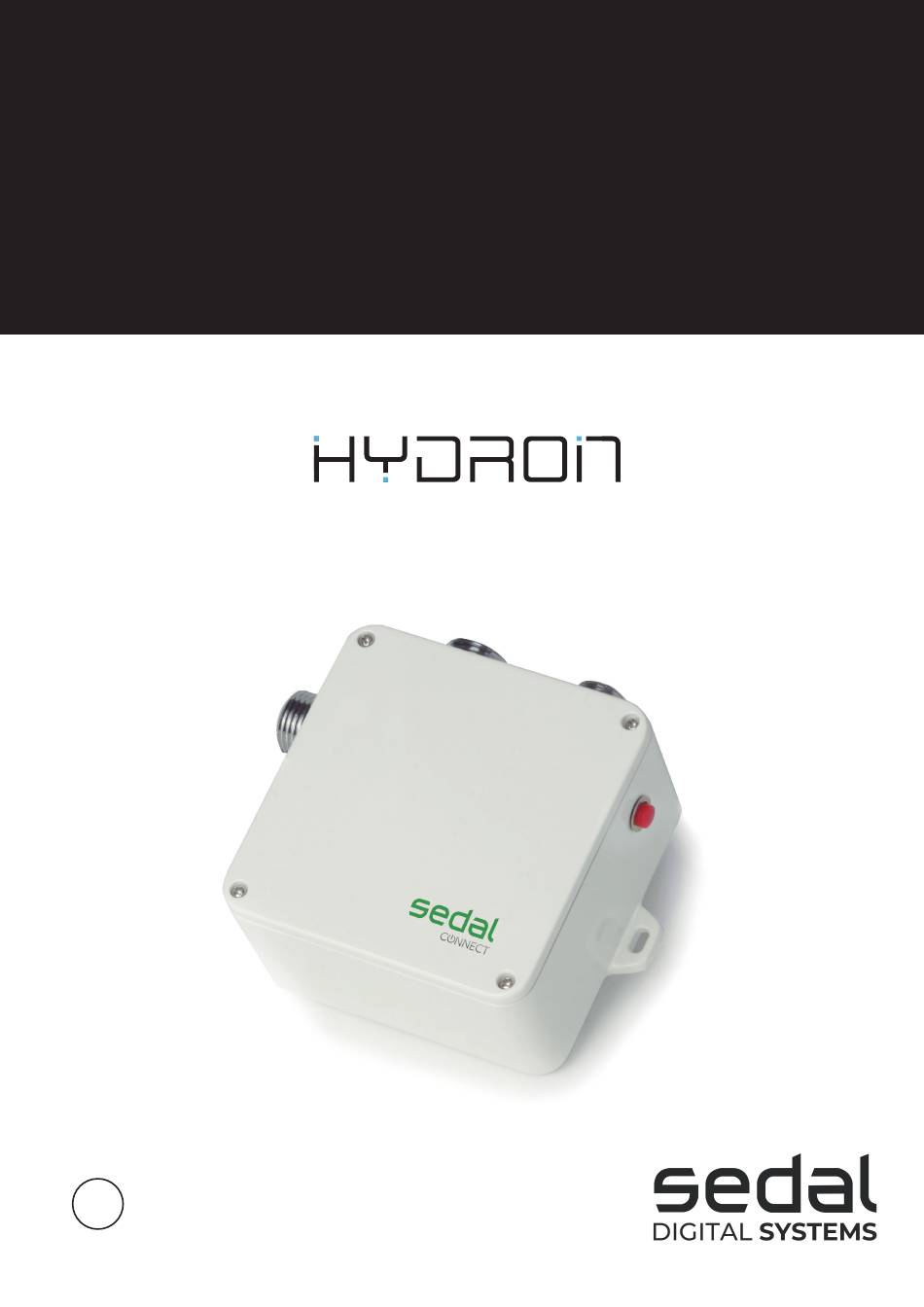

- Page 1 USER MANUAL H Y D R O N i R E D + electronic water control systems...
- Page 2 U S E R M A N U A L · H Y D R O N i R E D + I N D E X Main devices description ..............3 Components list ................. 4 Dimensions ..................6 Technical specifications ..............7 Advise of installation.
- Page 3 Care taken during the installation will provide a long, trouble-free life from your shower. Products manufactured by Sedal are safe and without risk provided they are installed, used and maintai- ned in good working order in accordance with our instructions and recommendations.
- Page 4 U S E R M A N U A L · H Y D R O N i R E D + M A I N C O M P O N E N T S D E S C R I P T I O N iRED description Electronic system with self-adjusting distance functionality powered by batteries, power supply or batteries and power supply for infrared...
- Page 5 U S E R M A N U A L · H Y D R O N i R E D + T E C H N I C A L S P E C I F I C A T I O N S Voltage supply DC: 6V AC: 230V (50Hz) / 110 –...
- Page 6 U S E R M A N U A L · H Y D R O N i R E D + C O N N E C T I O N S C H E M A T I C S 1.
- Page 7 U S E R M A N U A L · H Y D R O N i R E D + I N S T A L L A T I O N T I P S According to the product version (DC or AC+DC), open control In case of version with batteries, introduce the 4 AA alkaline box and remove the battery box.
- Page 8 U S E R M A N U A L · H Y D R O N i R E D + I N S T A L L A T I O N T I P S Fix control box to the wall . Install filter elements and connect the water inlets (IN/OUT).
- Page 9 U S E R M A N U A L · H Y D R O N i R E D + U S I N G M O D E Before use During use After use NOTE: When your hand enters the inductive field the water flows. Remove your hand from the field to stop the water. It will stop automatically after flushing 30 seconds continuously.
- Page 10 U S E R M A N U A L · H Y D R O N i R E D + M A I N T E N A N C E Clean the filter Please ensured the filter is cleaned every 6 month or if the water flow is reduced. CONTROL BOX HOSE (INLET)
