Spec for SL200
LoRaWAN Water Leak Sensor
Jiangsu Rejeee Intelligent Technology Co., Ltd
Address: No. 20,Xinghuo Road, Jiangbei District, Nanjing, China
Email:
Jullie.zheng@rejeee.com
Tel: 0086 158 6180 7793
Web:
http://www.rejeee.com
1. General Information
SL200 is long range low power water leak sensor based on Semtech SX1262/SX1268, which is standard LoRaWAN
Class A compatible and is widely adopted in environment monitoring.
Sensor Type
Water Leak Sensor

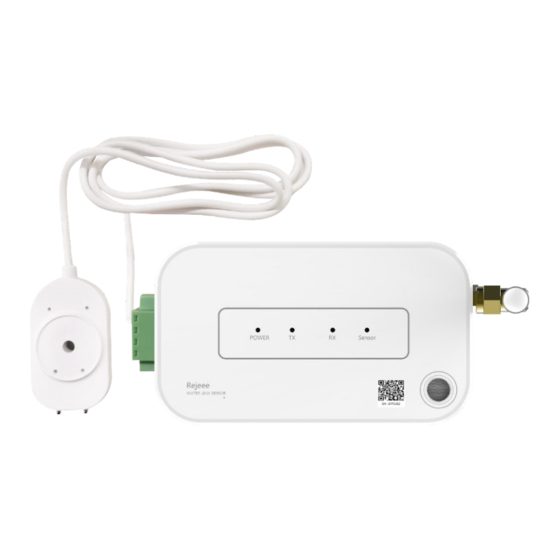

SL200 Water Leak Sensor
Product Number
SL200CN, SL200EU,SL200US,SL200AS
Advertisement
Table of Contents
Related Manuals for Rejeee SL200 Series
Summary of Contents for Rejeee SL200 Series

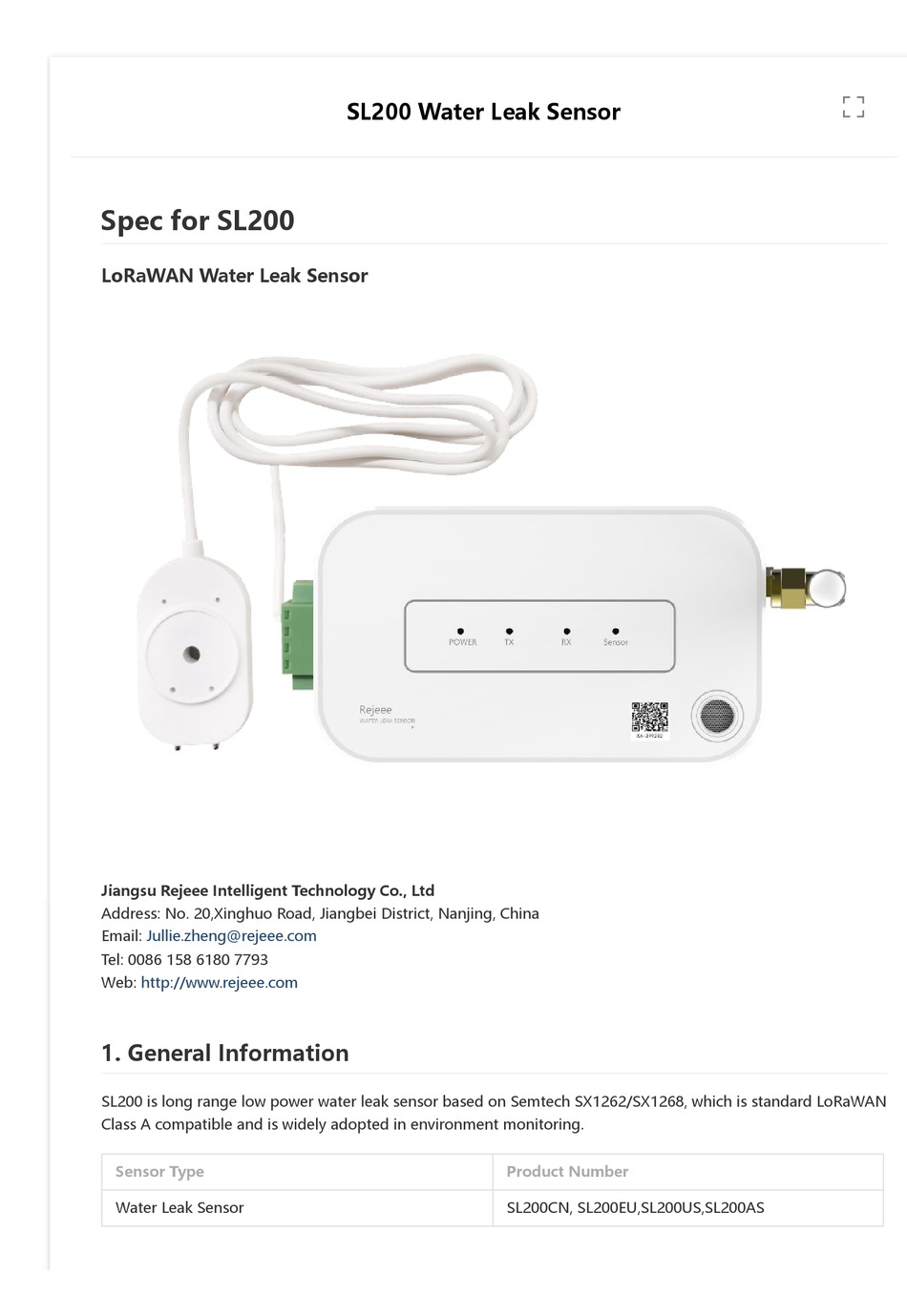

- Page 1 SL200 Water Leak Sensor Spec for SL200 LoRaWAN Water Leak Sensor Jiangsu Rejeee Intelligent Technology Co., Ltd Address: No. 20,Xinghuo Road, Jiangbei District, Nanjing, China Email: Jullie.zheng@rejeee.com Tel: 0086 158 6180 7793 Web: http://www.rejeee.com 1. General Information SL200 is long range low power water leak sensor based on Semtech SX1262/SX1268, which is standard LoRaWAN Class A compatible and is widely adopted in environment monitoring.
- Page 2 1.1 Main features High sensitivity water leak sensor Type-C for Local Configuration Internal Battery Up to 10 Years LoRa SX1262/SX1268, Long Range Low Power LoRaWAN Class A Compatible 1.2 Details Parameters Feature STM32L151 Wireless LoRaWAN(SX1262/SX1268) Encryption AES128 Power Built-in Li-battery (Changeable, and No Recharge) Battery Capacity 5400mAh Communication...
- Page 3 Parameters Feature Size 102mm*60mm*25mm TX Power 22dBm Max RX Sensitivity -140 dBm SX1268: CN470 Frequency SX1262: EU868 / US915 / AS923 1.3 Size: 102mm*60mm*25mm 1.4 Installation...
- Page 4 Lay the product flat on the table Hang on the wall 2. User Guide Make sure antenna is installed before turn on the device. 2.1 Turn on/off the device When you get the device, it is off. Just press the button for 3 seconds and you can turn on the device. When you turn on the device, there are 4 led on the top, all led will twinkle from left to right.
- Page 5 while sending data as below: 2.3 Led display on the device 4 led on top of the device, and they are POWER/TX/RX and SENSOR from left to right as below. POWER is the battery level, normally when you turn on the device, 4 led lights will be green which means the battery level is 100%.
- Page 6 4. Connect to LoRaWAN Network SL200 water leak sensor is based on standard LoRaWAN Class A, so you can connect to any LoRaWAN network through OTAA. On the back of device, you can find information as below, with this information, you can connect to any LoRaWAN server.
- Page 7 Here below take TTN as an example about how to connect the device to TTN server: Sensor LoRaWAN SL200CN SL200EU SL200US SL200AS And this (http://doc.rejeee.com/web/#/29?page_id=212) is the data decoder for TTN platform, just copy the information as below: 5. Wireless LoraWAN Sensor Data Format Picture as below, FRMPayload is sensor data. 6. Sensor Data Definition...
- Page 8 6.1 Device Information(0x00) Type Value Value Value 1 Byte 3 bit 5bit 1 Byte 0x00 Version Battery Level Reserve 6.1 Water leak sensor(0x09) Type Value Comment 1 Byte 1 Byte 1-byte unsinged integer. The sepecific meaning depends on the item. 0x09 switch state Gennerally, a single bit represents...
