Summary of Contents for Colordreamer DP250

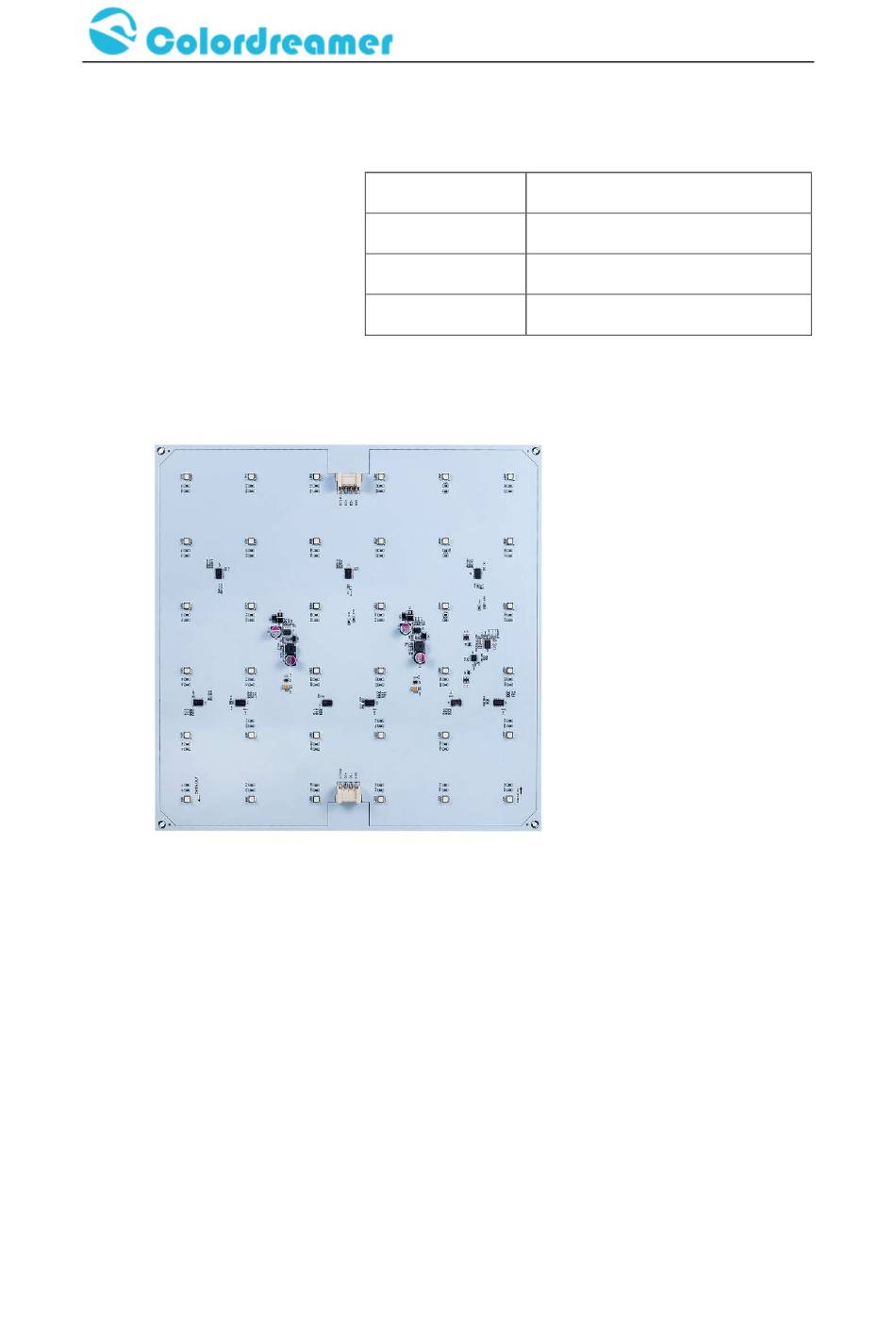

- Page 1 DMX Pixel Board-DP250/DP300 Static White/RGB Client Project Order Code www.colordreamer.com Email:info@colordreamer.com Version:V1.0 May 2021...
-
Page 2: Safety Recommendations And Warnings
For best color mixing results, ensure the boards have the same orientation. Product Overview The Colordreamer DP250/DP300 LED Pixel Board features 36 individually controllable SMD LEDs on a 6 X 6 matrix with 41.66mm or 50mm pitch. Size 250X250mm or 300X300mm available. -
Page 3: Product Specification
Input Voltage 15-24VDC 15-24VDC Power Consumption Control Protocols DMX512 Control DMX512 Control PWM Frequency 1KHz@16-Bit Grayscale/256KHz@8-Bit Grayscale Addressing Auto Addressing or Manual Addressing with Colordreamer Addressing Tool Physical Material FR4 PCB Board Finish Color Black/White Optics Open Dimensions (LXWxH) 250*250mm... - Page 4 Dimension 250X250mm 300*300mm www.colordreamer.com Email:info@colordreamer.com Version:V1.0 May 2021...
-
Page 5: System Diagram
System Diagram Option1: Option2: The wiring diagram shows only typical connection. Actual wiring depends on production configuration and installation on site. www.colordreamer.com Email:info@colordreamer.com Version:V1.0 May 2021... - Page 6 Max Daisy Chain Length with Signal from Junction Box to First Fitting Power Feed 8W per dot 20meter 4pcs Values are based on end to end spacing. Extended cables or jumper cables will affect loading. www.colordreamer.com Email:info@colordreamer.com Version:V1.0 May 2021...
- Page 7 67E4F5XM-5M 5M Long 4PIN IP67 Female Connector to XLR 5PIN Male Connector to Cable XLR Cable Power Injector 67T4M4F2M IP67 Connector,15CM 4PIN Male for LED;15CM 4PIN Y Cable Female for LED;15CM 2PIN Male for Power www.colordreamer.com Email:info@colordreamer.com Version:V1.0 May 2021...
