Samuel Lawrence 210-S076-030 Assembly Instructions

PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZA
ITEM / NO D'ARTICLE / ARTICULO NO.: 210 - S076 - 030

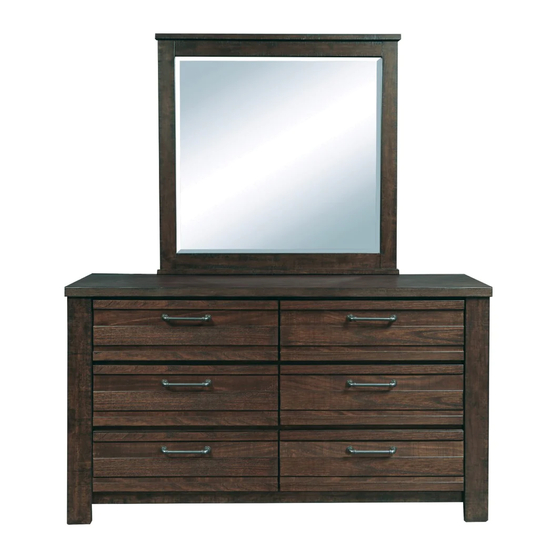

DESCRIPTION / DESCRIPCION : LANDSCAPE MIRROR / MIROIR HORIZONTAL / ESPEJO HORIZONTAL
WARNING
Serious or fatal crushing injuries can occur from
furniture tip-over. To help prevent
tip-over:
Install tipover restraint provided.
Place heaviest items in the lowest drawers.
Do not set TV's or other heavy objects on top of this
product, unless the product is specifically designed to
accommodate them.
Never allow children to climb or hang on drawers,
doors, or shelves.
Never open more than one drawer at a time.
(OR)
Do not defeat or remove the drawer interlock system.
Use of tip-over restraints may only reduce, but
not eliminate, the risk of tip-over.
This is a permanent label. Do not remove!
Page 1 of 3
A
x1 Dresser
x1 Commode
x1 Tocador
1
*
x8 Allen bolt M6*35mm
x8 Vis à tête creuse hexagonale M6*35mm
x8 Perno Allen M6*35mm
3
*
x8 Lock washer Ø11*2mm
x8 Rondelle de blocage Ø11*2mm
x8 Arandela de Seguridad Ø11*2mm
Made ln vietnam / Fabríqué au Vietnam / Hecho en Vietnam
B
x1 Mirror
x1 Miroir
x1 Espejo
2
x8 Flat washer Ø16*2mm
x8 Rondelle plate Ø16*2mm
x8 Arandela plana Ø16*2mm
4
*
x1 Allen key 4mm
x1Clé hexagonale 4mm
x1Llave Allen 4mm
*Replaceable Part
C
*
x2 Mirror Support
x2 Supporte de miroir
x2 Soporte del espejo
*
