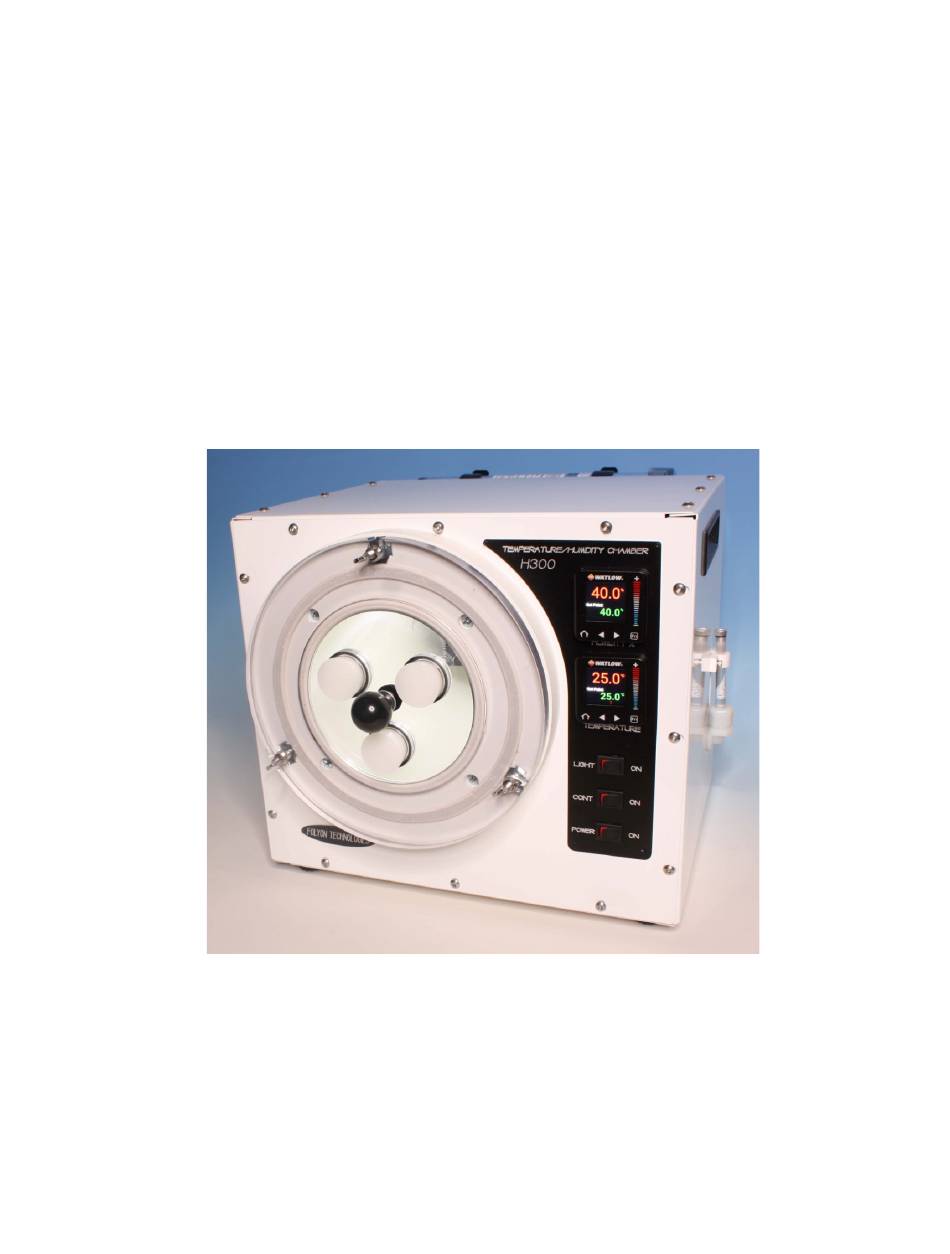

Model H300P
Temperature Humidity Chamber
with Watlow PM PLUS Controllers
Operation and User's Manual
Folyon Technologies Inc.
1358 Hooper Ave, #104
Toms River, NJ 08753, USA
+1-732-903-4425
www.folyon.com
info@folyon.com
Made in the U.S.A
Co;yright © 2012-2020 Folyon Technologies Inc.
October 2020 Rev PMP_D

Advertisement

Table of Contents
loading

Related Manuals for Folyon H300P

Summary of Contents for Folyon H300P

  • Page 1 Temperature Humidity Chamber with Watlow PM PLUS Controllers Operation and User’s Manual Folyon Technologies Inc. 1358 Hooper Ave, #104 Toms River, NJ 08753, USA +1-732-903-4425 www.folyon.com info@folyon.com Made in the U.S.A Co;yright © 2012-2020 Folyon Technologies Inc. October 2020 Rev PMP_D...

  • Page 2: Safety Instructions

    Introduction The H300P is a simple to use, versatile temperature / humidity chamber. Its super compact design allows it to be placed on any table top. Its solid state design means low noise and low power operation. The solid state design also removes the need for user maintenance other that refilling water and desiccant.

  • Page 3: Operation Safety Notices

    Improper modifications to these setup values can result in erratic performance and unreliable operation. Do not attempt to modify the setup values, unless you thoroughly understand what you are doing. If there is any doubt, please contact the Folyon Technologies before proceeding.

  • Page 4: Installation Location

    Make sure the unplug the chamber before filling or emptying water. Setup Before the H300P can be used, it needs to have sufficient water and desiccant for proper operation. The chamber comes from the factory with the desiccant preloaded, but without any water.

  • Page 5: Desiccant Filling And Replacement

    The desiccant is the drying agent of the H300P chamber. The recommended desiccant is the Regular Drierite 8 mesh desiccant. The H300P comes preloaded with fresh desiccant. When the desiccant is fresh, it is blue. As the desiccant gets used up, it turns red. When the desiccant is all red, it should be replaced.
  • Page 6 Figure 2: Desiccant Reservoir Pulled From H300P • Unscrew the reservoir plug and remove the spring, dust filter and metal mesh. • Remove the used desiccant. The used desiccant can be regenerated by heating it above 395°F (200°C) for one to two hours.

  • Page 7: Principles Of Operation

    Principles of Operation The H300P temperature humidity chamber controls the humidity by circulating the air inside the chamber through the desiccant to decrease humidity, or through a water vapor chamber to increase humidity. Air entering the chamber from the desiccant is very close to 0%RH. Air entering the chamber from the vapor chamber is close to 100%RH.

  • Page 8: Chamber Door

    However, when trying to achieve high humidity (above 75%RH) at high temperatures (above 90°F, 32°C), you may have to wait for the water in the reservoir to heat up. Note that the water in the reservoir will warm up whenever the H300P is ON, even if the CONT switch is turned to OFF.
  • Page 9 Watlow PM PLUS Controllers The H300P unit uses the Watlow PM PLUS controllers. The controller User’s Manual has been provided with the H300P chamber. In general you should not need to reference this manual, unless you are setting up a profile.

  • Page 10: Changing Temperature Units

    Press the Forward Arrow key once. Control Mode 1 should be highlighted. • • Press the Forward Arrow key once. • Press the + or – keys until Off is highlighted. Page 10 H300P Temperature Humidity Chamber...

  • Page 11: Setup Page Parameters

    Sensor Type RTD 100 Ohm Milliamps RTD Leads Units Relative Humidity Scale Low 4.00 Scale High 20.00 Range Low Range High 100.0 Process Error Enable Filter Input Error Latching Display Precision Tenths Tenths Calibration Offset Page 11 H300P Temperature Humidity Chamber...

  • Page 12: Linearization Menu

    No changes to controller default parameters. Control Loop Menu Most of the parameters in the Control Loop Menu are specific to each H300P chamber. Each H300P chamber is supplied with its own set Control Loop Menu settings. These settings are included in a document on the flash drive that comes with each chamber.

  • Page 13: Global Menu

    Press the – key until Restore Setting From is highlighted. • Press the Forward Arrow key once. • Press the – key until User Set 1 is highlighted. • Press the Forward Arrow key to restore factory defaults. Page 13 H300P Temperature Humidity Chamber...

  • Page 14: Troubleshooting

    Humidity does not decrease 1. Desiccant is used up (red). Make sure some of the desiccant in the fast enough desiccant reservoir is blue. 2. Condensation in the chamber. 3. The chamber door is not properly sealed. Page 14 H300P Temperature Humidity Chamber...

  • Page 15: Specifications

    3 openings, 1.25” (3.1 cm) diameter each Weight 30 lb (13.6 Kg), fully loaded with water and desiccant Desiccant Capacity 1 lb (454 g) Water Capacity 10 oz (290 ml) Calibration certificate against an NIST certified instrument is provided. Page 15 H300P Temperature Humidity Chamber...
  • Page 16 Folyon will repair or replace any defective part, not excluded in this limited warranty, for a period of ONE YEAR from the date of invoice. Folyon reserves the right to require the Equipment be returned, freight prepaid, to Folyon’s factory or to inspect any defective part at the Purchaser’s site.
